Lay shaft

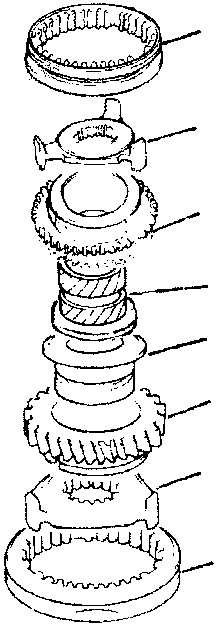

LAY SHAFT

1. 5th speed engagement sliding sleeve
2. Hub for 5th speed engagement sliding sleeve
3. 5th speed driven gear with synchronizer
4. Bush for 5th speed gear
5. Bush for 4th speed gear
6. 4th speed driven gear with synchronyzer
7. Hub for 3rd - 4th speed engagement sliding sleeve
8. 3rd - 4th speed engagement sliding sleeve
9. 3rd speed driven gear with synchronizer
10. Bush for 3rd speed gear
11. Bush for 2nd speed gear
12. 2nd speed diven gear
13. 2nd speed synchronizer ring
14. 1st - 2nd speed engagement sliding sleeve and reverse gear (external part)
15. Hub with plates for 1st - 2nd speed engagement sliding sleeve
16. 1st speed synchronizer ring
17. 1st speed driven gear

18. Bush for 1st speed gear
19. Driven shaft pinion for crown wheel

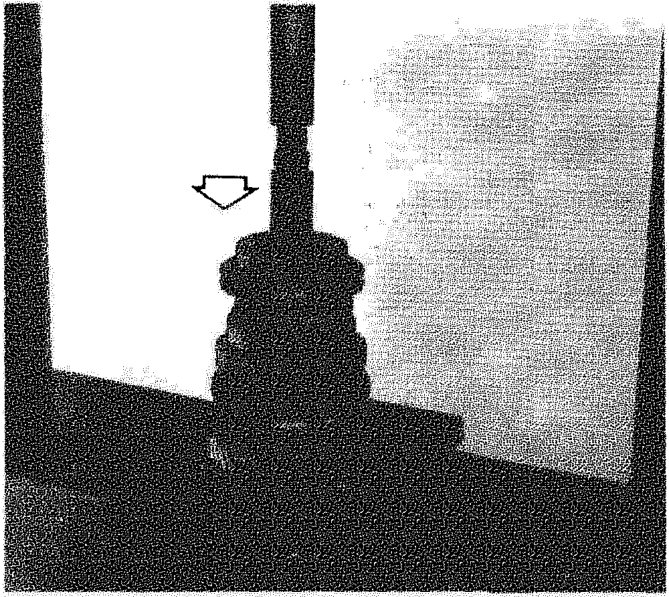

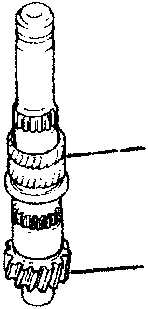

Dismantling lay shaft from gear cluster and synchronizer on the press

GEARS - BUSHES

The teeth on the gears and the synchronizer engagement teeth should not show any signs of notches excessive wear.

HUBS - SLEEVES

Check that the hubs and relative sliding sleeves for 1st - 2nd, 3rd - 4th and 5th speeds have no marks whatsoever and that they slide easily without excessive clearance. The internal teeth of the sleeves should not shown signs of wear or they must be replaced.
