Removing and refitting three-lobe joint

NOTE If there are any anomalies in the three-lobe joint it must be replaced

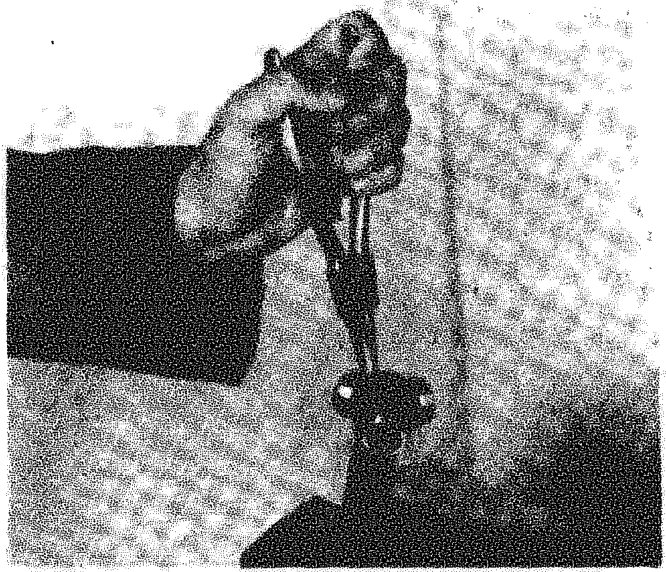

A hand using a tool to remove or adjust a three-lobe joint on a drive shaft

Removing constant velocity joint boot

It is advisable to replace the boot each time it is removed

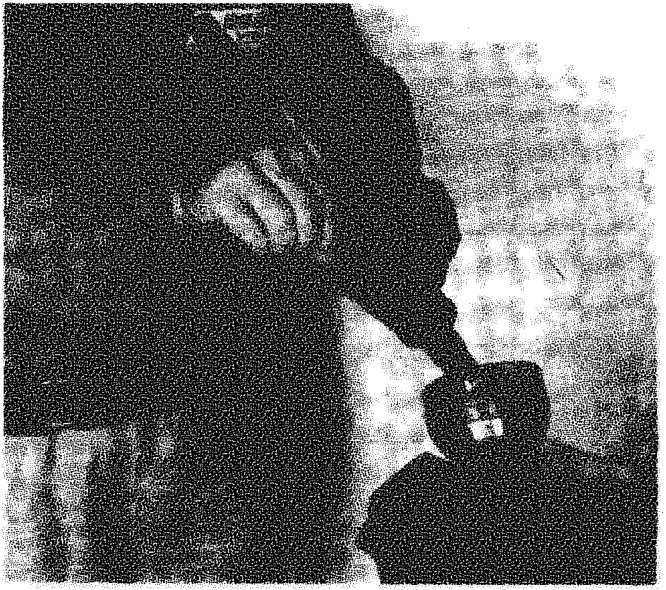

A close-up of hands working on a constant velocity joint boot on a drive shaft

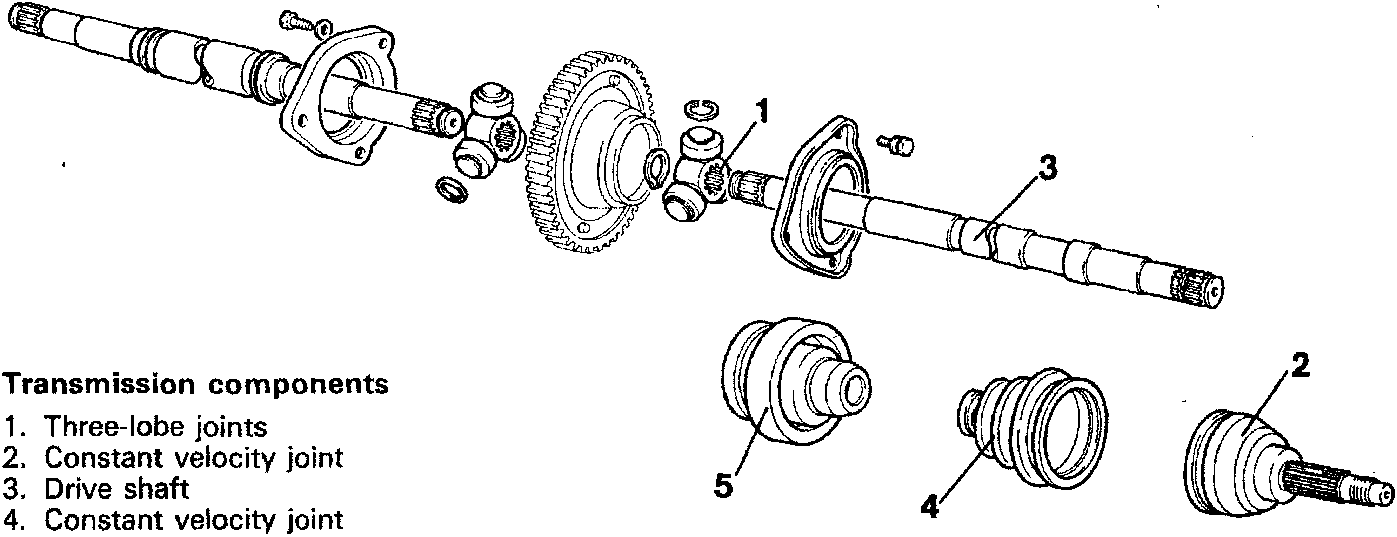

An exploded diagram showing the transmission components including joints, drive shaft, and boots

Transmission components

  1. Three-lobe joints
  2. Constant velocity joint
  3. Drive shaft
  4. Constant velocity joint
  5. Differential casing oil seal boot
