Order of operations

ORDER OF OPERATIONS

Position the vehicle on the lift in such a way that it is possible to remove the gearbox-differential unit from the lower section of the engine compartment, then:

Proceed as follows:

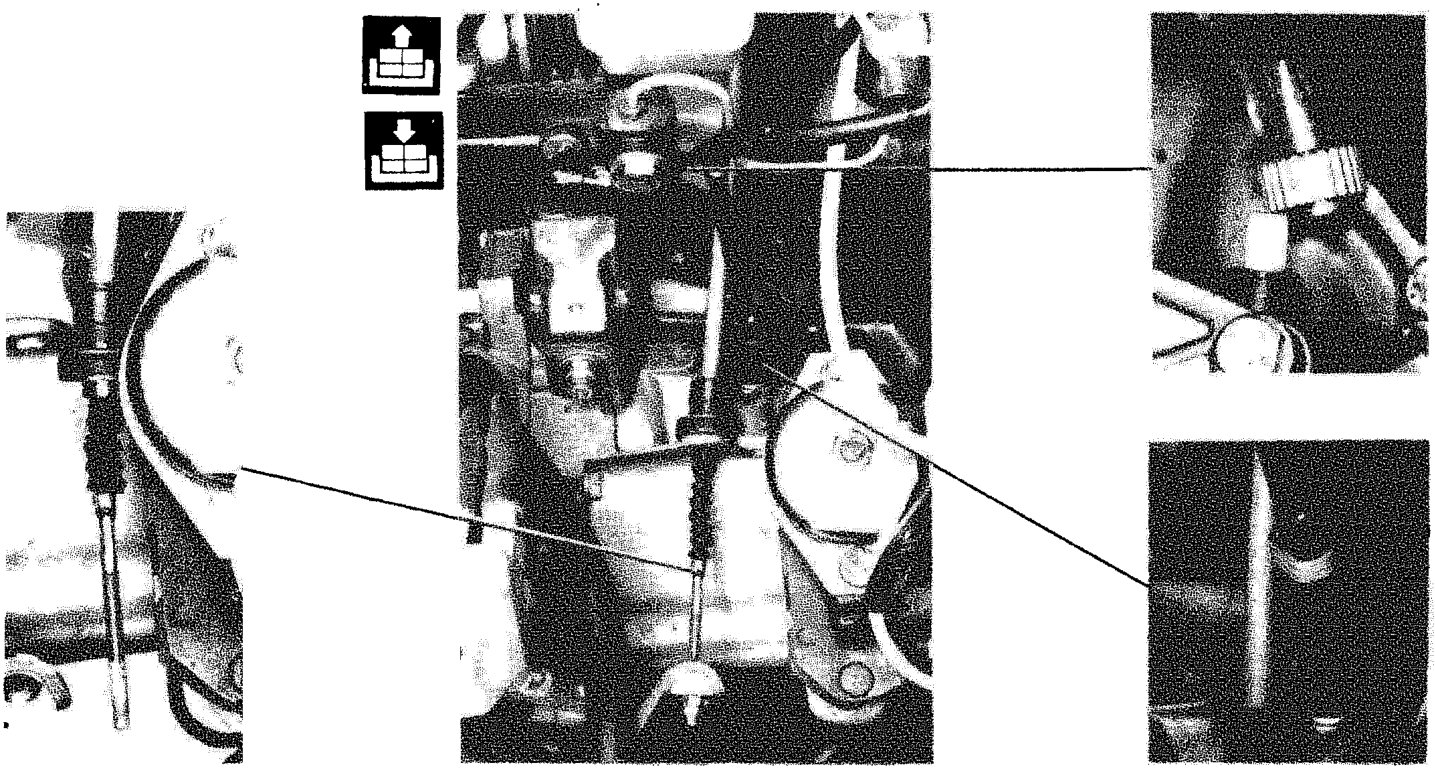

• Remove the items illustrated below:

• Also remove the starter motor from the bell housing and position it in the engine compartment

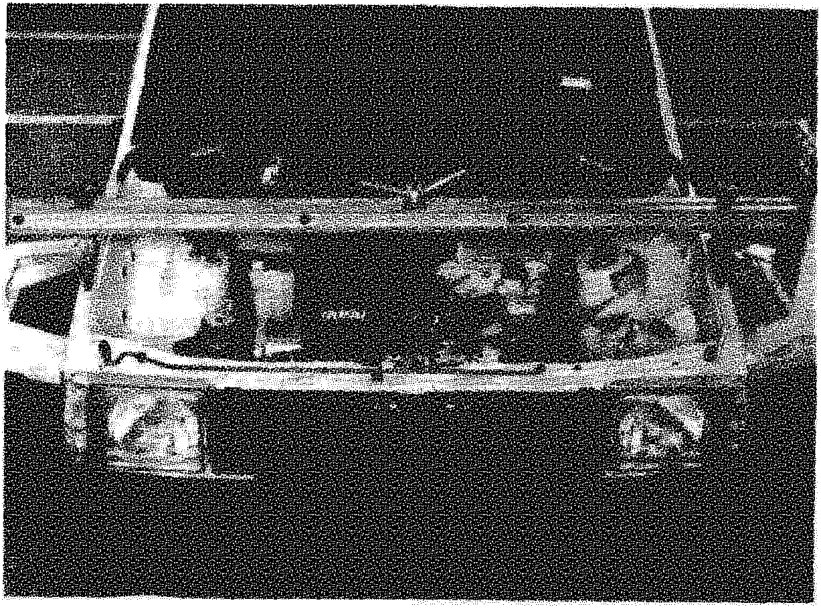

– Position cross member 1870595000 to support the engine
– remove the gearbox-differential, gearbox side support bracket
– remove the front left wheel.

Raise the vehicle and carry out the following operations from below:

• drain the gearbox oil using spanner 1850113000
