Order of operations (page 3 of 4)

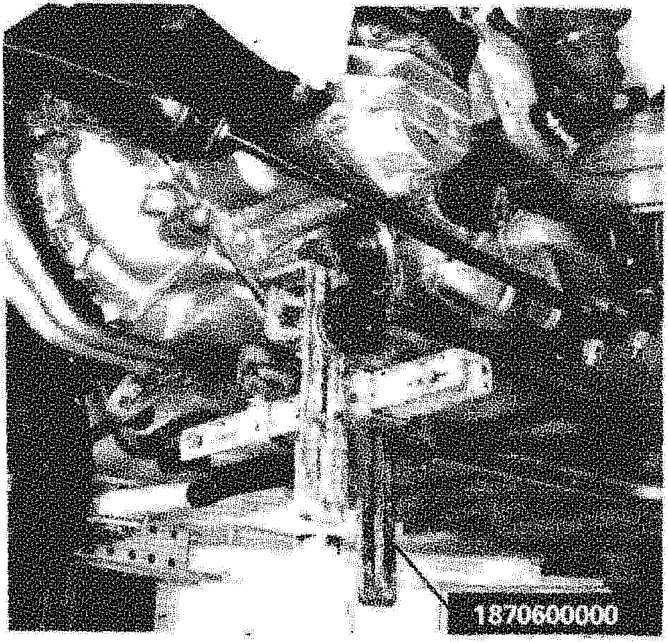

• have gearbox-differential support 1870600000 ready and have the hydraulic jack in position
• undo the bolts fixing the gearbox-differential unit to the engine.
• Move the gearbox-differential assembly in such a way that it becomes free of centering pins on the engine and the clutch shaft comes out of the driven disc.
• lower the hydraulic jack and remove the gearbox-differential assembly.

Clutch pedal height

NOTE To refit the gearbox-differential unit simply reverse the order of the operations described for its removal
