33 Braking systemBrake drums
BRAKE DRUMS

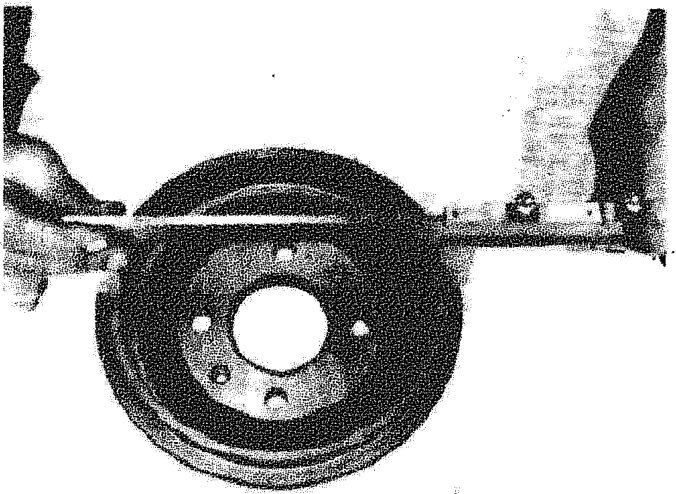

Checking and measuring brake drums
If there are deep grooves or uneven wear in the brake drums, it is necessary to reface them. The maximum allowable diameter oversize for brake drums is 0.8 mm.
BRAKE SHOES

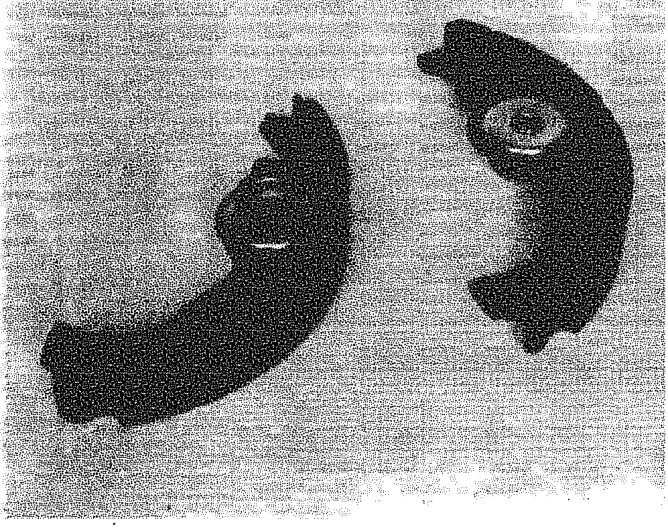

Checking brake shoes and self-adjusting device
The minimum allowable thickness for brake shoes is 1.5 mm.
BLEEDING

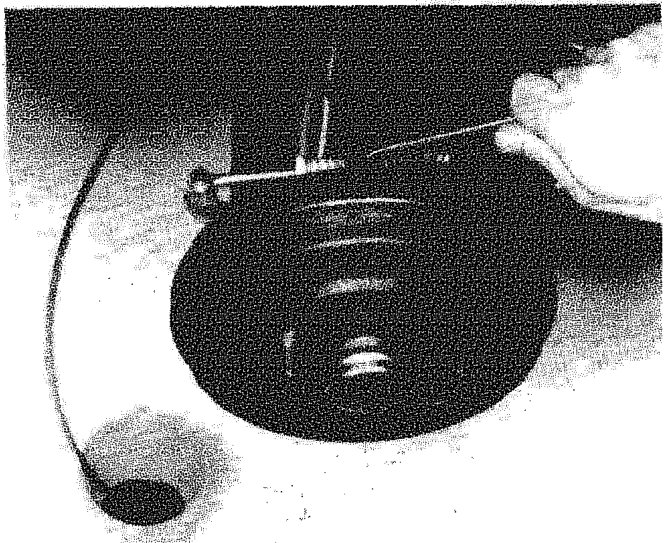

Bleeding rear brakes
It is not advisable to reuse the fluid collected. The reservoir should be topped up with new brake fluid.
