Removing-refitting brake pipes
- Make
- Fiat
- Model
- Panda (141) Factory Service Manual
- Year
- 1986–2003
- Section
- Rear brakes › Removing-refitting brake pipes
33 Braking systemRemoving-refitting brake pipes

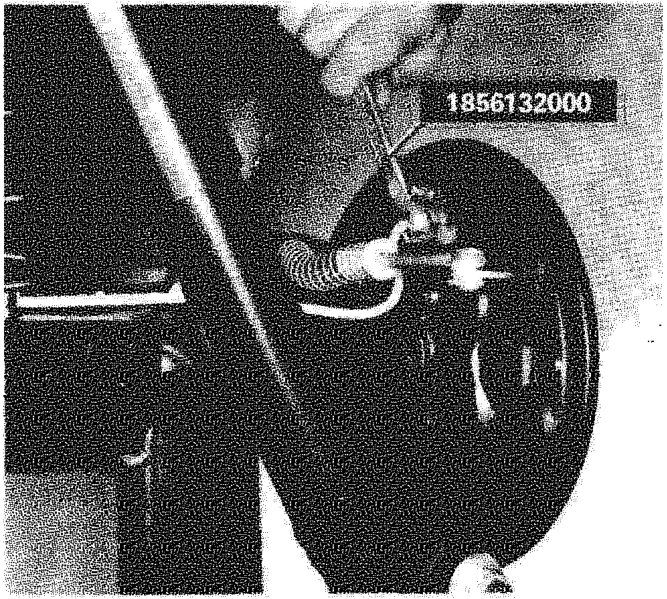

Removing-refitting brake pipes

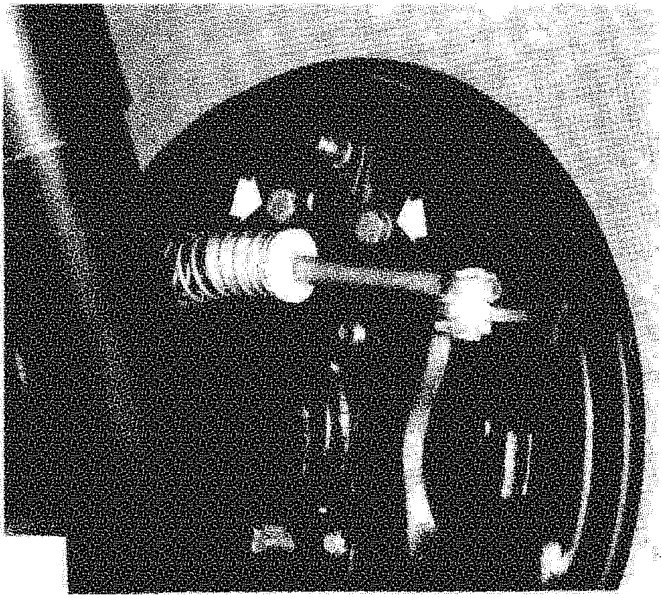

Removing-refitting wheel cylinder
Bleed hydraulic circuit

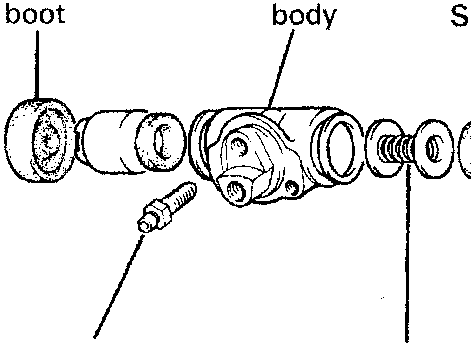

WHEEL CYLINDER
- Protective boot
- Cylinder body
- Seal
- Piston
- Bleed screw
- Spring and washer
Checking wheel cylinder components
When overhauling, always replace the seals and protective boots; if there appears to be anything wrong with the cylinder body or the pistons, replace the whole unit.
Ensure that the air bleed screw is not obstructed.
