33 Braking systemRemoving-refitting · page 2 of 2

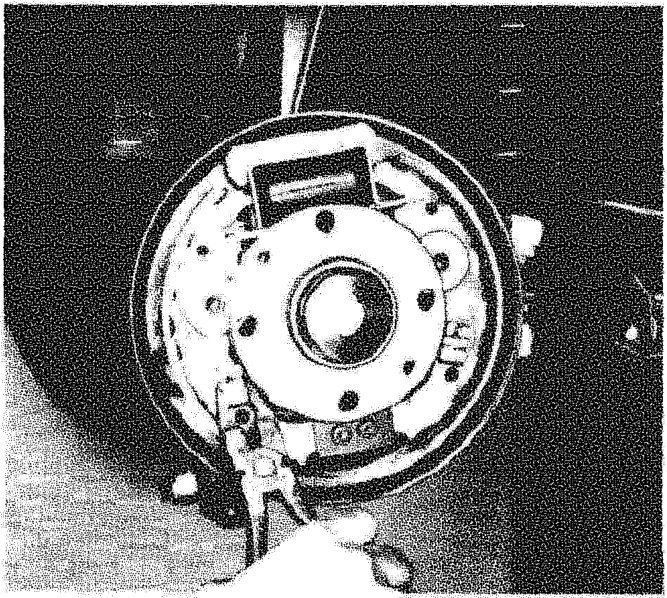

Removing-refitting shoe retaining pin

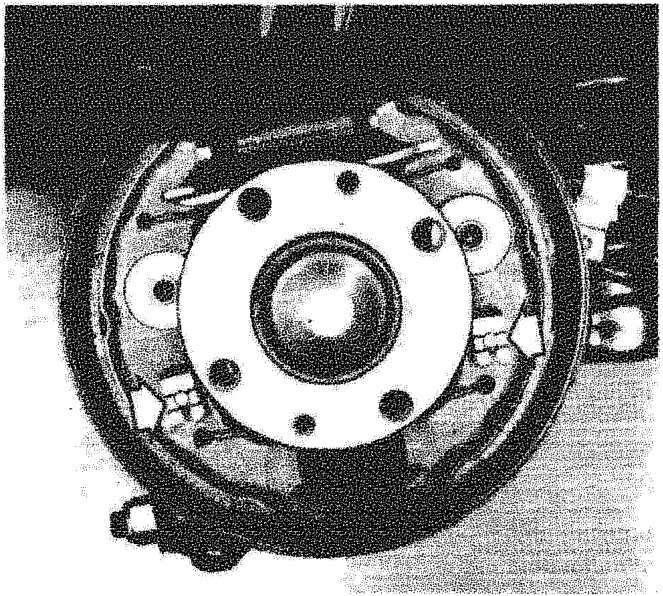

Positioning self-adjusting device

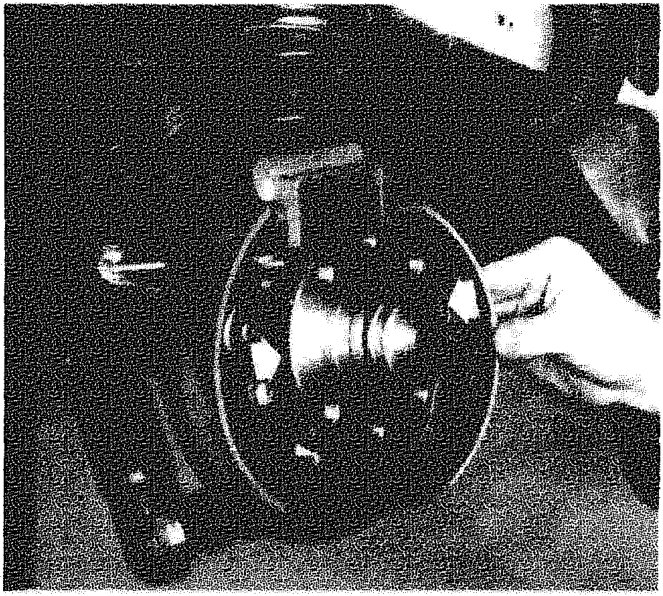

Removing-refitting brake shoes
The millings on the hub shown by the arrows must be pointing towards the self-adjusting device to allow the brake shoe to be removed and refitted.
