33 Braking systemRemoving-refitting · page 1 of 2

REMOVING-REFITTING

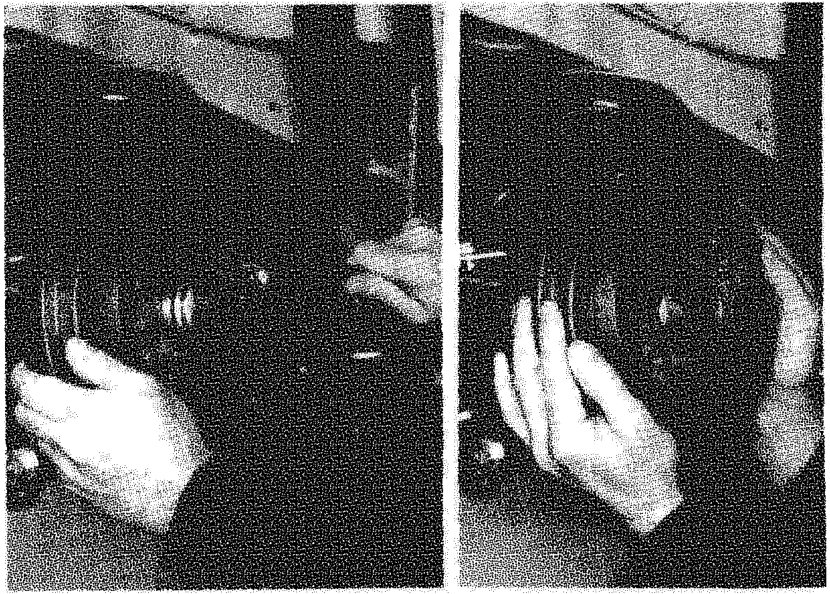

Two hands removing a brake drum from the rear wheel hub assembly

Removing-refitting brake drum

Before refitting the brake drum, remove any possible traces of rust from the contact surfaces.

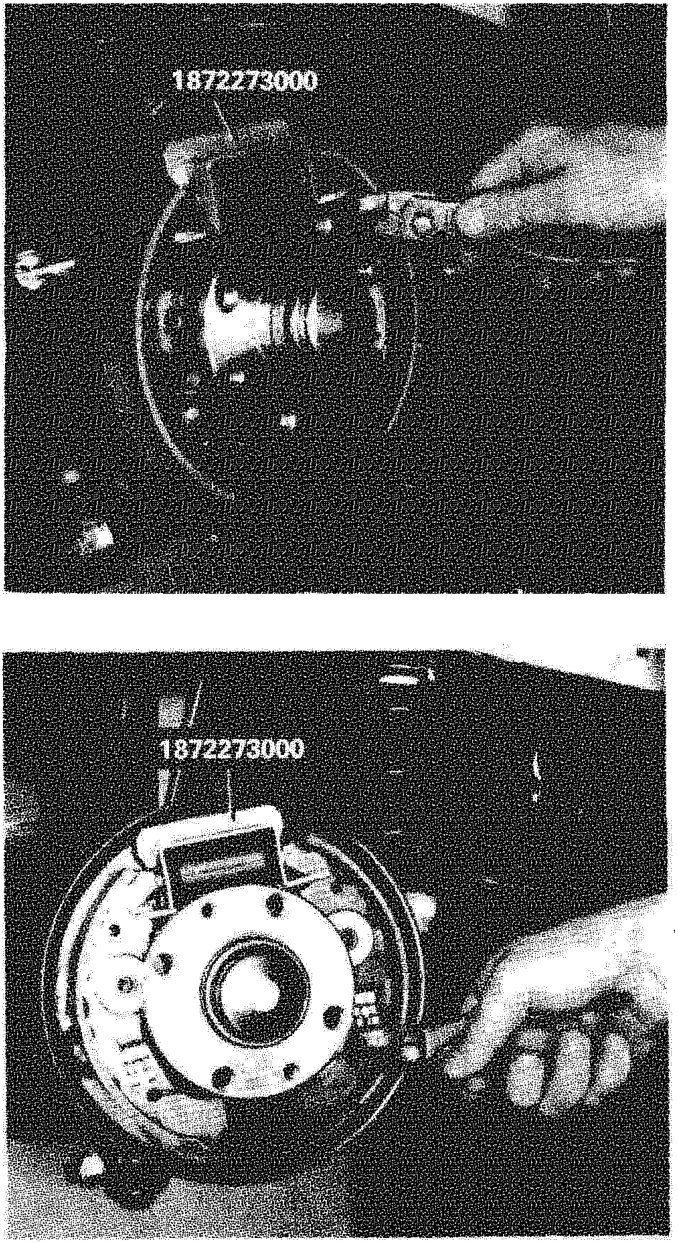

A hand using a tool to remove the upper return spring from the brake shoe assembly

Removing-refitting brake shoe upper return spring

Removing - refitting brake shoe lower return spring

The upper return spring is longer than the lower one.
