41 SteeringChecking steering column components

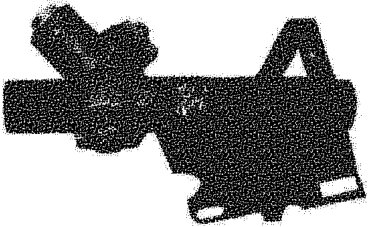

Upper steering shaft

Mounting for upper steering shaft

Rubber bushes

Lower steering shaft with universal joints

Checking steering column components

Check that clearance between the upper shaft and the relative rubber bushes is not too large and that the shaft is not off centre. Check that there is not too much clearance in the universal joints. If anything seems to be wrong, replace the affected components.

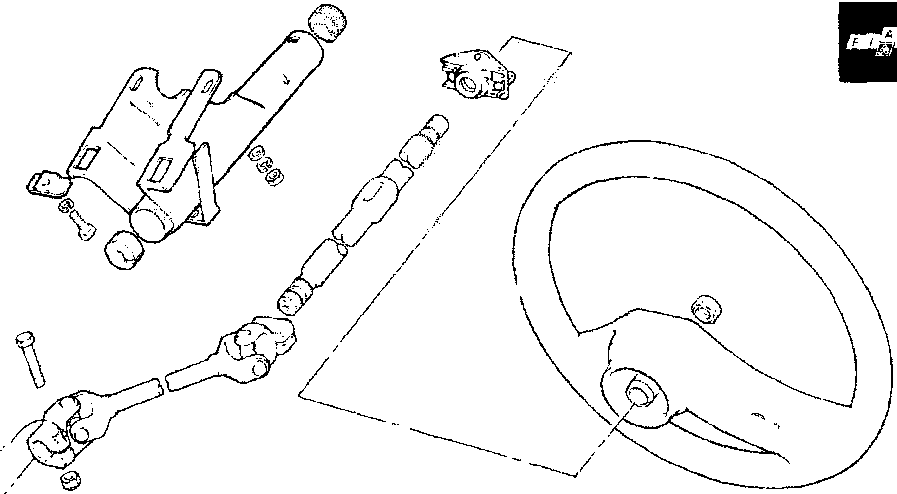

Steering column components available as spares
