41 SteeringSteering gear

Steering gear

Removing-refitting lower shaft from steering box pinion

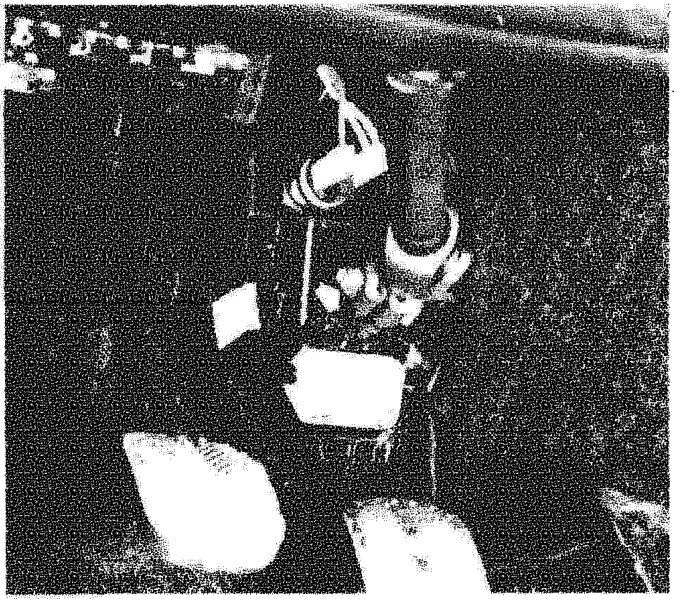

View of the lower steering shaft connected to the steering box pinion area under the vehicle dashboard.

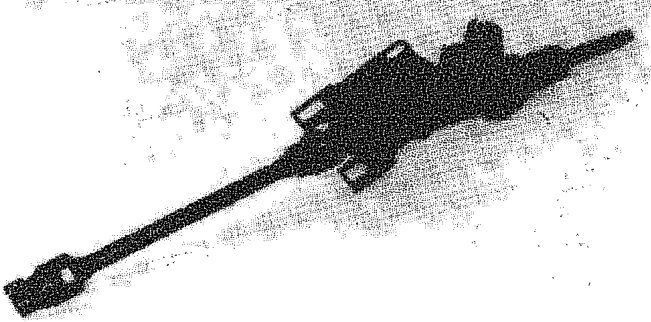

The complete steering gear assembly unit resting on a flat surface.

Steering gear assembly

Removing-refitting upper steering control shaft and bushes from mounting at the bench

Before releasing the upper shaft and relative bushes from the mounting, remove the staking on the lower shaft side of the mounting.

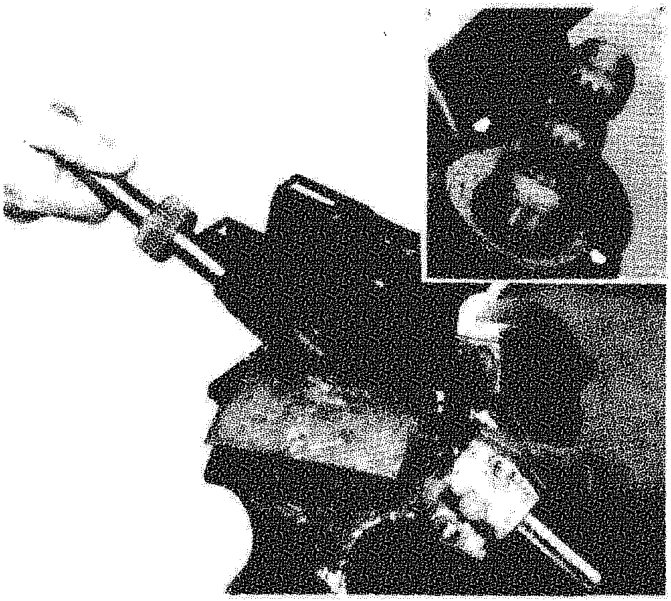

A hand using a tool to work on the upper steering control shaft and bushes secured in a bench mounting; an inset shows a close-up detail of the component.
