41 SteeringSteering gear

Steering gear

Removing-refitting steering column switch unit

Illustrates removal of engine mount bolts from vehicle chassis

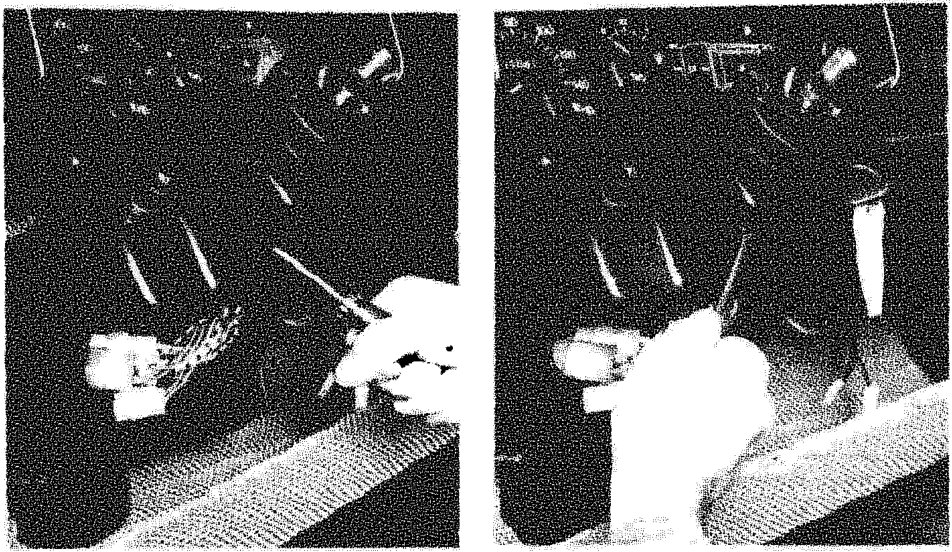

Hands using a tool to remove the steering column switch unit from under the dashboard

Removing-refitting upper shield

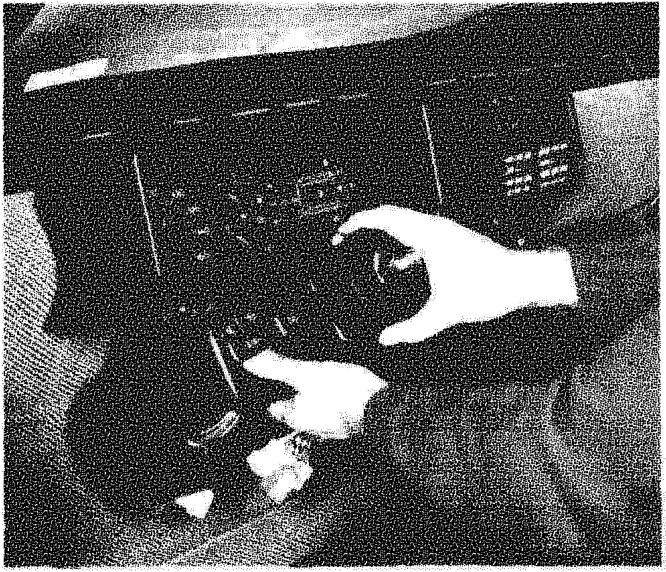

A hand removing the upper shield from the steering column area

Removing-refitting radio console

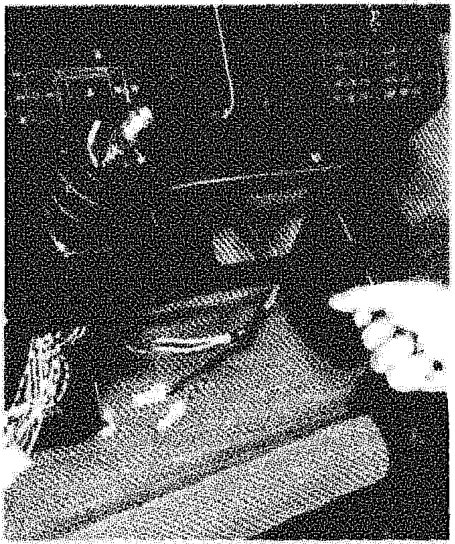

A hand removing the radio console from the dashboard

Removing-refitting upper shaft shield and steering column switch unit

NOTE Before commencing the removal operation, disconnect the choke cable from the carburettor.

Removing-refitting upper shaft shield from bodyshell
