Introduction - CRANKCASE SUMP AND COVERS

1.1, 1.2 8v

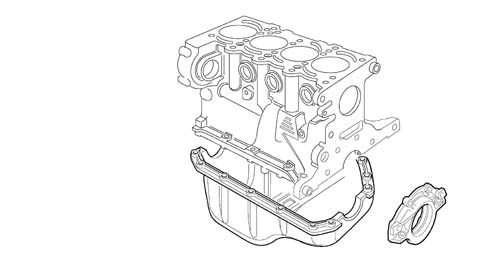

The sump has the task of housing the engine lubrication oil; it is made from pressed steel and includes the port and plug for draining the oil. The seal with the crankcase is ensured by a bead of silicon sealant.

The timing side and flywheel side covers guarantee the crankshaft seal and are fixed to the crankcase by bolts.
