Combi
- Make
- Fiat
- Model
- Scudo Factory Service Manual
- Year
- 1996–2006
- Section
- Introduction (1868 D) › Combi
00 Introduction and technical dataCombi

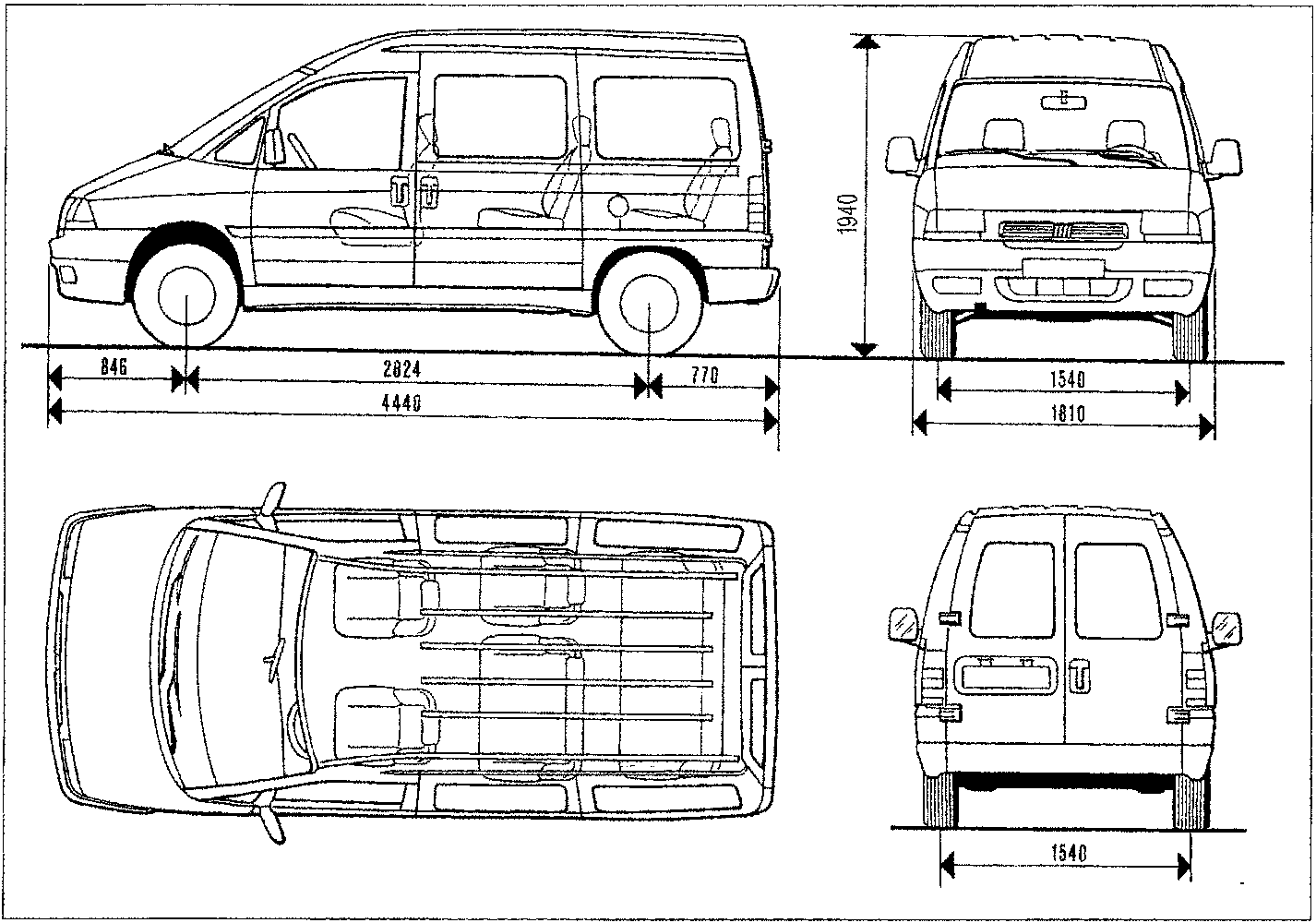

COMBI
P4B05BA01
| 1868 D | ||
|---|---|---|
| Vehicle kerb weight (with supplies, spare wheel, tools and accessories) : |
Kg | 1476 |
| Carrying capacity including the driver - 5p + 354 - 6p + 279 - 7p + 204 - 8p + 129 - 9p + 54 |
kg | 729 |
| Maximum permissible loads: - front axle: - rear axle: - total: |
kg kg kg |
1230 1230 2205 |
| Maximum load on the roof | Kg | - |
| Towable weight with braking system | Kg | 1100 |
| Towable weight without braking system | Kg | 750 |
| Max. load on the ball (trailer with braking system) | Kg | 60 |

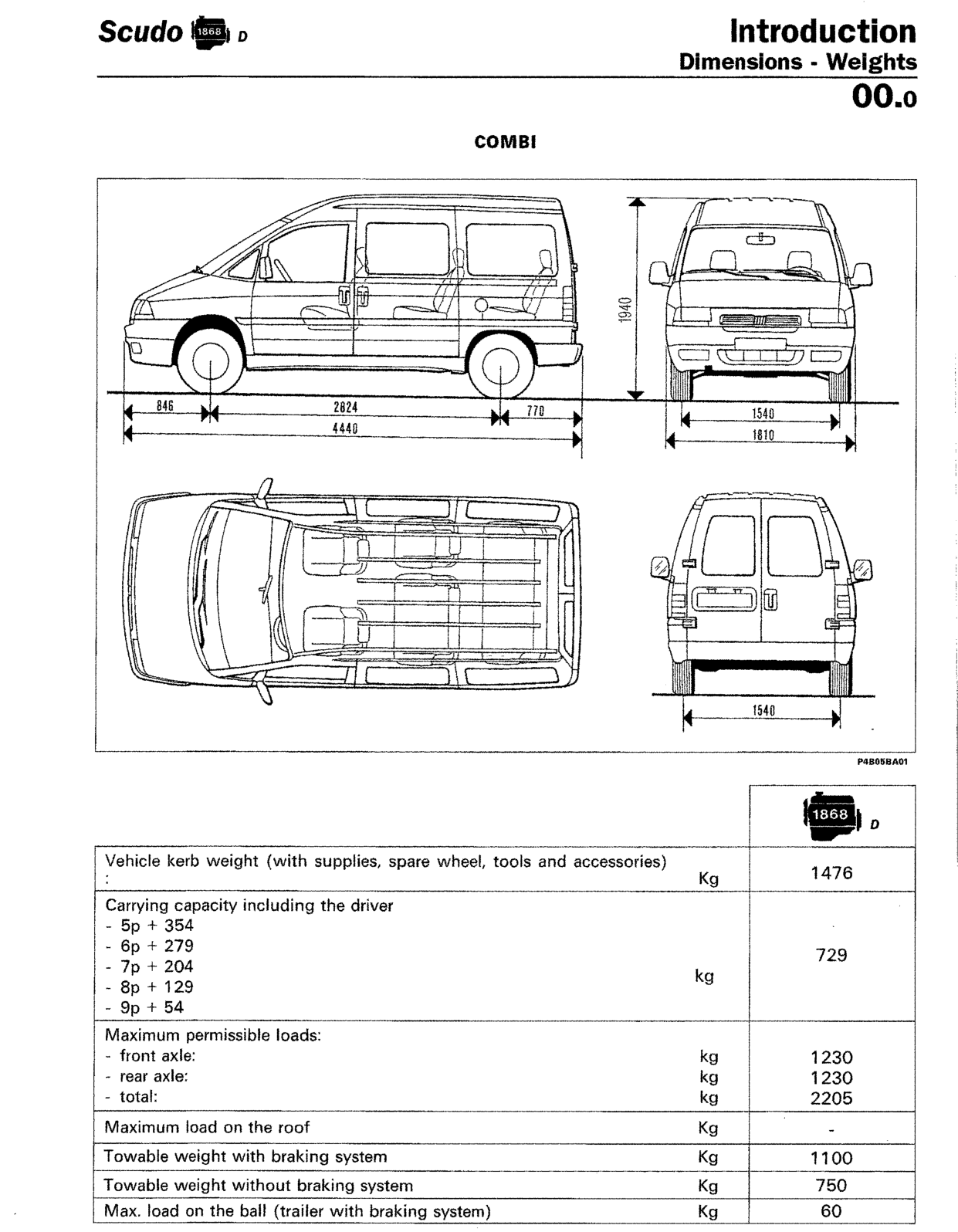

Original page
