Cruiser with floor
- Make
- Fiat
- Model
- Scudo Factory Service Manual
- Year
- 1996–2006
- Section
- Introduction (1868 D) › Cruiser with floor
00 Introduction and technical dataCruiser with floor · page 1 of 4

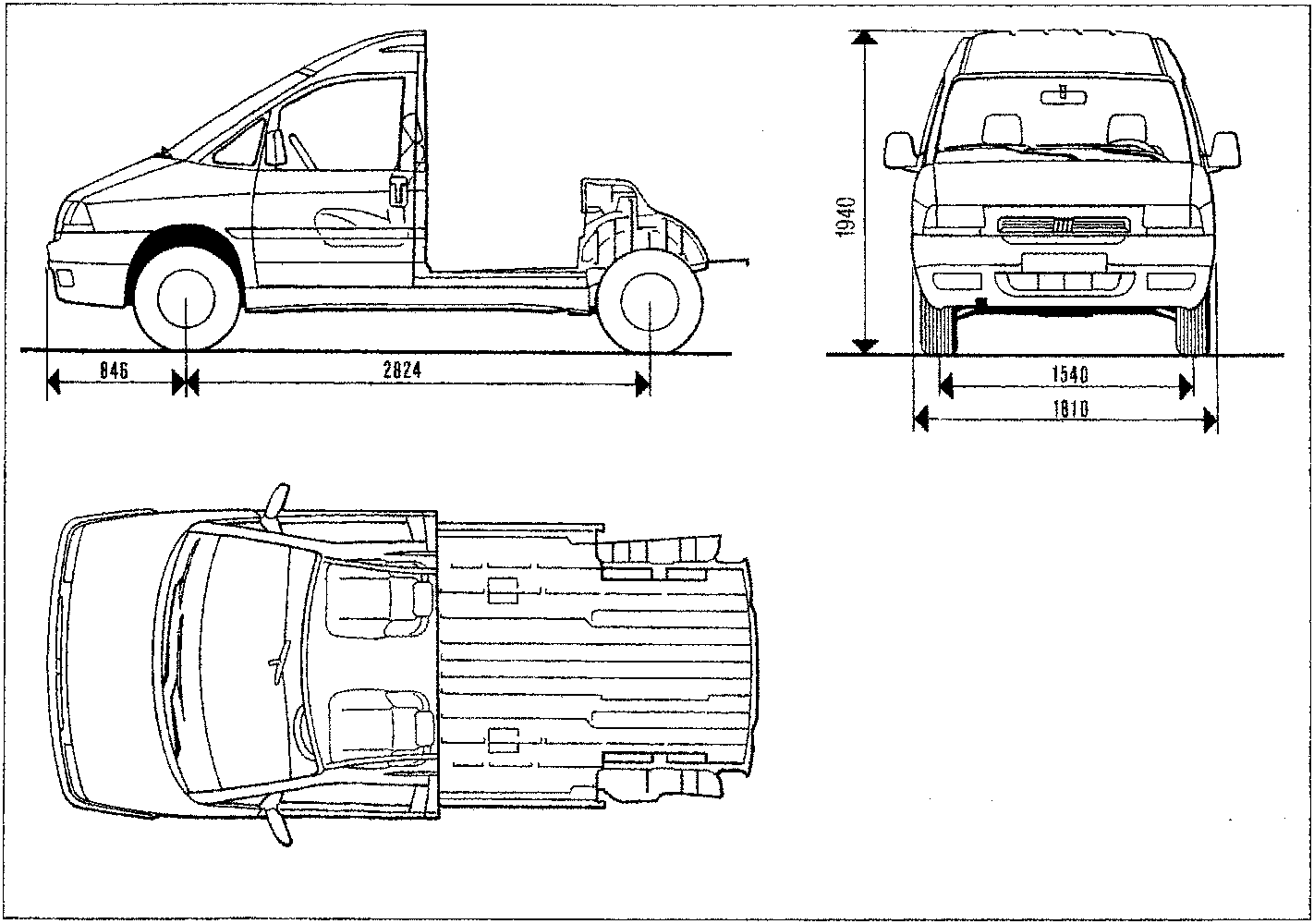

CRUISER WITH FLOOR
P4B06BA01
| 1868 D | |
|---|---|
| Vehicle kerb weight (with supplies, spare wheel, tools and accessories): | Kg 1215 |
| Carrying capacity including the driver: | Kg - |
| Maximum permissible load: - front axle: - rear axle: - total: |
Kg 1215 Kg 1230 Kg 2205 |
| Maximum loads on the roof | Kg - |
| Towable weight with braking system | Kg 1100 |
| Towable weight without braking system | Kg - |
| Max. load on the ball (trailer with braking system) | Kg - |

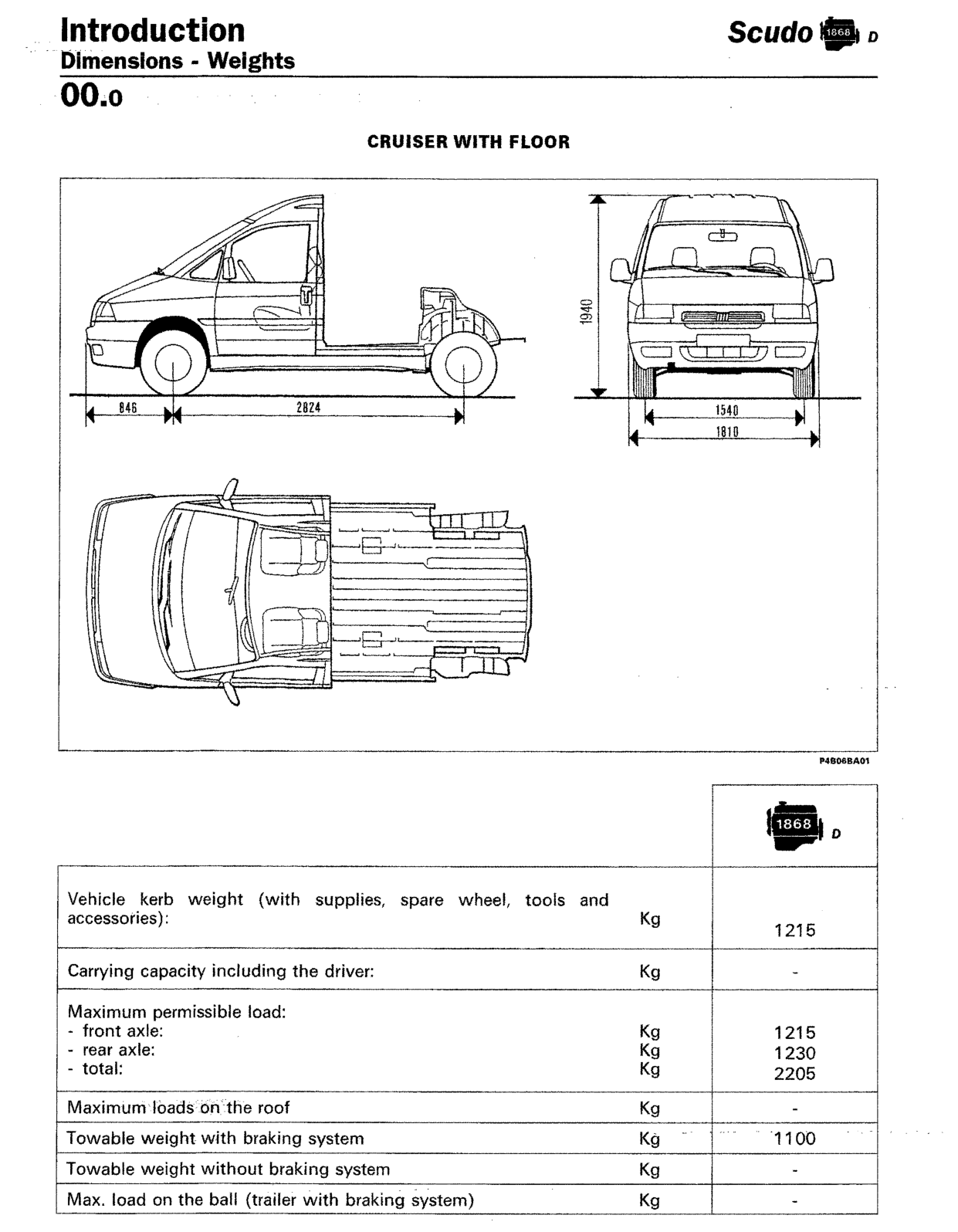

Original page
