00 Introduction and technical dataPlated/glazed

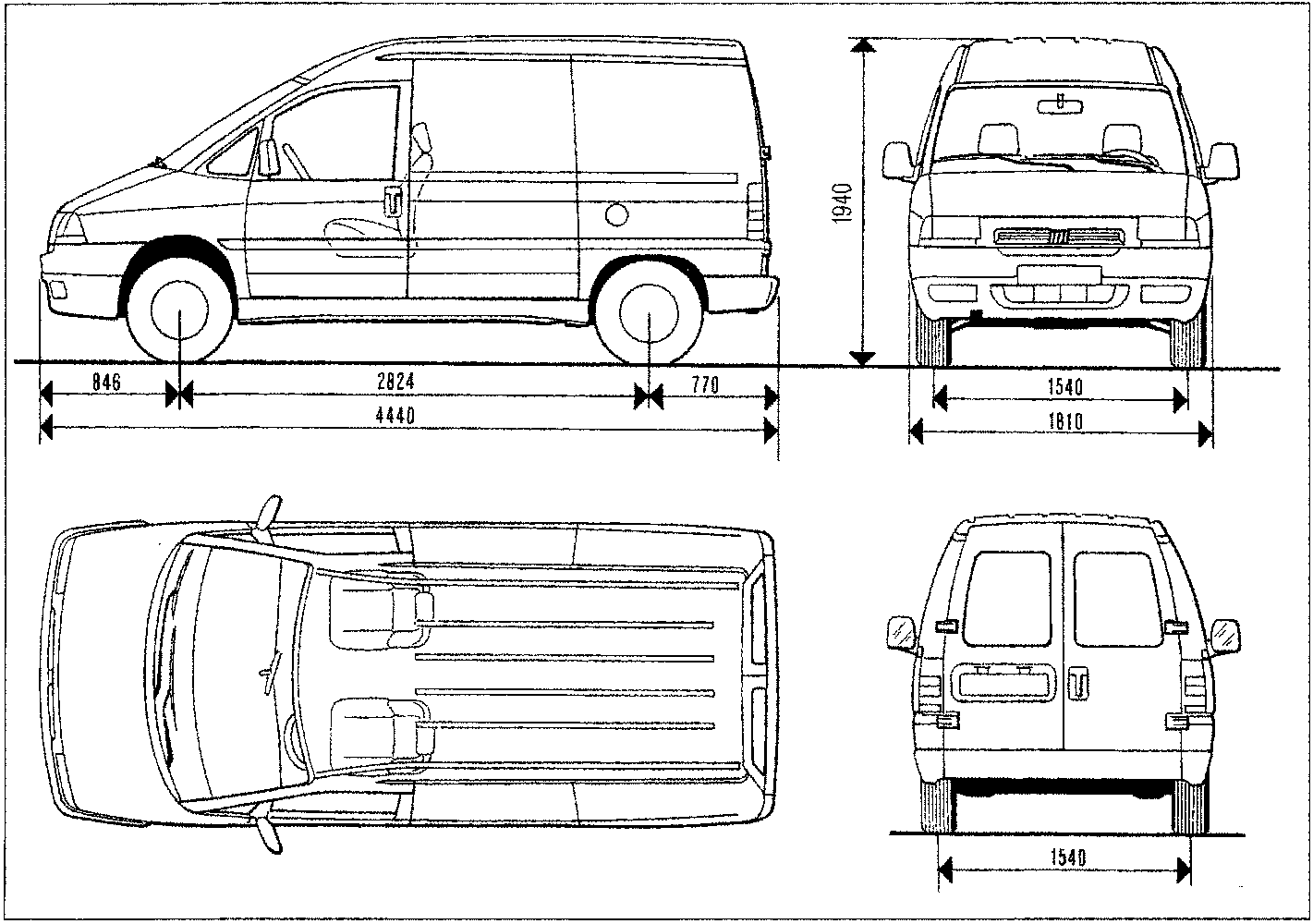

PLATED/GLAZED
| 1868 D VAN |
1868 D ROADSIDE ASSISTANCE |
|
|---|---|---|
| Vehicle kerb weight (with supplies, spare wheel, tools and accessories): | 1380 | 1525 |
| Carrying capacity including the driver: | - | - |
| Maximum permissible loads: - front axle - rear axle - total |
1230 1230 2205 |
1230 1230 2205 |
| Maximum load on the roof | - | - |
| Towable weight with braking system | 1100 | 1100 |
| Towable weight without braking system | 690 | - |
| Max load on the ball (trailer with braking system) | - | - |

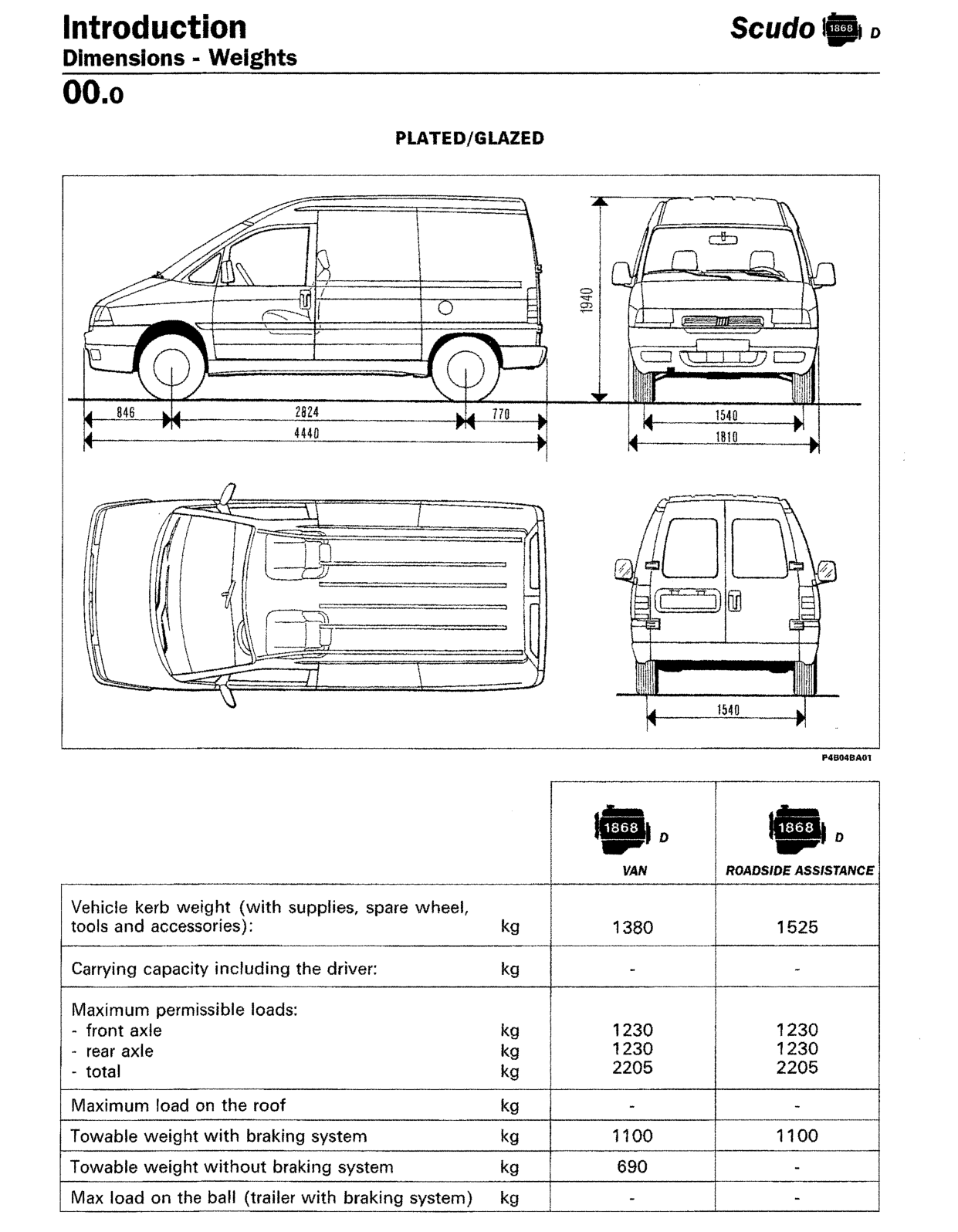

Original page
