Cruiser with floor
- Make
- Fiat
- Model
- Scudo Factory Service Manual
- Year
- 1996–2006
- Section
- Introduction (1997 16v) › Cruiser with floor
00 Introduction and technical dataCruiser with floor

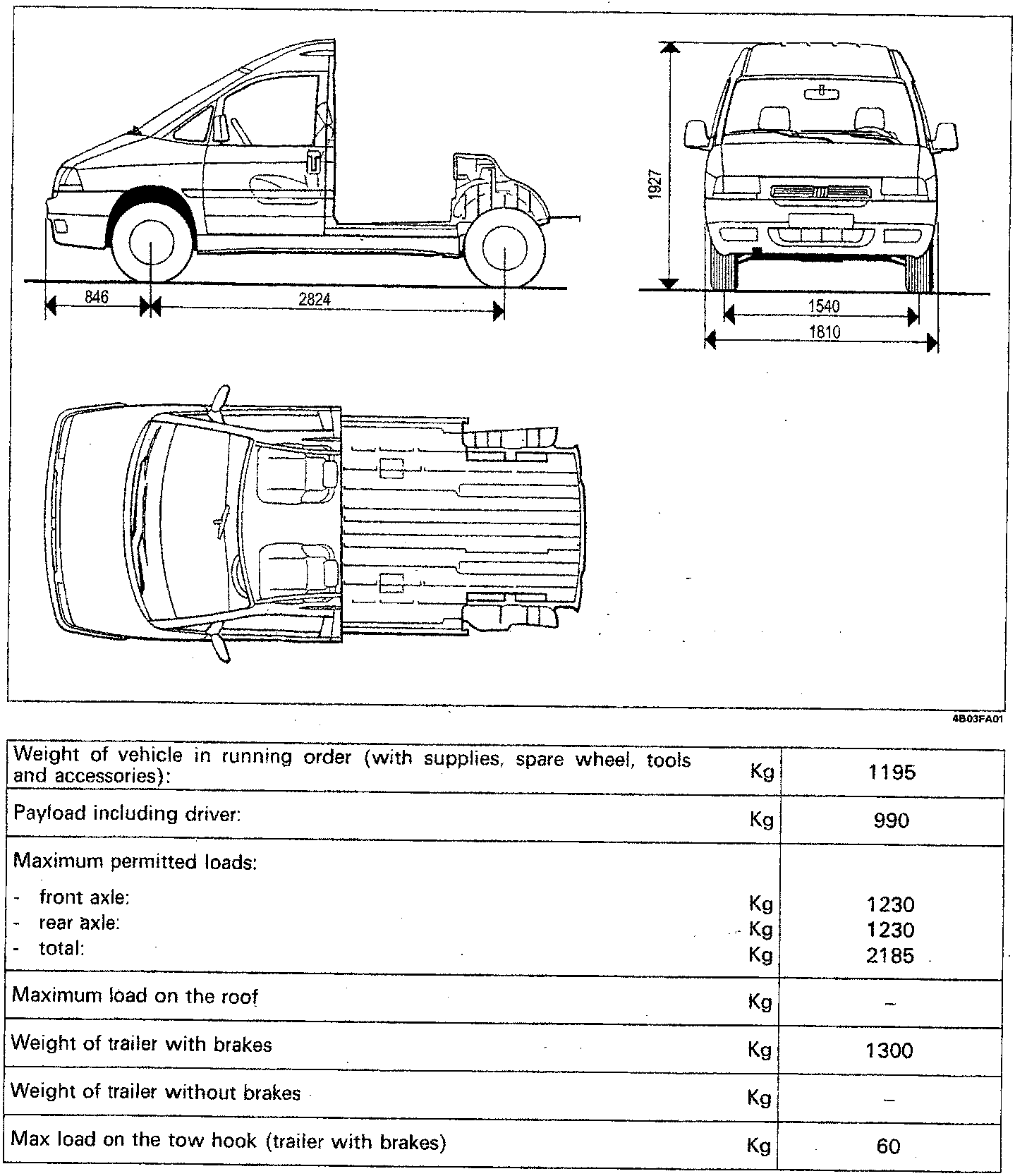

CRUISER WITH FLOOR
| Weight of vehicle in running order (with supplies, spare wheel, tools and accessories): | Kg | 1195 |
| Payload including driver: | Kg | 990 |
| Maximum permitted loads: | ||
| - front axle: | Kg | 1230 |
| - rear axle: | Kg | 1230 |
| - total: | Kg | 2185 |
| Maximum load on the roof | Kg | – |
| Weight of trailer with brakes | Kg | 1300 |
| Weight of trailer without brakes | Kg | – |
| Max load on the tow hook (trailer with brakes) | Kg | 60 |
