00 Introduction and technical dataPlated/glazed van - ambulance

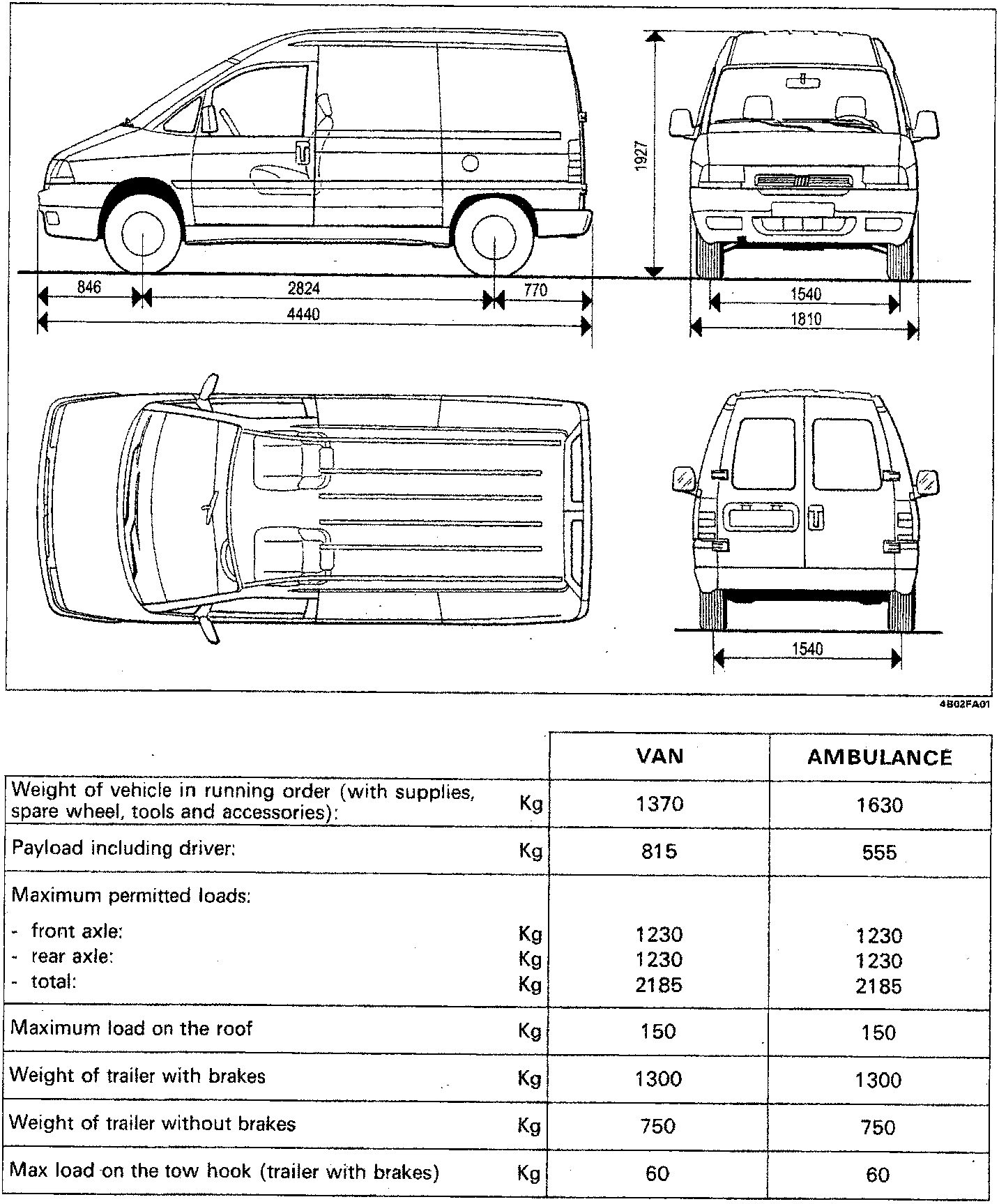

PLATED/GLAZED VAN - AMBULANCE
| VAN | AMBULANCE | ||
|---|---|---|---|
| Weight of vehicle in running order (with supplies, spare wheel, tools and accessories): | Kg | 1370 | 1630 |
| Payload including driver: | Kg | 815 | 555 |
| Maximum permitted loads: | |||
| - front axle: | Kg | 1230 | 1230 |
| - rear axle: | Kg | 1230 | 1230 |
| - total: | Kg | 2185 | 2185 |
| Maximum load on the roof | Kg | 150 | 150 |
| Weight of trailer with brakes | Kg | 1300 | 1300 |
| Weight of trailer without brakes | Kg | 750 | 750 |
| Max load on the tow hook (trailer with brakes) | Kg | 60 | 60 |
