00 Introduction and technical dataCombi · page 1 of 4

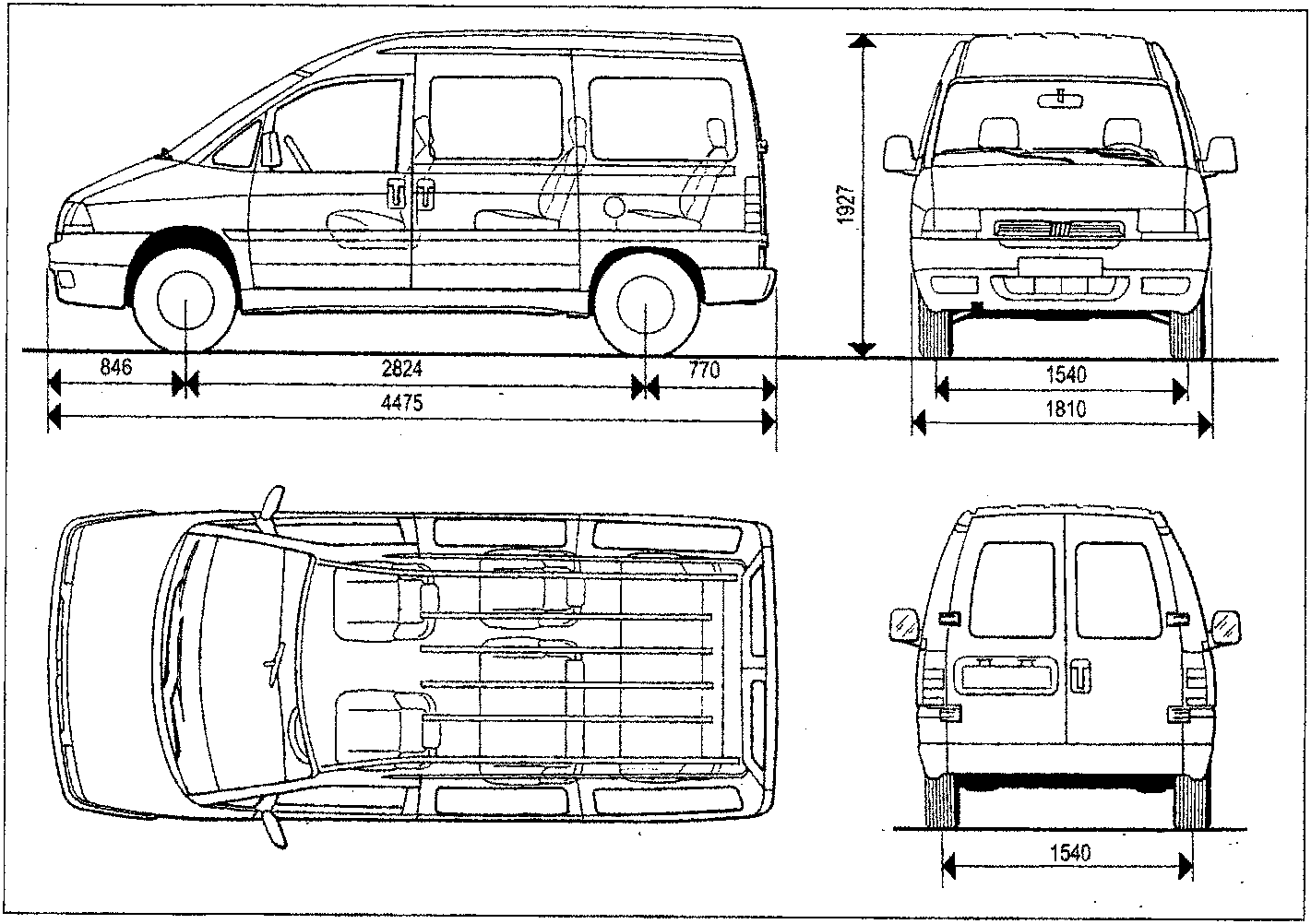

COMBI
| No. of seats | 5 | 6 | 8 | 9 |
|---|---|---|---|---|
| Weight of vehicle in running order (with supplies, spare wheel, tools and accessories): | 1475 1572 |
1479 1576 |
1516 1613 |
1520 1617 |
| Payload including driver: | 810 713 |
806 709 |
769 672 |
765 668 |
| Maximum permitted loads: - front axle: - rear axle: - total: |
1230 1300 2285 |
|||
| Maximum load on the roof | 150 | |||
| Weight of trailer with brakes | 1300 | |||
| Weight of trailer without brakes | 750 | |||
| Max load on the tow hook (trailer with brakes) | 60 | |||
