Introduction (1997 16v)

00 Introduction and technical dataCombi · page 3 of 4

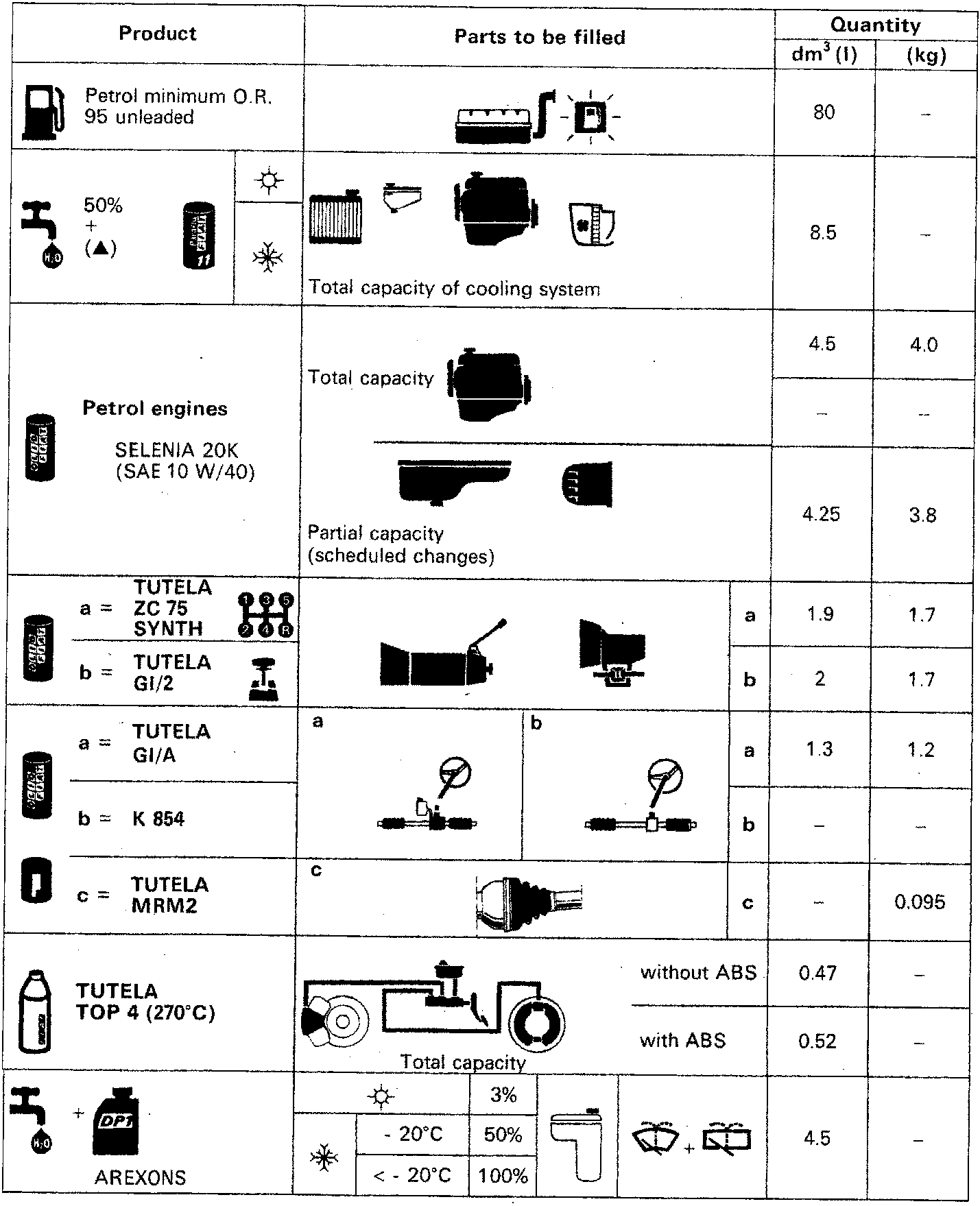

Product	Parts to be filled	Quantity
		dm³ (l)	(kg)
Petrol minimum O.R. 95 unleaded		80	–
50% + (▲)	Total capacity of cooling system	8.5	–
Petrol engines SELENIA 20K (SAE 10 W/40)	Total capacity	4.5	4.0
		–	–
	Partial capacity (scheduled changes)	4.25	3.8
a = TUTELA ZC 75 SYNTH b = TUTELA GI/2		a	1.9	1.7
	b	2	1.7
	a = TUTELA GI/A b = K 854	a	b	a	1.3	1.2
		b	–	–
c = TUTELA MRM2		c		c	–	0.095
TUTELA TOP 4 (270°C)	Total capacity		without ABS		0.47	–
			with ABS		0.52	–
+ AREXONS	☀	3%		4.5	–
	❄ - 20°C	50%
	❄ < - 20°C	100%

(▲) Distilled water
