00 Introduction and technical dataCombi · page 2 of 4
The fuel consumption figures in the table have been defined during the course of official tests and in accordance with the EEC legislation procedures. These figures provide a useful basis for comparisons between different vehicles. Traffic conditions, driving styles, weather conditions and the state of the vehicle in general can, in practice, lead to different fuel consumption figures from those established using the above mentioned legislative procedures.
| ENGINE TYPE | 1997 16v CF3 | ||
|---|---|---|---|
| GEARBOX | |||
Speed km/h |
1st | 49 | N.A. |
| 2nd | 91 | N.A. | |
| 3rd | 134 | N.A. | |
| 4th | 172 | N.A. | |
| 5th | 175 | N.A. | |
| R | 51 | N.A. | |
Gradient fully laden Gradient calculated and valid for moving vehicle with engine speed corresponding to maximum torque |
– | – | |
| Fuel consumption in accordance with Dir. 1999/100/CE (litres/100 km) |
Urban cycle | 12.0 | N.A. |
| Extra-urban cycle | 7.3 | N.A. | |
| Average combined cycle | 9.0 | N.A. | |
| CO2 emissions (g/km) Combined cycle |
216 | N.A. | |

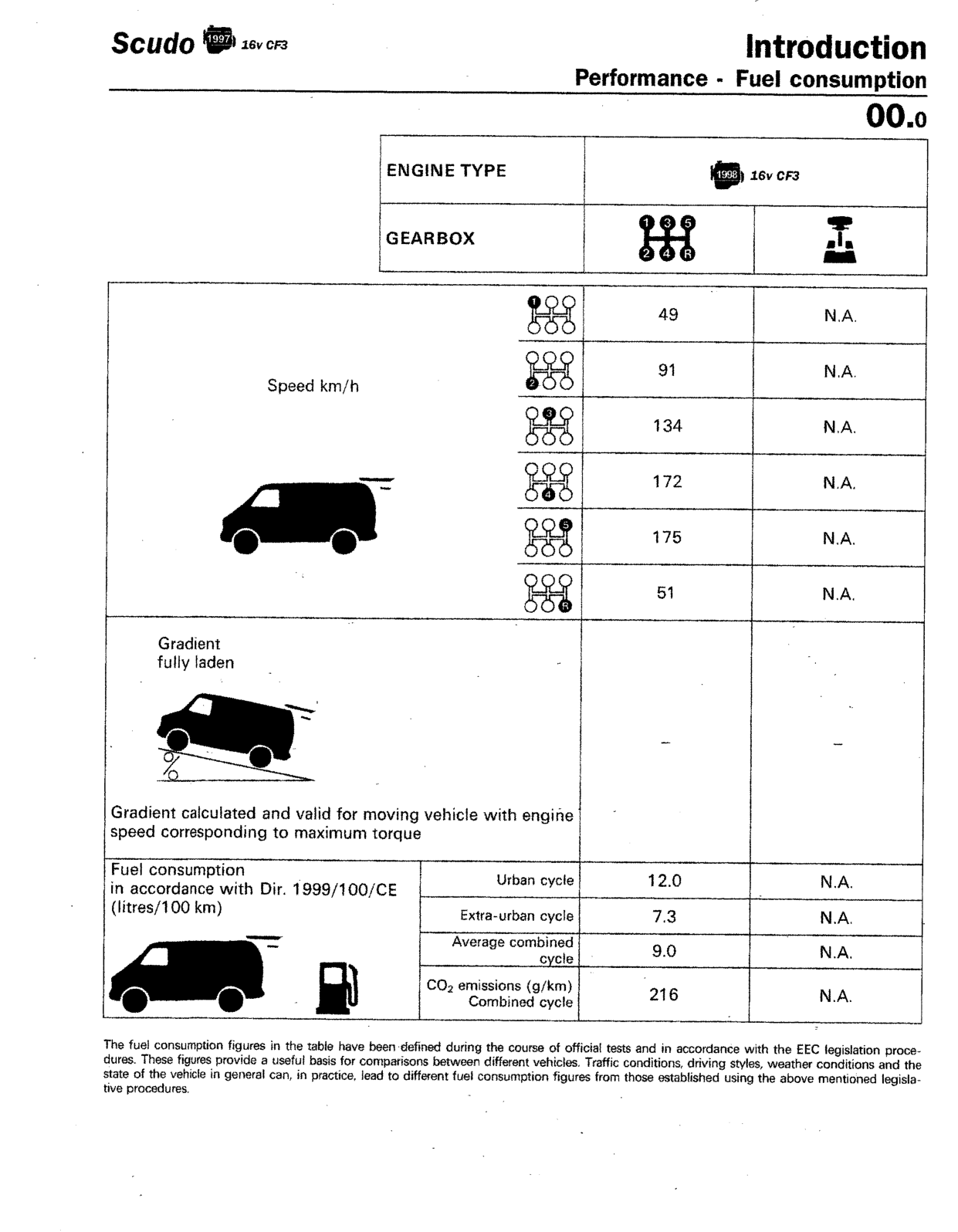

Original page
