00 Introduction and technical dataDifferential · page 1 of 2
| GEARBOX | Type | |
|---|---|---|
| Synchronizers | baulk ring type | |
| Gears | helical toothed | |
| straight toothed | ||
| (11/38) 3,455 | ||
| (23/43) 1,870 | ||
| (25/32) 1,280 | ||
| (41/39) 0,951 | ||
| Gear ratio | (47/35) 0,745 | |
| (12/40) 3,333 |
DIFFERENTIAL
| DIFFERENTIAL | ||
|---|---|---|
| Ratio crown wheel & pinion reduction 4,933 (15/74) |
||
| 17,042 | ||
| 9,223 | ||
| 6,315 | ||
| 4,693 | ||
| Ratio at the wheels | 3,674 | |
| 16,444 | ||

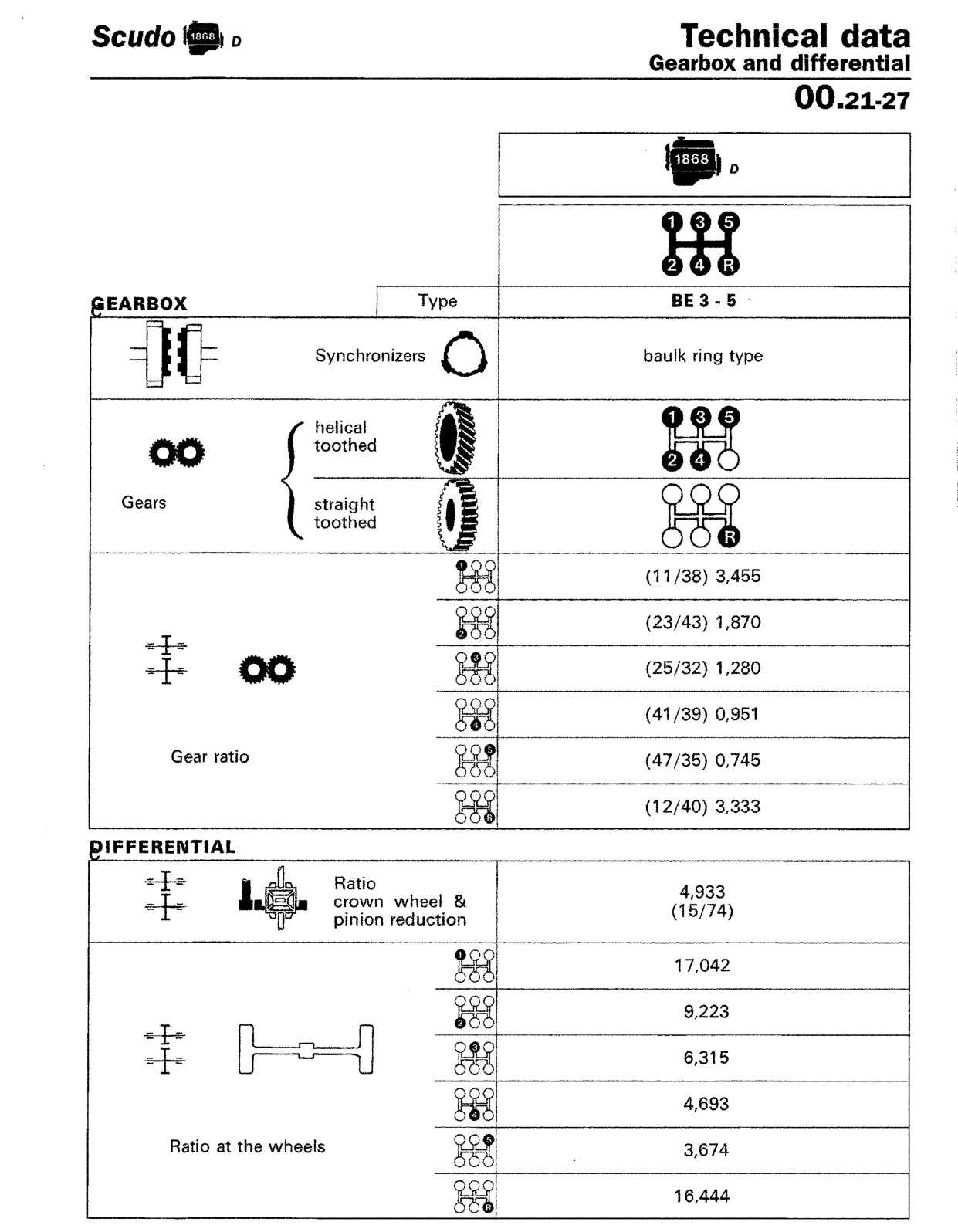

Original page
