- Make
- Fiat
- Model
- Scudo Factory Service Manual
- Year
- 1996–2006
- Section
- Technical data (1868 D)
00 Introduction and technical dataDifferential · page 2 of 2
| ENGINE TYPE | [Engine badge: 1868 D] |
| Type | [Diagram of rack and pinion steering] rack and pinion power assisted |
| Ratio | [Diagram showing steering wheel rotation and rack movement] no. of turns lock to lock 3 |
| [Diagram showing rack travel] rack travel 152 mm |
|
| Turning circle | [Diagram of turning circle with diameter symbol] 11.8 m |
| Steering angle | [Diagram of outer and inner wheel steering angles α₁ and α₂] outer wheel α₁ (*) |
| inner wheel α₂ (*) |
|
| Steering column | [Diagram of steering column with two joints] with 2 universal joints |
(∗) Data not available at the time of printing.

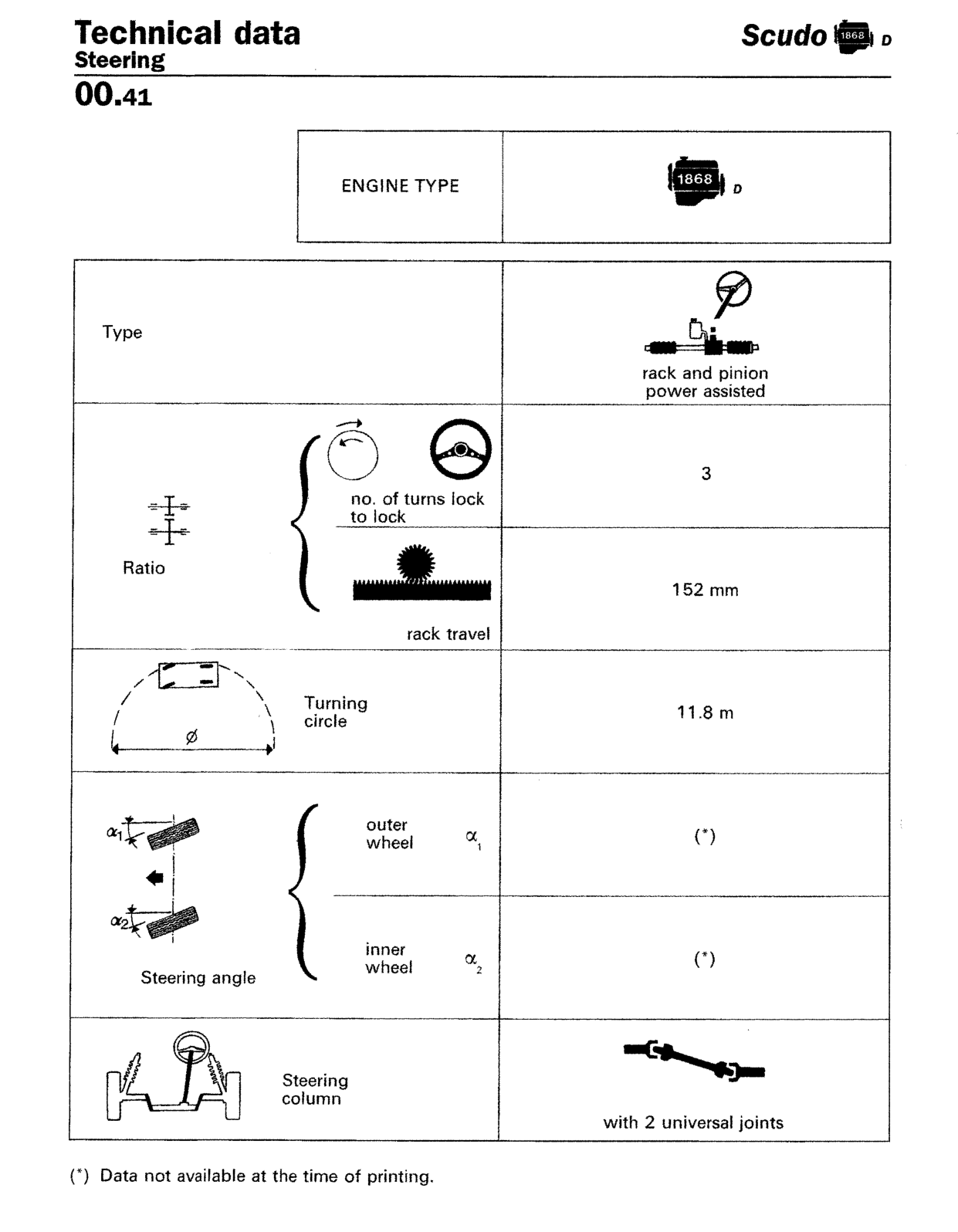

Original page
