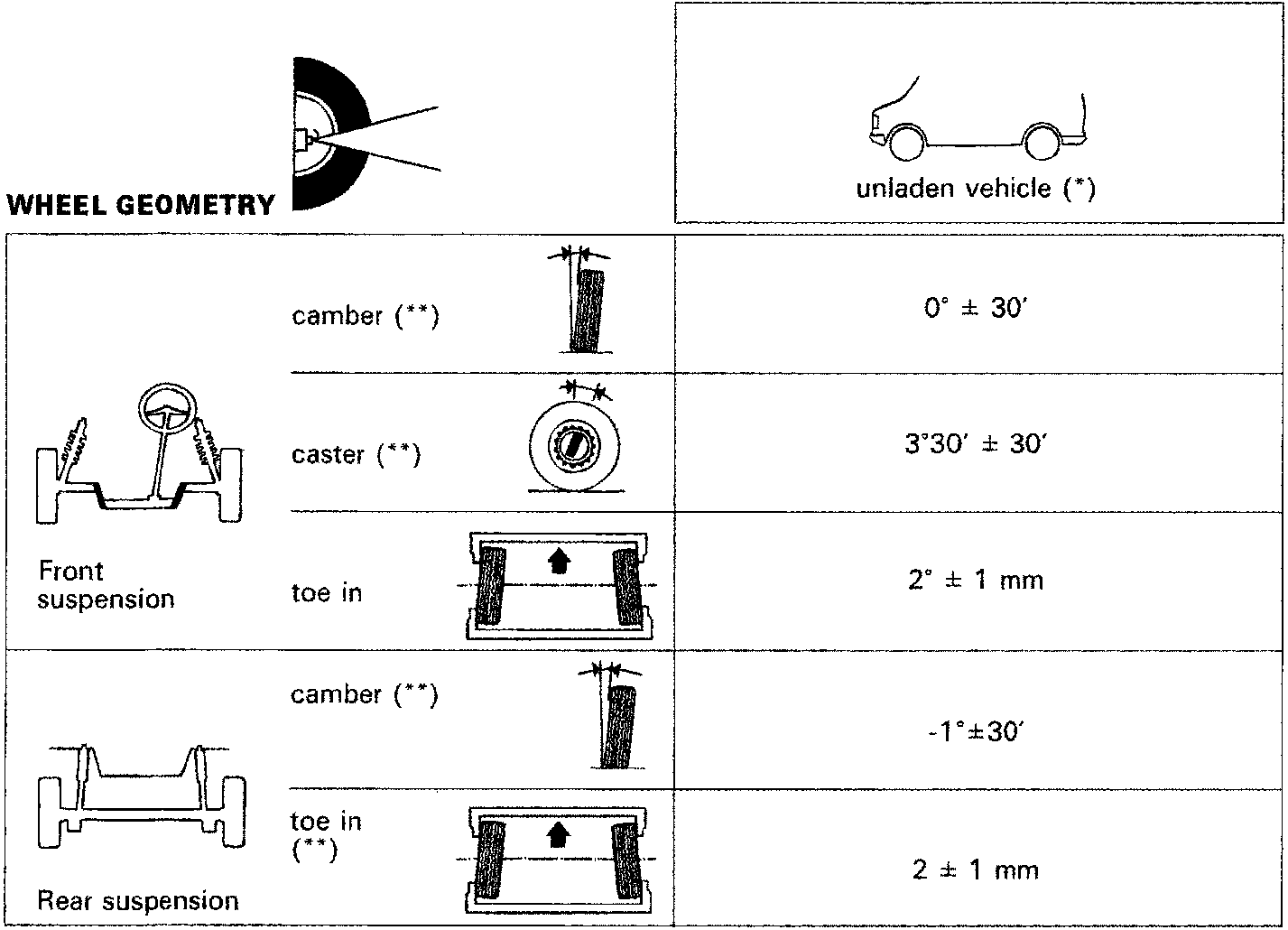

WHEEL GEOMETRY

(*) With tyres inflated to the recommended pressure and vehicle in running order
(**) Angles cannot be adjusted
(●) Data not available at the time of printing

Front suspension	camber (**)	0° ± 30'
	caster (**)	3°30' ± 30'
	toe in	2° ± 1 mm
Rear suspension	camber (**)	-1°±30'
	toe in (**)	2 ± 1 mm
