10 EngineAuxiliary shaft drive belts
AUXILIARY SHAFT DRIVE BELTS
Replacing
Position the vehicle on a lift, remove the left front wheel and disconnect the negative battery lead. Raise the vehicle and remove the two inner wheel arch liners undoing the bolts and removing the fixing buttons, following the instructions given for the timing belt.

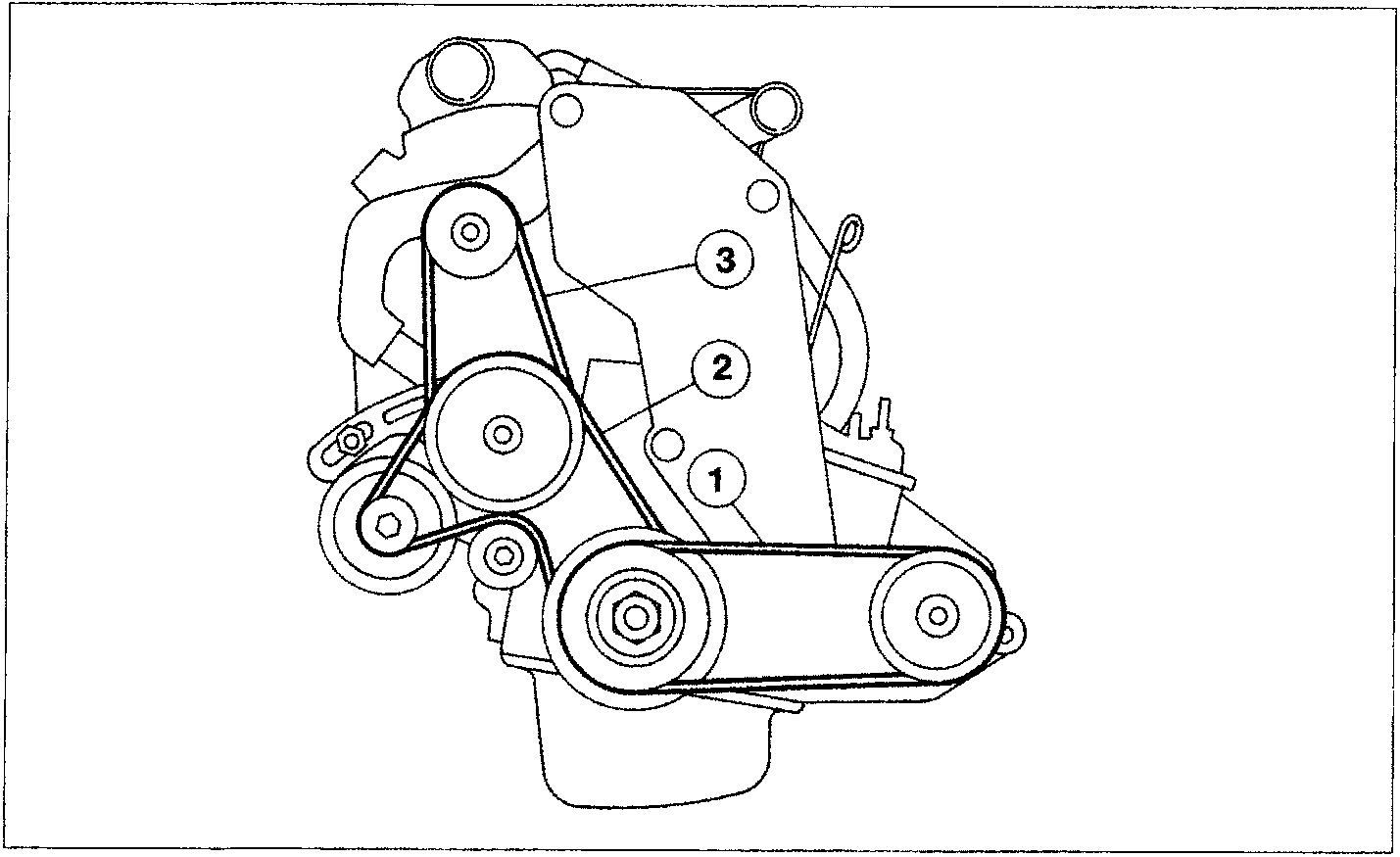

- Air conditioning compressor drive belt (Poly-V 4 ribs)
- Alternator/water pump drive belt (Poly-V 6 ribs)
- Power steering drive belt (trapezoid)
Tensioning belts with torque wrench for checking trapezoid and Poly-V belt tension tool n° 1895762000
| Type of belts | Fitting tensions | Retensioning | Checks 20,000 km | |
|---|---|---|---|---|
| AV 10 Trapezoid | 40 ÷ 55 daN | After 15' running in and coolant temperature below 40°C | 40 ÷ 55 daN | 25 ÷ 35 daN |
| AV 13 Trapezoid | 50 ÷ 65 daN | 45 ÷ 55 daN | 30 ÷ 40 daN | |
| Poly-V 4 ribs | 42 ÷ 55 daN | 32 ÷ 47 daN | ||
| Poly-V 5 ribs | 52 ÷ 67 daN | 40 ÷ 55 daN | ||
| Poly-V 6 ribs | 62 ÷ 78 daN | 48 ÷ 64 daN | ||
