Timing belt

TIMING BELT

Removing-refitting

Position the vehicle on a lift, remove the right frontwheel and disconnect the negative battery lead.

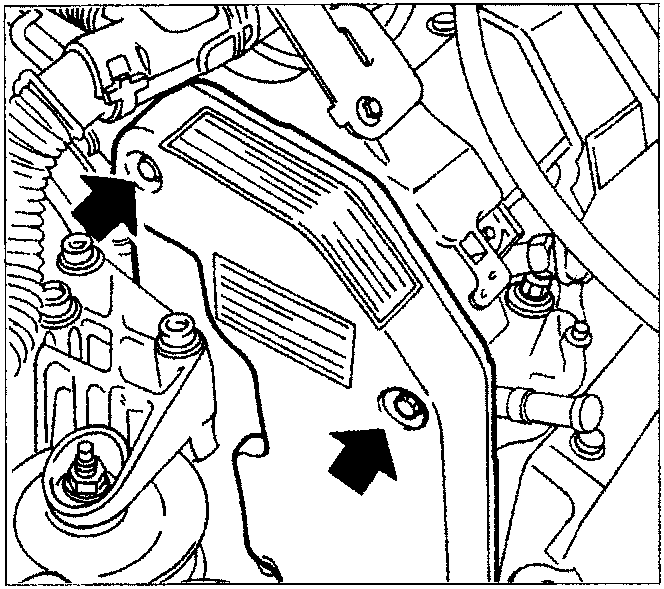

Working from the engine compartment, undo the upper two bolts fixing the timing belt shield (arrow).

Raise the vehicle and remove the two right wheel arch liners undoing the bolts and removing the fixing buttons.

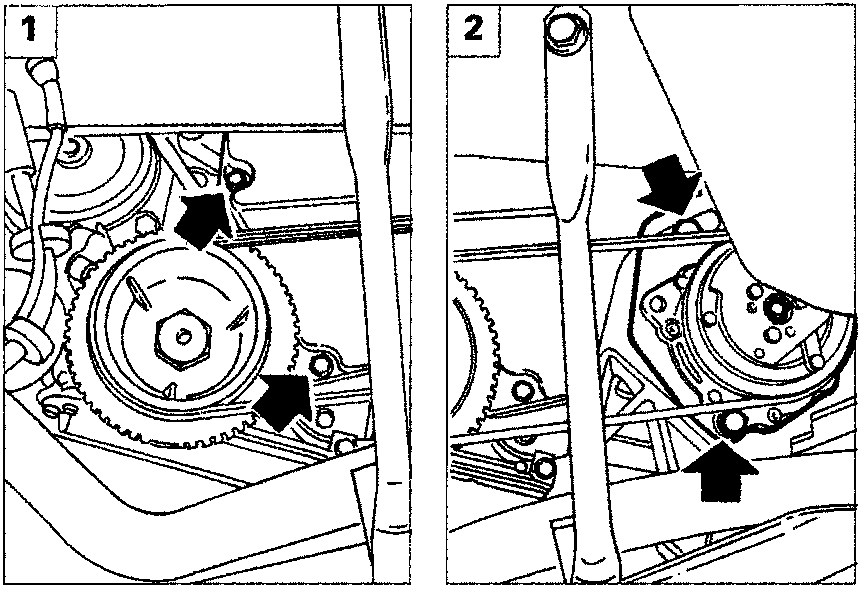

Working via the wheel arch, proceed as follows:

1. undo the lower two bolts fixing the timing belt shield (arrow);
2. loosen the two bolts fixing the air conditioning compressor (arrow).
