Timing belt (page 3 of 5)

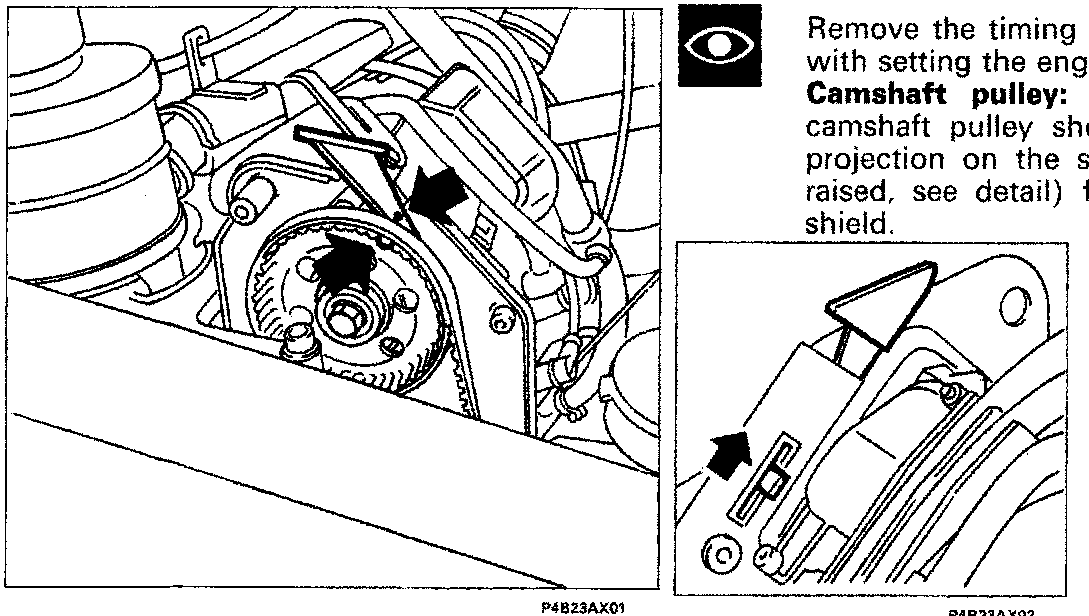

Remove the timing belt shield and proceed with setting the engine timing. **Camshaft pulley:** the reference on the camshaft pulley should coincide with the projection on the sliding cam (completely raised, see detail) for the timing belt rear shield.

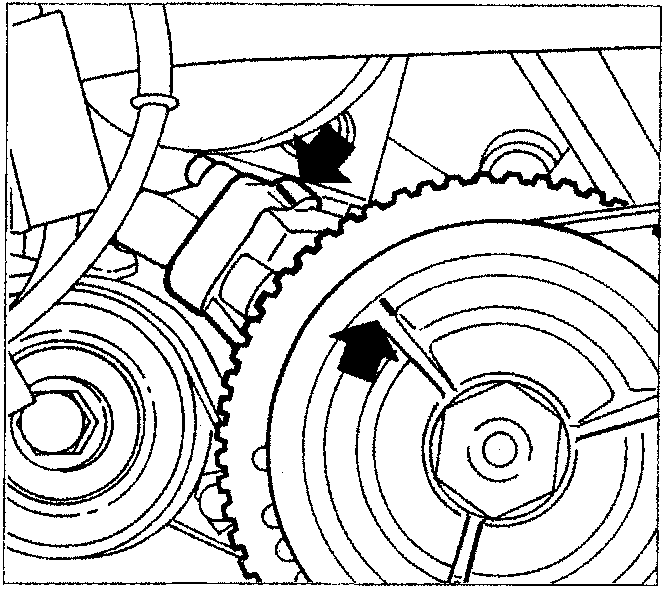

**Alternator drive pulley:** the reference on the alternator drive pulley should correspond with the projection on the crankcase front cover. **NOTE** These checks should be carried out to facilitate the subsequent fitting of the timing belt.

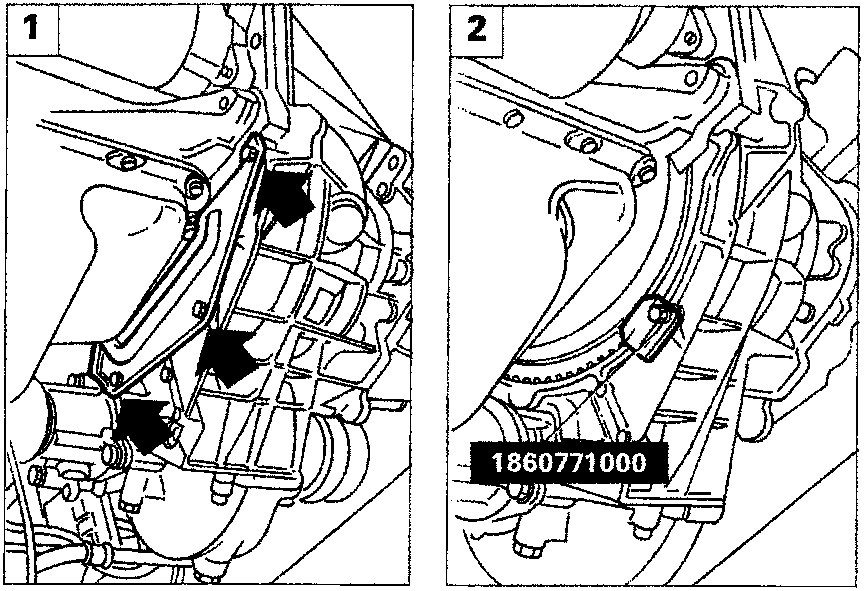

Working from the underbody, proceed as follows: 1. remove the flywheel shield, undoing the fixing bolts (arrow); 2. lock the crankshaft using tool 1860771000;
