Timing belt (page 4 of 5)

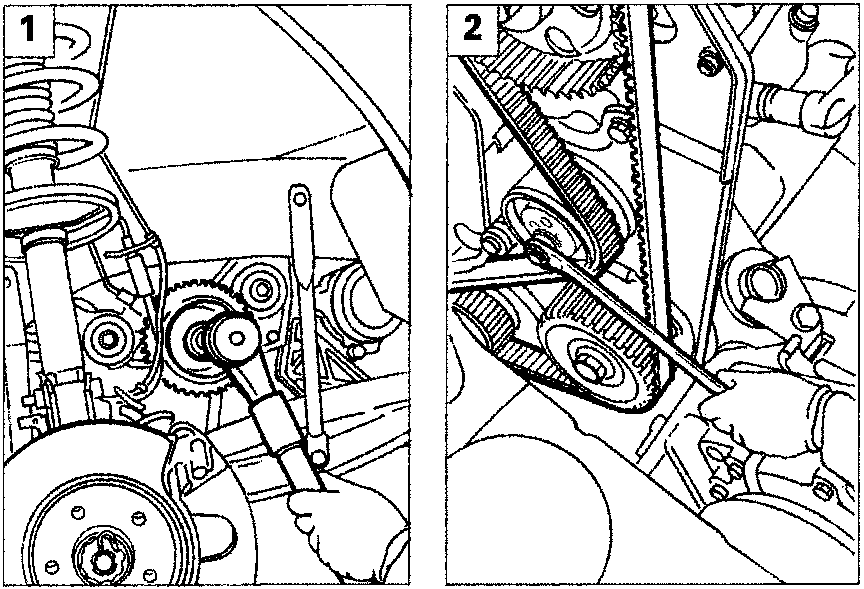

1. undo the drive belt pulley fixing nut and remove the pulley;
2. loosen the belt tensioner fixing bolt, then remove the actual belt.

Proceed with refitting the toothed belt, without tightening the belt tensioner bearing.

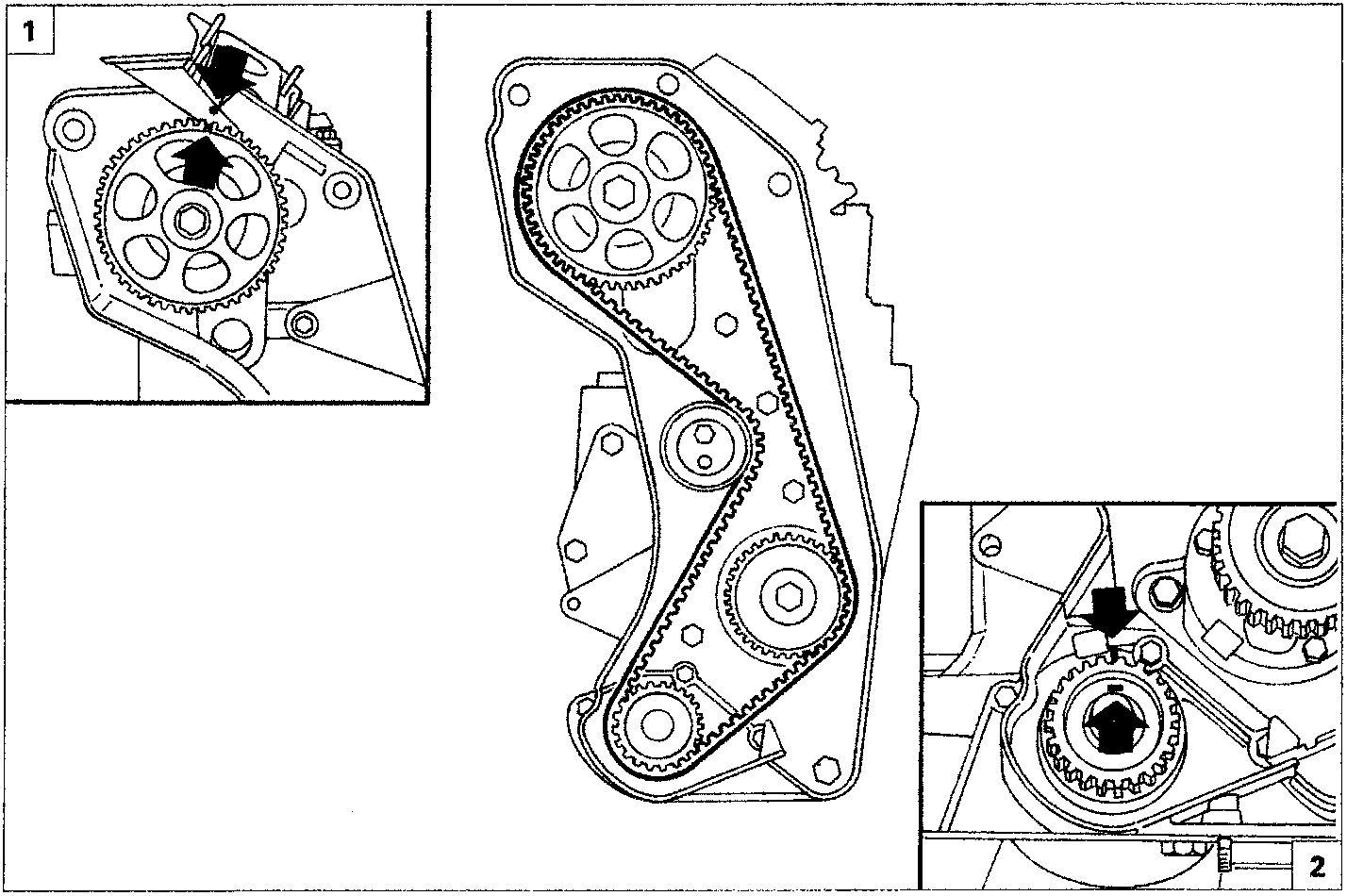

Check the timing:

1. camshaft pulley: the reference should coincide with the projection on the sliding cam (completely raised) for the timing belt rear shield;
2. crankshaft pinion: the fitting tab should coincide with the projection on the crankcase front cover.
