Control units

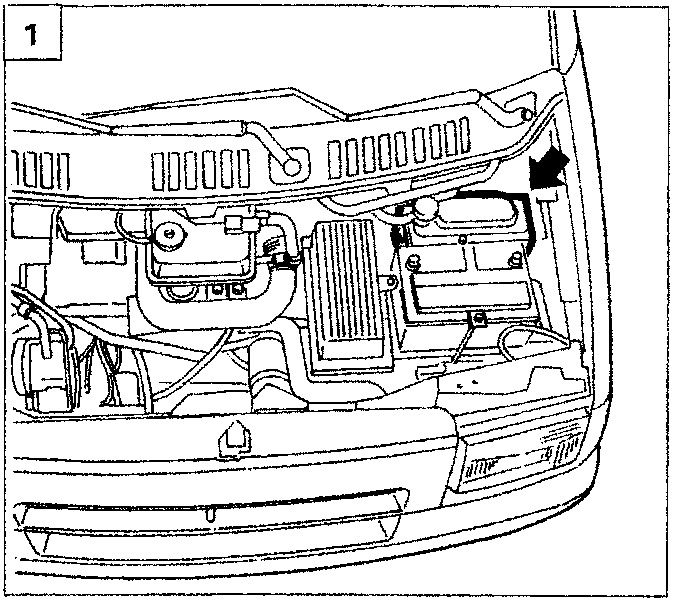

Diagram showing the location of the fuse and relay junction unit in the engine compartment for versions with A.B.S.
FUSE AND RELAY JUNCTION UNIT IN ENGINE COMPARTMENT (PSF1) FOR VERSIONS WITH A.B.S.
  1. Location of junction units in engine compartment

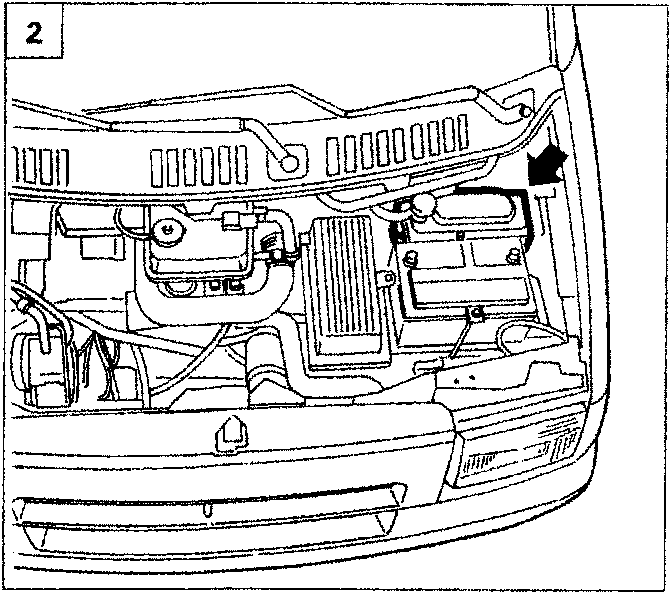

Diagram showing the location of the fuse and relay junction unit in the engine compartment for versions without A.B.S.
FUSE AND RELAY JUNCTION UNIT IN ENGINE COMPARTMENT (BF01-BMF1) FOR VERSIONS WITHOUT A.B.S.
  1. Location of junction units in engine compartment

Replacing fuses and relays

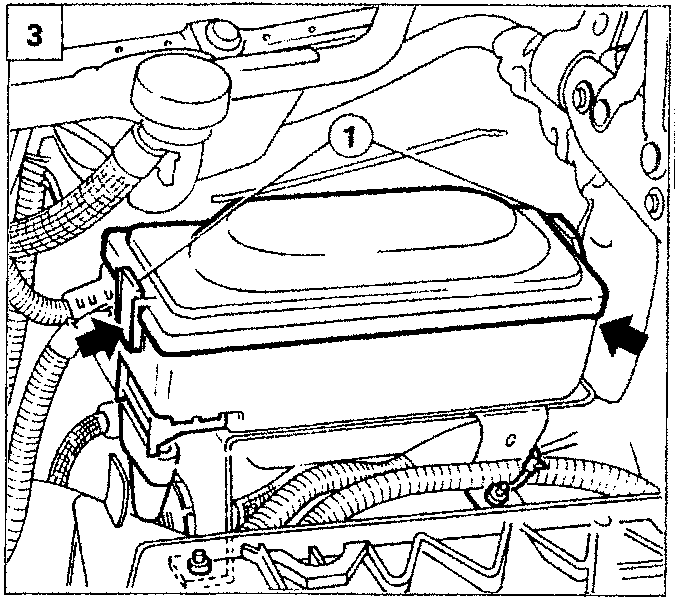

  1. To gain access to the fuses and relays, act on the retaining springs and remove the cover.
  2. Check and replace the faulty fuses and relays (the diagram shows the version without A.B.S.).
Close-up diagram of the junction unit cover being removed, indicated by callout 1.

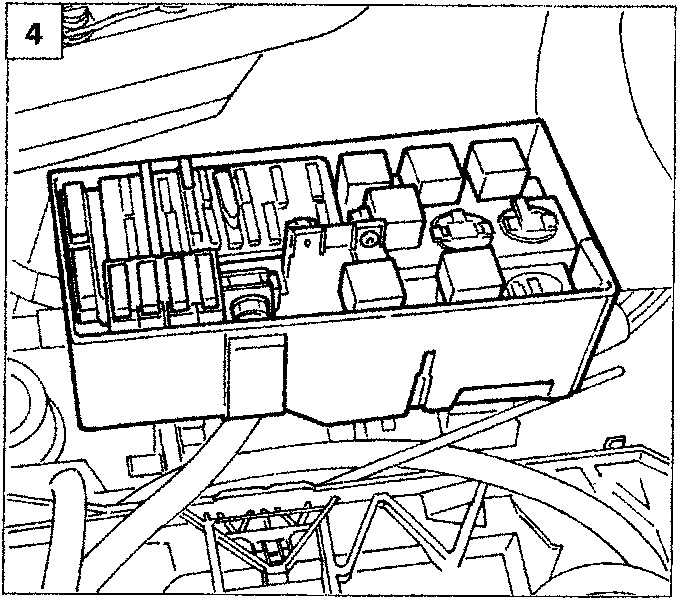

Diagram showing the internal layout of the fuse and relay junction unit.
