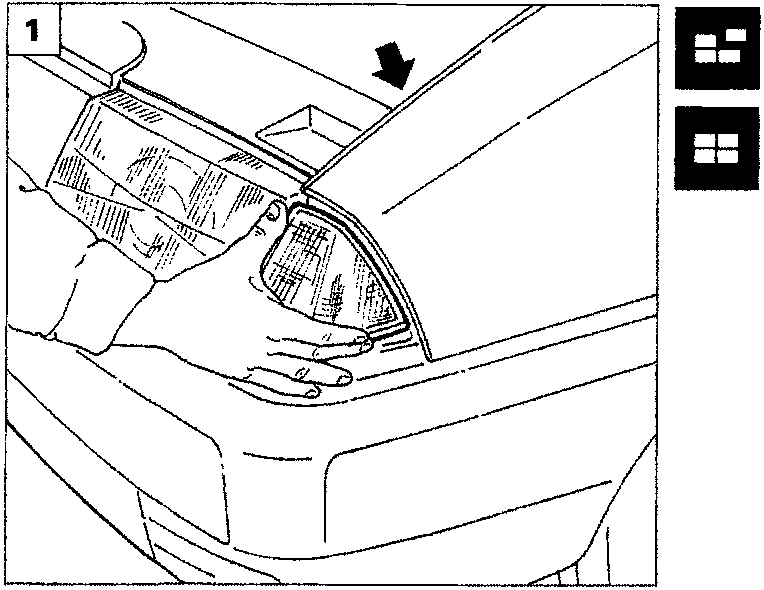

Diagram showing a hand releasing the clip on the front direction indicator from inside the engine compartment

FRONT DIRECTION INDICATOR

Removing-refitting

  1. Release the clip (arrowed) from inside the engine compartment and withdraw the direction indicator from its seating.

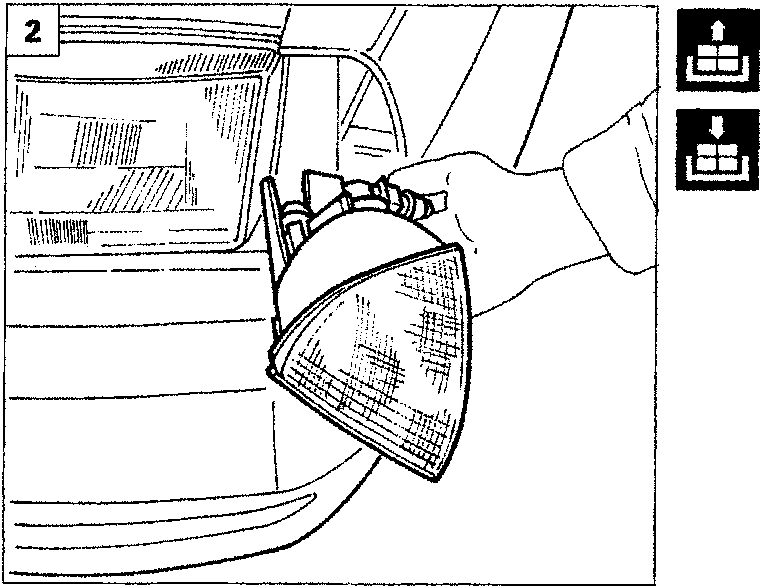

Diagram showing a hand disconnecting the connector and removing the direction indicator unit
  1. Disconnect the connector then remove the direction indicator.

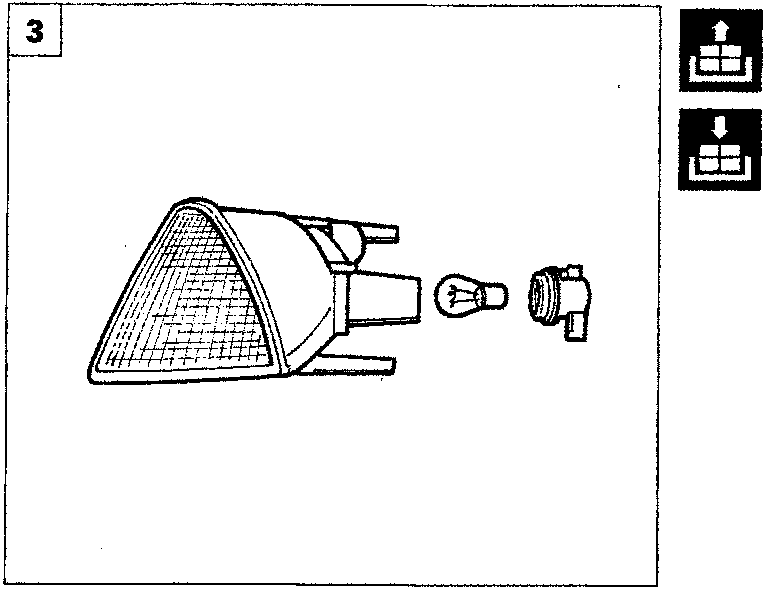

Diagram showing the dismantled direction indicator with lens, bulb holder, bulb, and connector separated
  1. To dismantle the direction indicator, rotate the bulb holder to remove it from the lens, then withdraw the bulb by rotating it anti-clockwise.
