55 Electrical equipmentFront lights cluster
Diagram showing the front of the vehicle with arrows indicating screws securing the front trim panel and frame under the lights cluster

FRONT LIGHTS CLUSTER

Removing-refitting

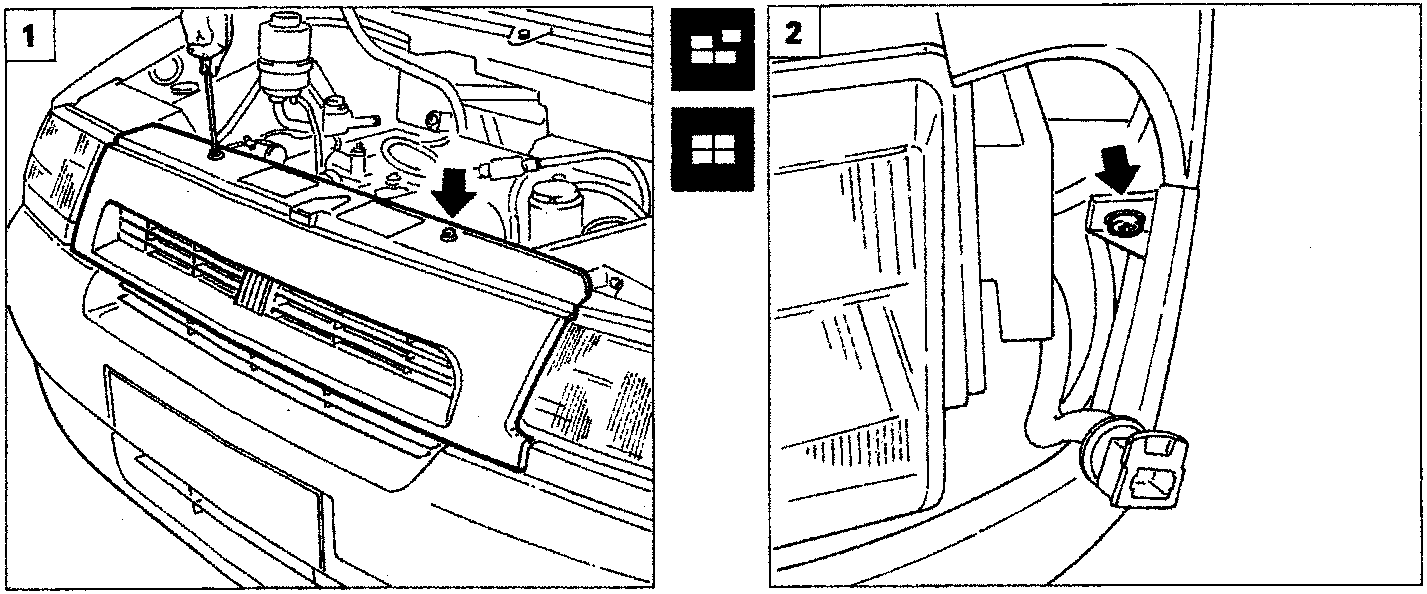

  1. Undo the screws securing the front trim panel.
  2. Undo the screw securing the frame located under the lights cluster.

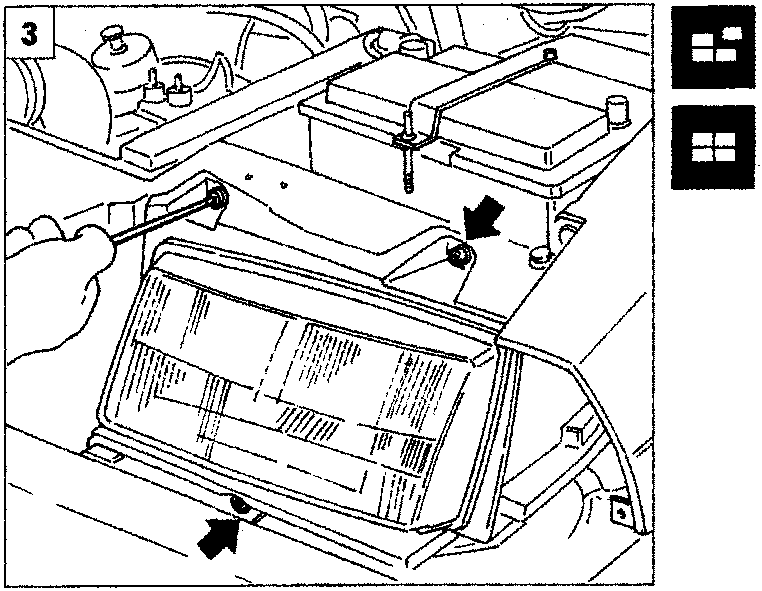

  3. Undo the screws securing the lights cluster as shown in the figure.

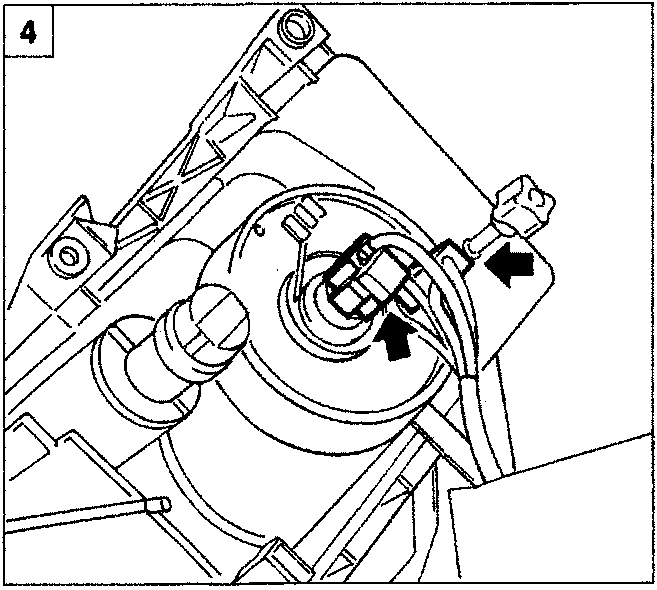

  4. Lift up the protective cover and disconnect the bulb connectors (arrowed).

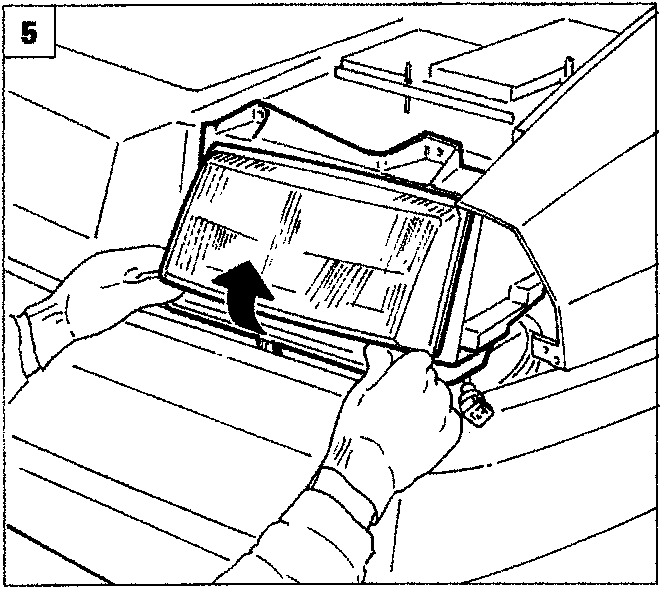

  5. Remove the light by tilting it upwards.
Diagram showing a hand using a tool to undo a screw on the lights cluster assembly
Diagram showing hands removing the lights cluster by tilting it upwards
Diagram showing the rear of the lights cluster with arrows pointing to the bulb connectors being disconnected
