55 Electrical equipmentRemoving-refitting

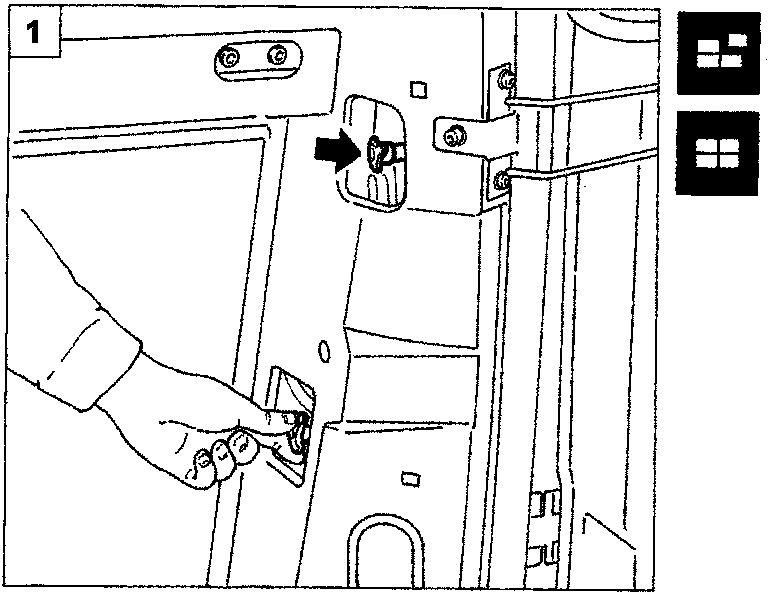

Diagram showing a hand undoing wing nuts on the rear lights cluster inside the vehicle body panel.

Removing-refitting

  1. Undo the wing nuts securing the rear lights cluster.

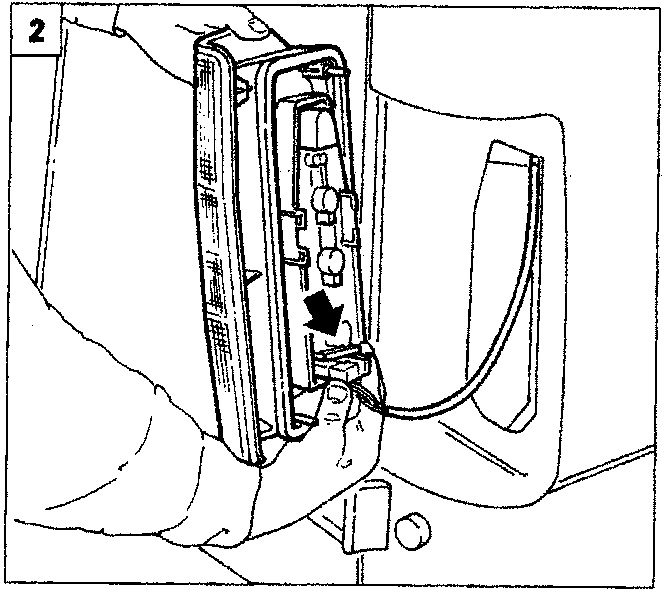

Diagram showing the rear lights cluster being withdrawn from its seating and disconnected from the wiring connector.
  1. Withdraw the lights cluster from its seating, disconnect the wiring connector and remove it from the car.

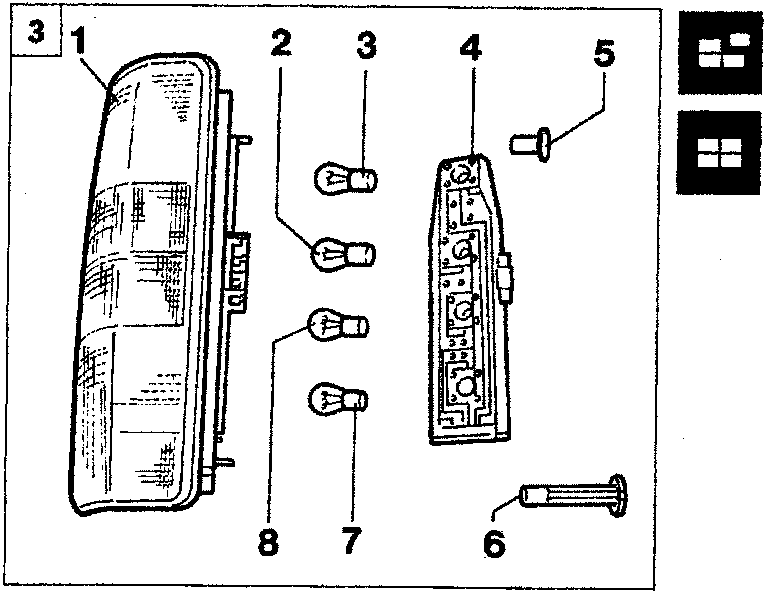

Exploded diagram of the rear lights cluster showing the lens, bulbs, bulb holder, and wing nuts with numbered callouts 1 through 8.
  1. Lens
  2. Direction indicator
  3. Stop/side lights
  4. Bulb holder
  5. Top wing nut
  6. Bottom wing nut
  7. Rear fog lamp
  8. Reversing light bulb

Dismantling-reassembly

  1. Release the bulb holder from the retaining springs and withdraw it. Remove the bulb holder in an anti-clockwise direction.
