55 Electrical equipmentRear courtesy light

REAR COURTESY LIGHT

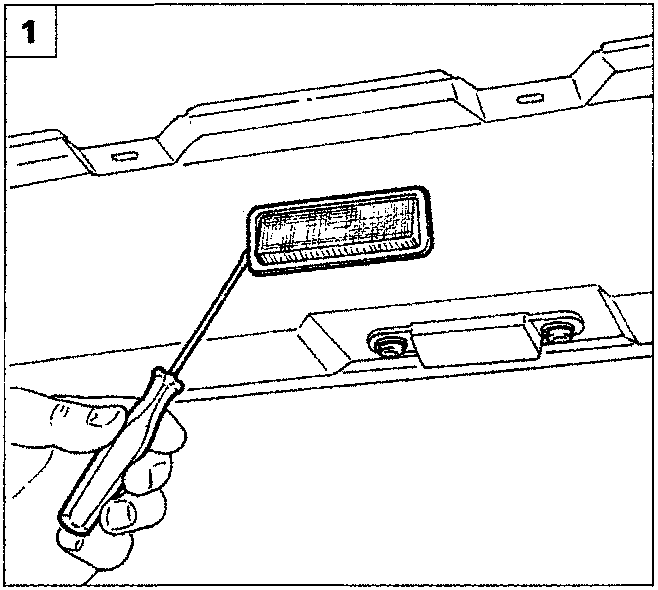

A screwdriver being used to withdraw a rectangular courtesy light from its seating in the vehicle interior trim.

Removing-refitting

  1. Working as illustrated in the figure, withdraw the courtesy light from its seating.

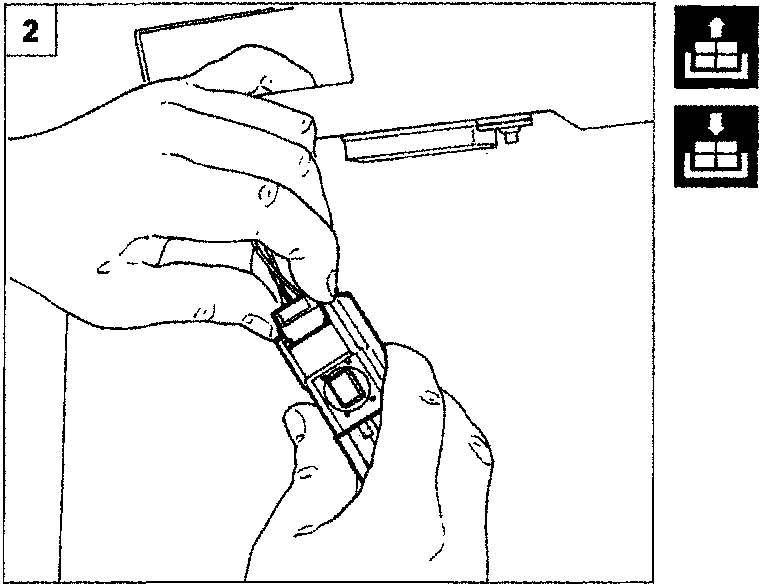

Hands disconnecting an electrical connector from the rear of the courtesy light unit and removing it.
  1. Disconnect the connector and remove the courtesy light from the car.

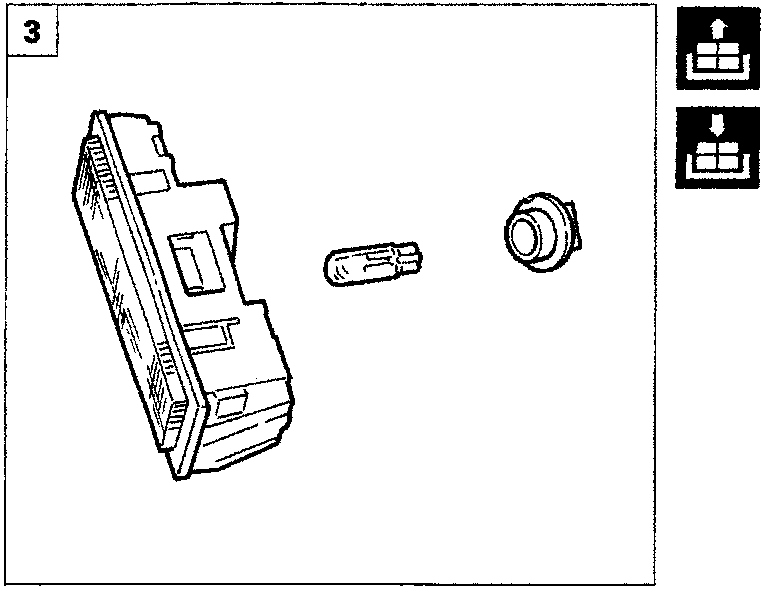

The disassembled courtesy light showing the housing, a small bulb, and the bulb holder socket.

Replacing courtesy light bulb

  1. Rotate the bulb holder and withdraw it, then replace the bulb which is press fitted into it.
