NUMBER PLATE LIGHT

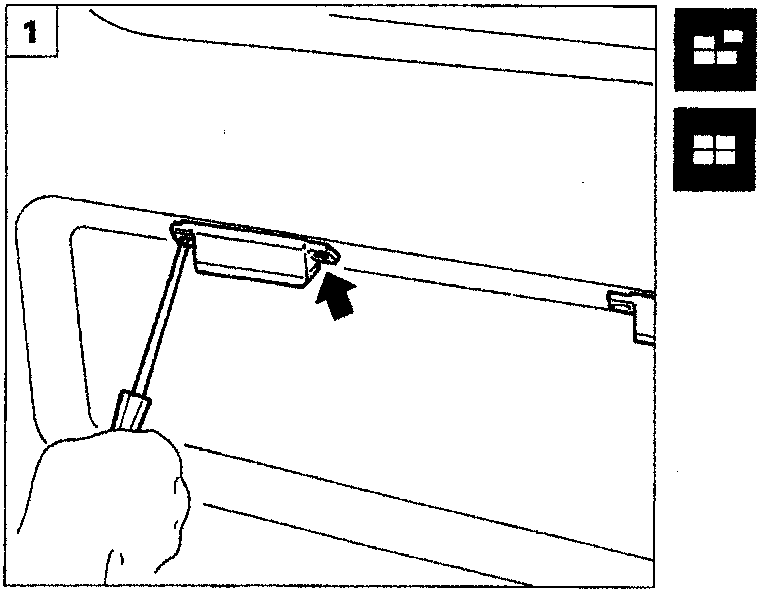

Diagram showing a screwdriver being used to remove the number plate light from its seating on the vehicle body

Removing-refitting

  1. Remove the screws and withdraw the light from its seating.

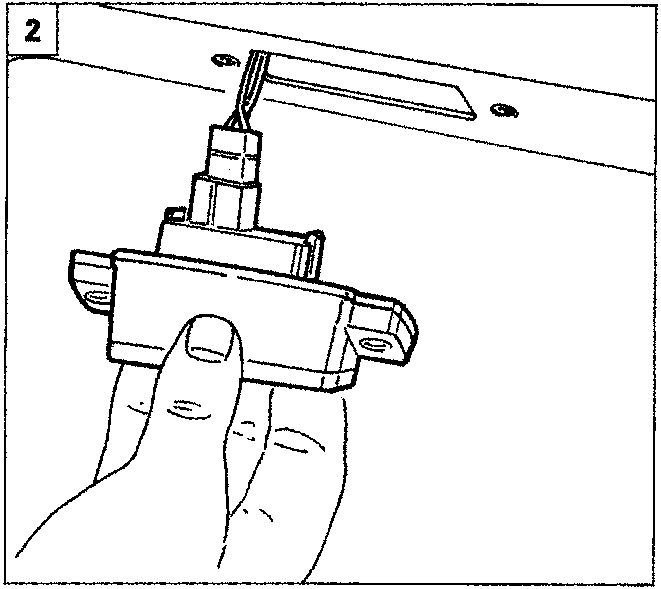

Diagram showing a hand disconnecting the wiring connector from the removed number plate light unit
  1. Disconnect the wiring connector and remove the light from the car.

Replacing bulb

  1. Undo the screws securing the frame, and remove it.
  2. Relase the lugs indicated, withdraw the bulb holder and remove the bulb by rotating it anti-clockwise.

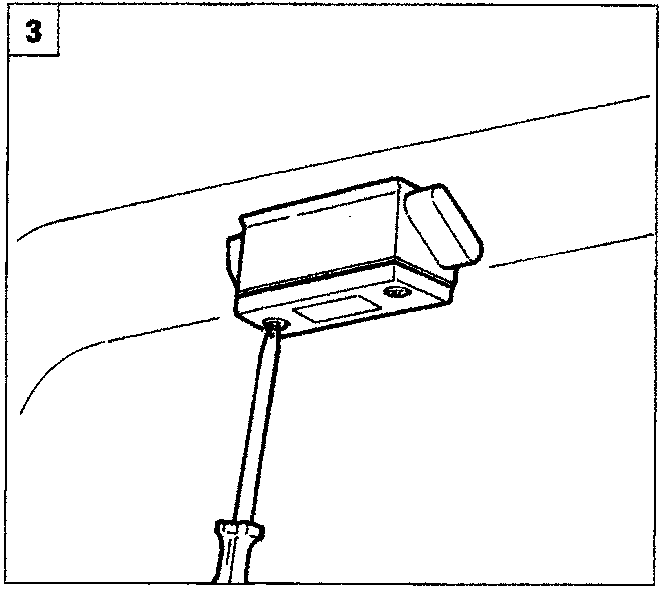

Diagram showing a screwdriver undoing the screws securing the frame of the number plate light

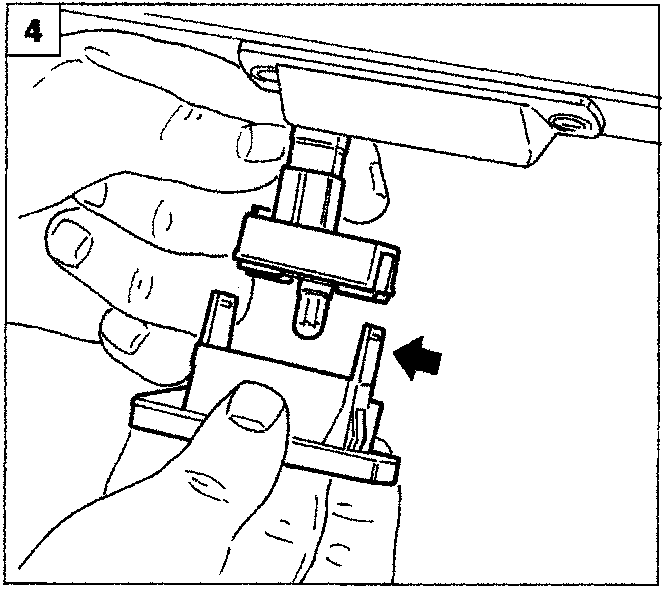

Diagram showing a hand withdrawing the bulb holder from the light frame by releasing the lugs
