Stalk unit

STALK UNIT

Removing-refitting

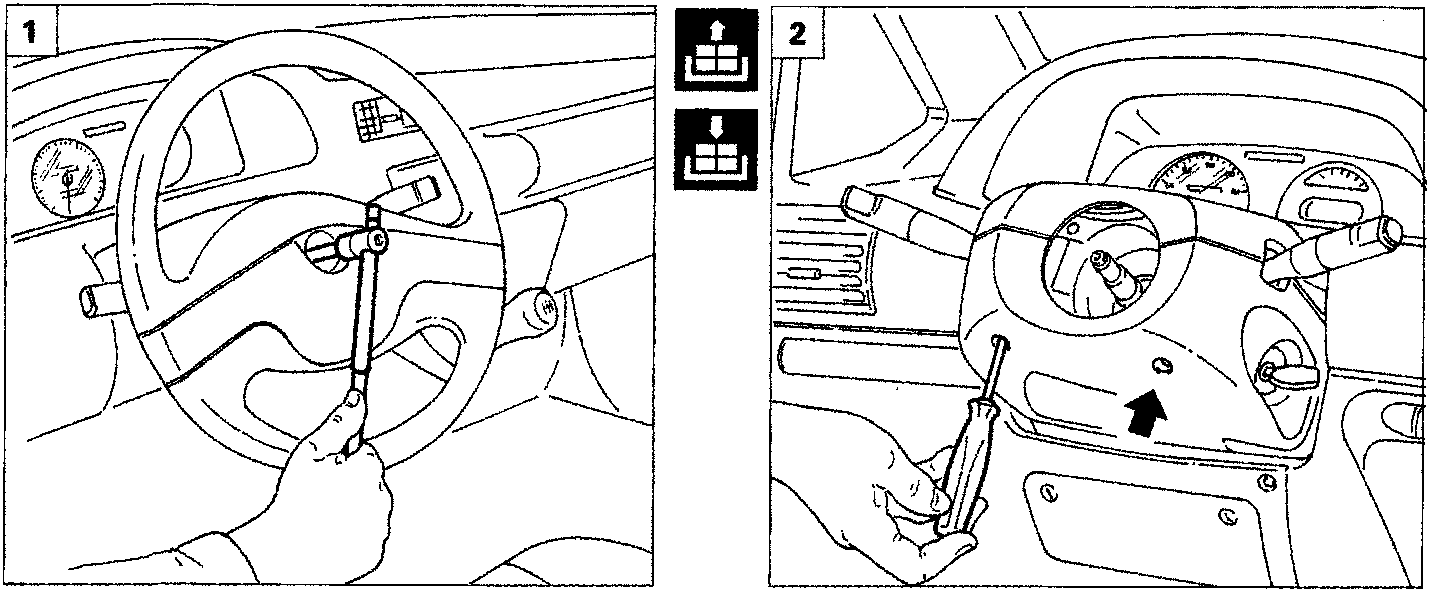

1. Remove the trim piece, undo the nut and remove the steering wheel.
2. Undo the screws shown in the figure, then remove the steering column top shroud in an upward direction.

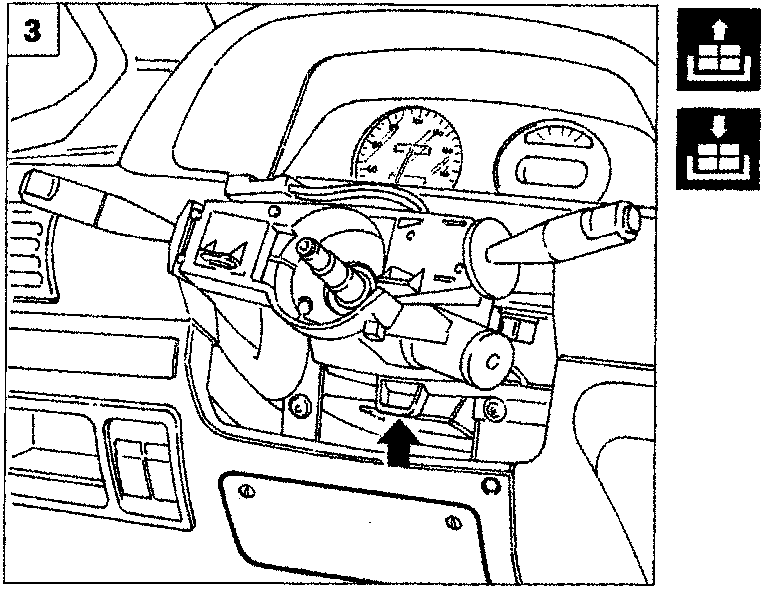

3. Remove the steering column bottom shroud; to access the screw securing the shroud, remove the fuse unit cover.

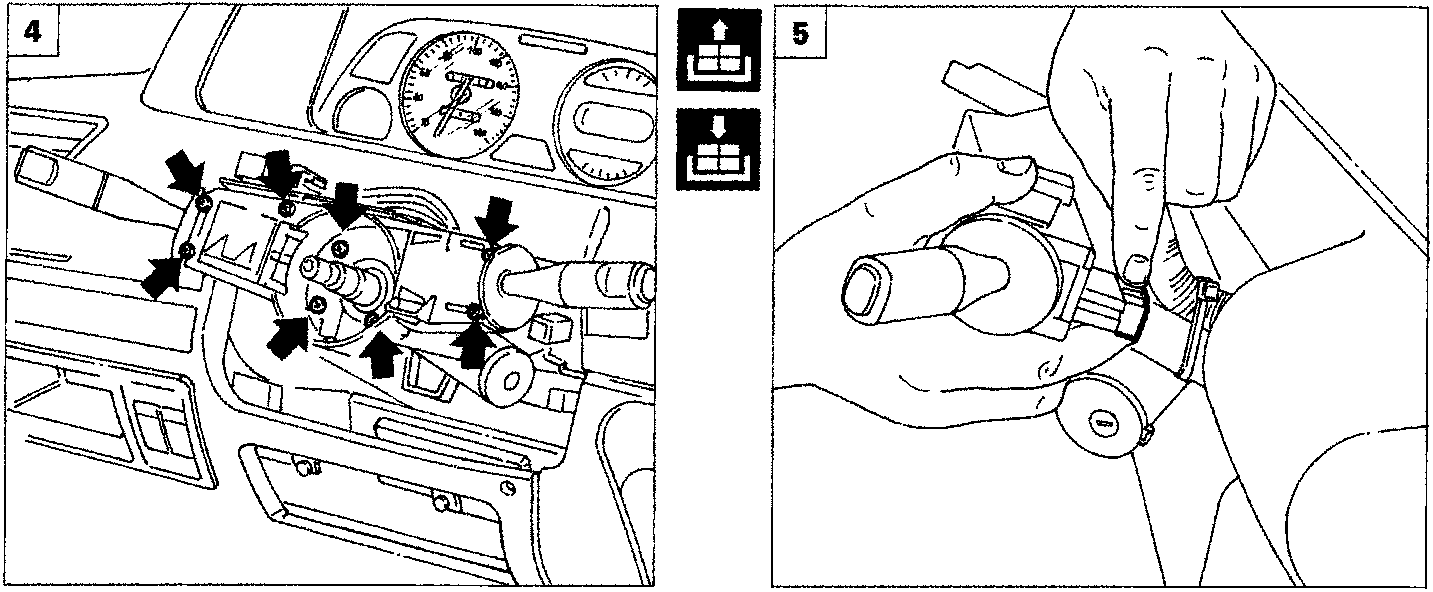

4. Undo the screws securing the stalk unit and connector mounting.
5. Disconnect the supply connectors, then remove the stalk unit and lever assemblies from the car.
