IGNITION SWITCH KEY BLOCK AND STEERING LOCK

Removing-refitting

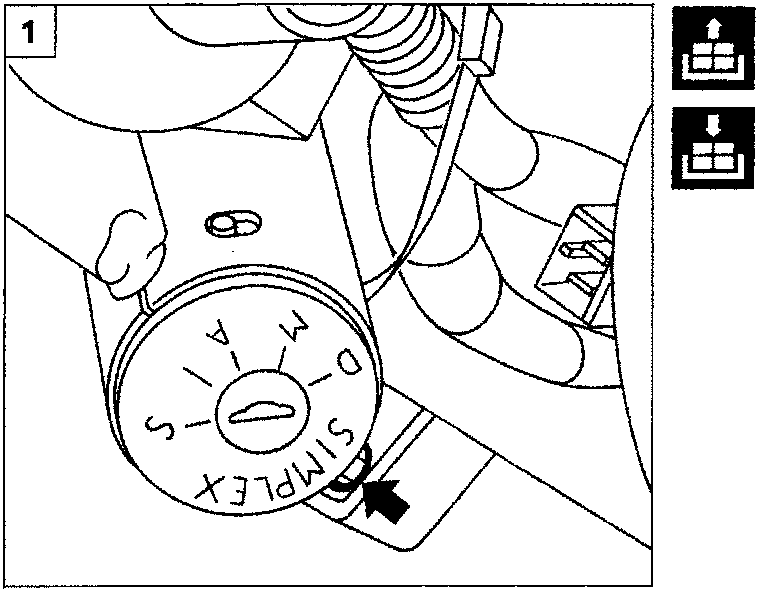

Diagram showing the location of the hexagonal-headed bolt on the ignition switch assembly
  1. Remove the steering column top and bottom shrouds (see preceding page). Undo the hexagonal-headed bolt shown in the figure.

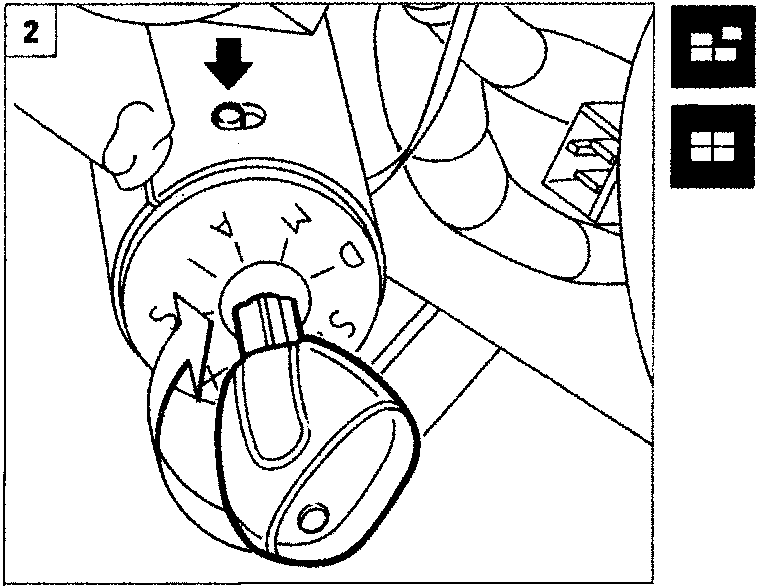

Diagram showing the ignition key inserted into the ignition switch block in the M position
  1. Insert the ignition key in the ignition switch block and turn the ignition ON (M position). Working through the slot, press the retaining lug.

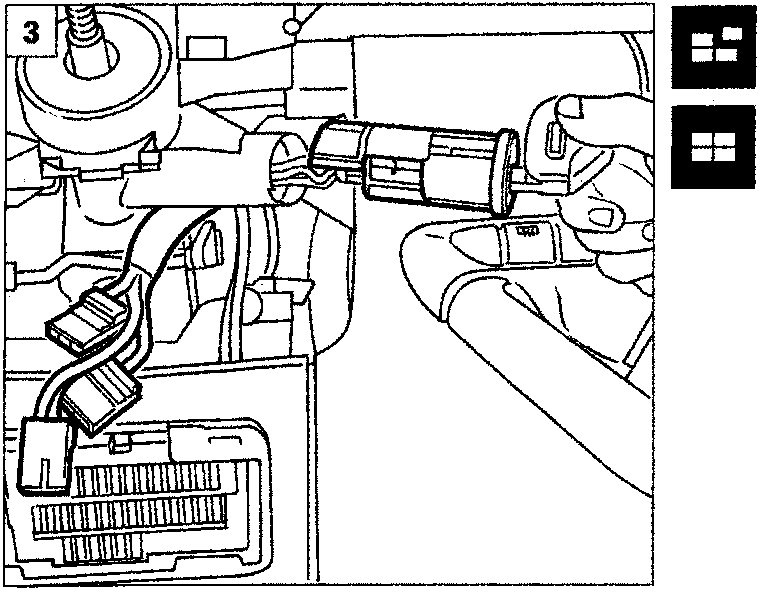

Diagram showing the wiring connections being disconnected and the ignition switch block being withdrawn from its seating
  1. Disconnect the wiring connections and withdraw the block from its seating, taking particular care when passing the wiring and connectors through the sleeve.
