55 Electrical equipmentRemoving/refitting Fiat-CODE aerial
Removing/refitting Fiat-CODE aerial

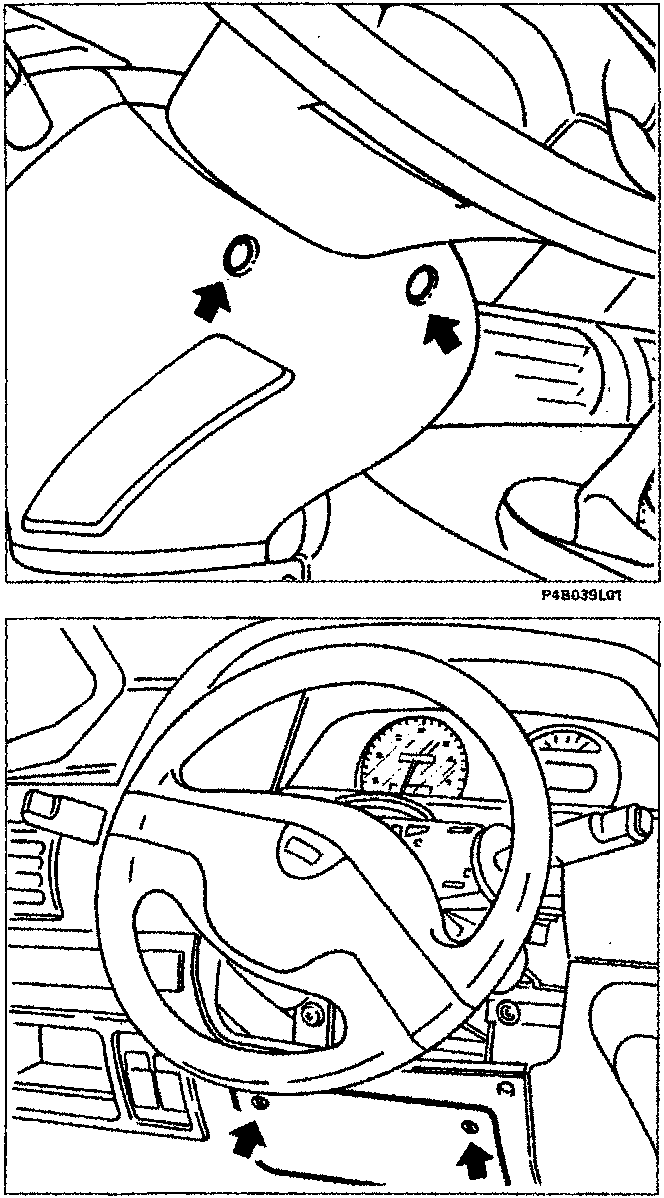

Unscrew both bolts shown in the figure and lift out the upper trim
To gain access to the third lower trim retaining bolt, remove the junction unit protective cover by adjusting both notches shown in the figure to horizontal position

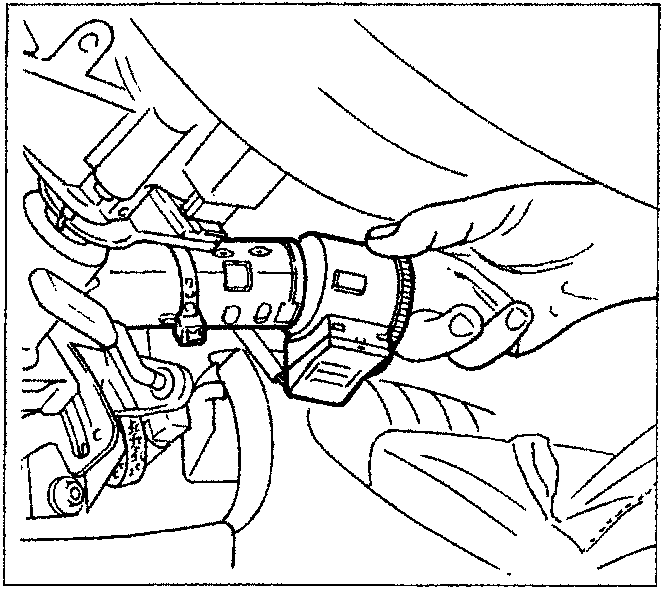

Withdraw the Fiat-CODE aerial from its seat.
