Fiat Scudo Factory Service Manual (1996-2006)06 · 55 Electrical equipment
06 · Electrical

Car immobiliser enablement warning light (page 2 of 2)

Make
Fiat
Model
Scudo Factory Service Manual
Year
1996–2006
Section
Various devices
55 Electrical equipmentCar immobiliser enablement warning light · page 2 of 2
Diagram showing the trim beneath the glove compartment with two studs indicated by arrows

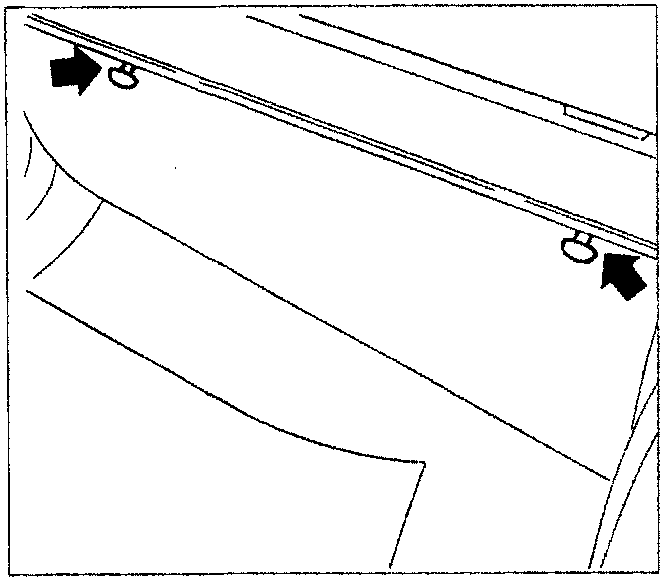

Undo the studs retaining the trim beneath the glove compartment

Diagram showing the inside of the glove compartment with a bolt securing a bracket indicated by an arrow

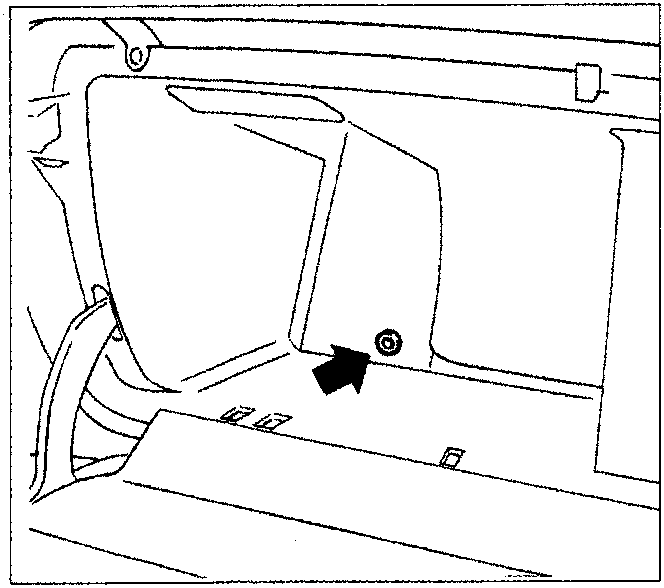

Uscrew the bolt securing the bracket located in the glove compartment

Diagram showing the bracket being withdrawn from the vehicle, with the Fiat-CODE control unit attached and wiring harnesses visible

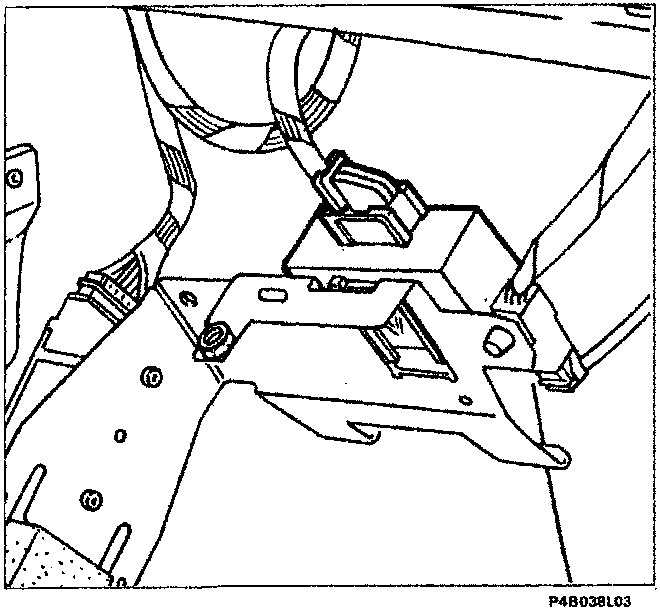

Withdraw the bracket with the Fiat-CODE control unit
