ELECTRONIC IMMOBILISER (Fiat-CODE)

ELECTRONIC IMMOBILISER (Fiat-CODE)

This electronic code device replaces the coded immobiliser keypad. The system consists of the following components:

• Fiat-CODE electronic control unit
• Ignition key with specific car access code (transponder)
• Transponder receiver (aerial)
• Card contining access code Fiat-CODE memory
• Car start-up enablement warning light

Because the system is fitted with a tester connector, any faults in the system can be detected by connecting a tester.

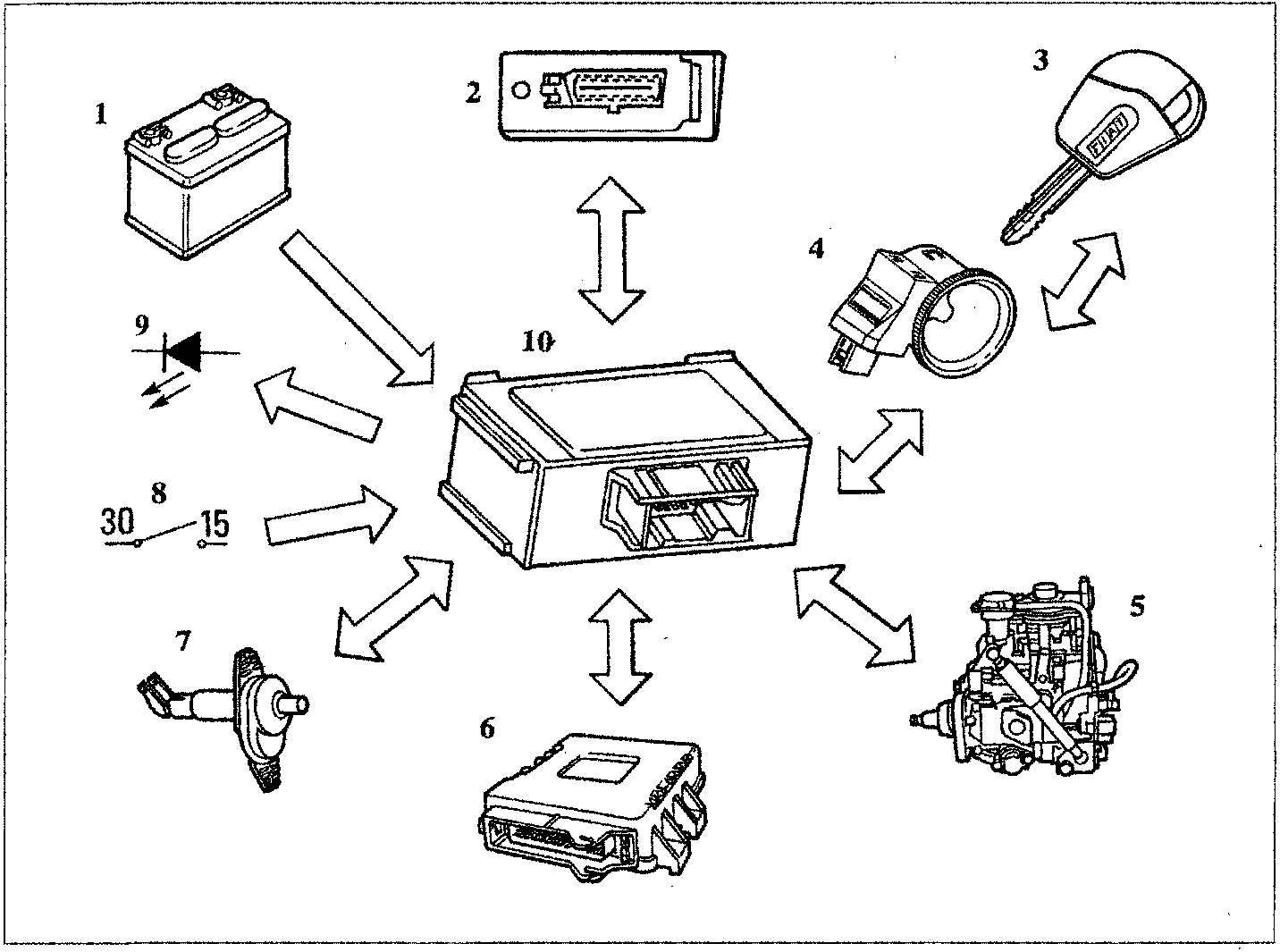

Diagram showing Fiat-CODE control unit connections

Key to components:

1. Positive supplied directly by battery (+30)
2. Diagnostic socket
3. Key with transponder
4. Fiat-CODE aerial on ignition switch
5. Diesel pump control unit
6. Injection/ignition ECU
7. Car interior courtesy light button doors
8. Key-operated positive (+15)
9. Car start-up enablement warning light
10. Fiat-CODE electronic control unit
