55 Electrical equipmentView of Fiat-CODE control unit

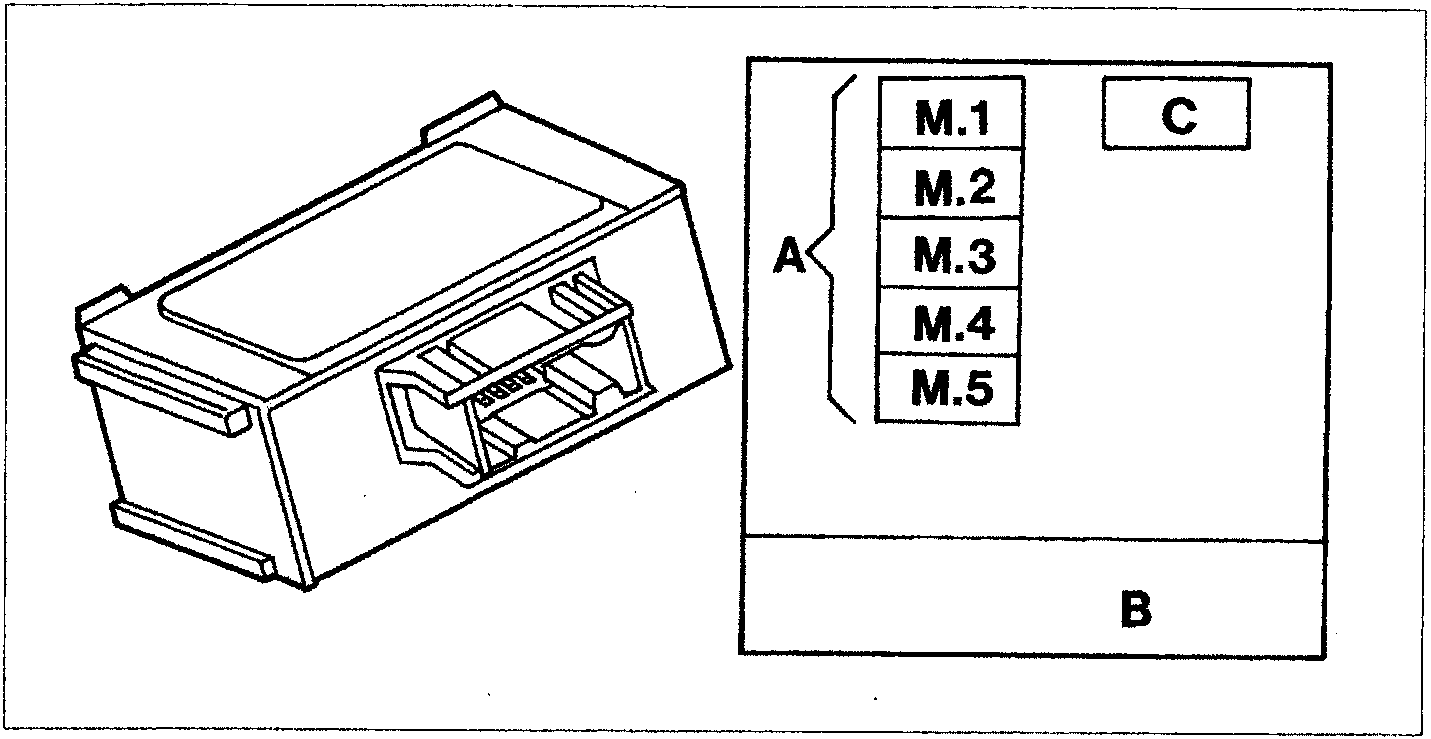

View of Fiat-CODE control unit
A. Ignition key transponder code storage area (five).
B. User card access code storage area
C. Injection control unit code storage area (fuel pump control unit for diesel versions).
Ignition key
The ignition key contains a transponder.
The Fiat-CODE control unit can store five codes containing a transponder code.
Each key has a different transponder code.
NOTE All transponder storage operations can be carried out only by connecting a tester to the appropriate tester socket.

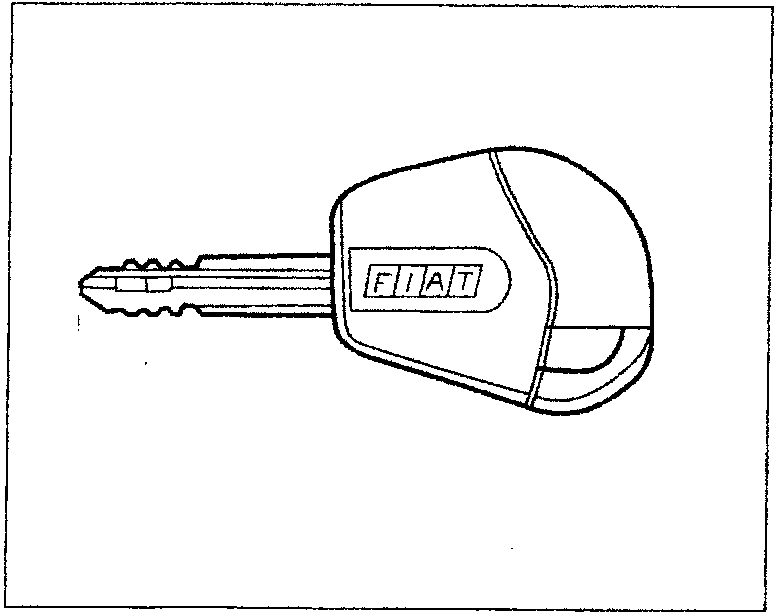

Ignition key with transponder
