Reversing lights switch

REVERSING LIGHTS SWITCH

Removing-refitting

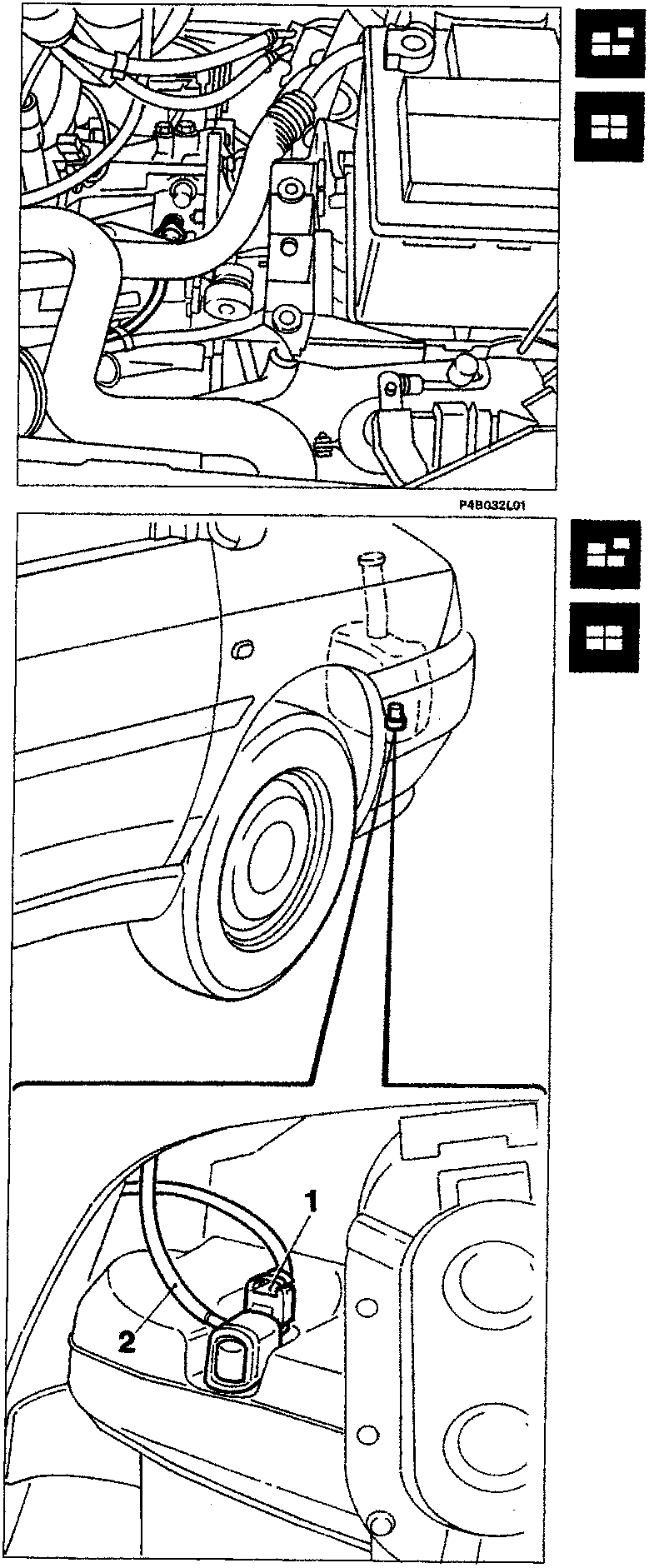

To access the switch:

• remove the air cleaner complete with pipes (see preceding page), then disconnect the connector and unscrew the switch using the appropriate wrench.

WINDSCREEN WIPER FLUID PUMP

Removing-refitting

• Place the car on ramps and raise it, to access the windscreen washer fluid reservoir. Disconnect the connector (1) and withdraw the delivery pipe (2), then remove the pump from its seating, using a screwdriver as a lever.
