55 Electrical equipmentHandbrake on warning light control button
Diagram showing the location of the handbrake lever and the screw securing its cover, with an arrow pointing to the screw.

HANDBRAKE ON WARNING LIGHT CONTROL BUTTON

Removing-refitting

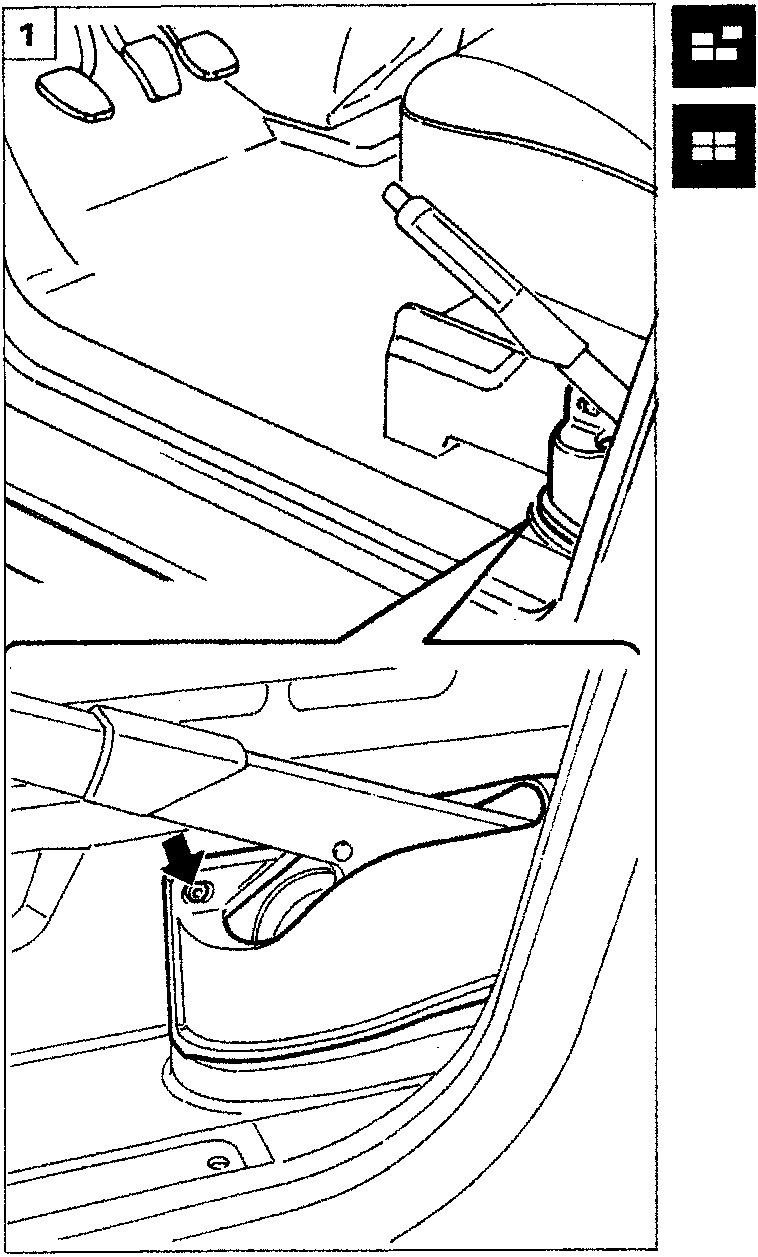

  1. Undo the screw (arrowed) and remove the handbrake lever cover.
  2. Remove the protection secured to the base of the seat, raise the floor trim so as to reach the button and disconnect the connector.

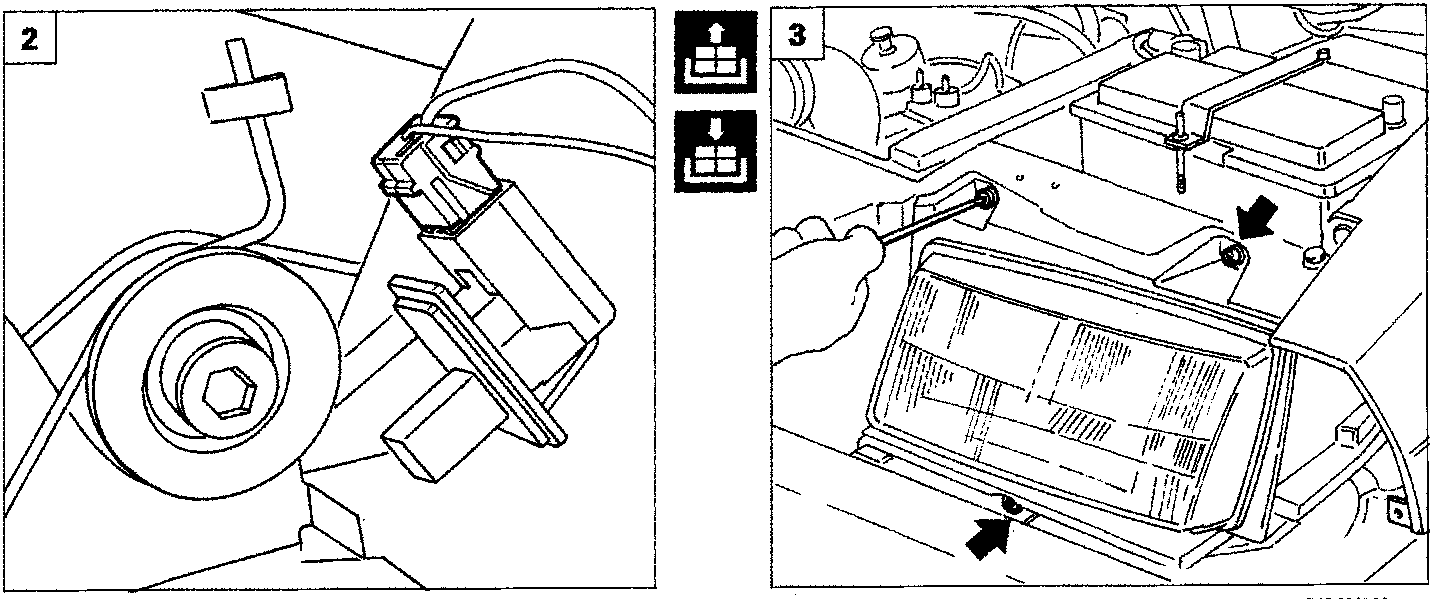

  3. Withdraw the button by releasing the retaining lug shown in the figure.
Close-up diagram of the electrical connector for the handbrake warning light control button.
