55 Electrical equipmentControl units
Control units – diagram from the 55 Electrical equipment chapter of the Fiat Scudo Factory Service Manual (1996-2006) factory manual.
Control units
Scudo 2003 Update

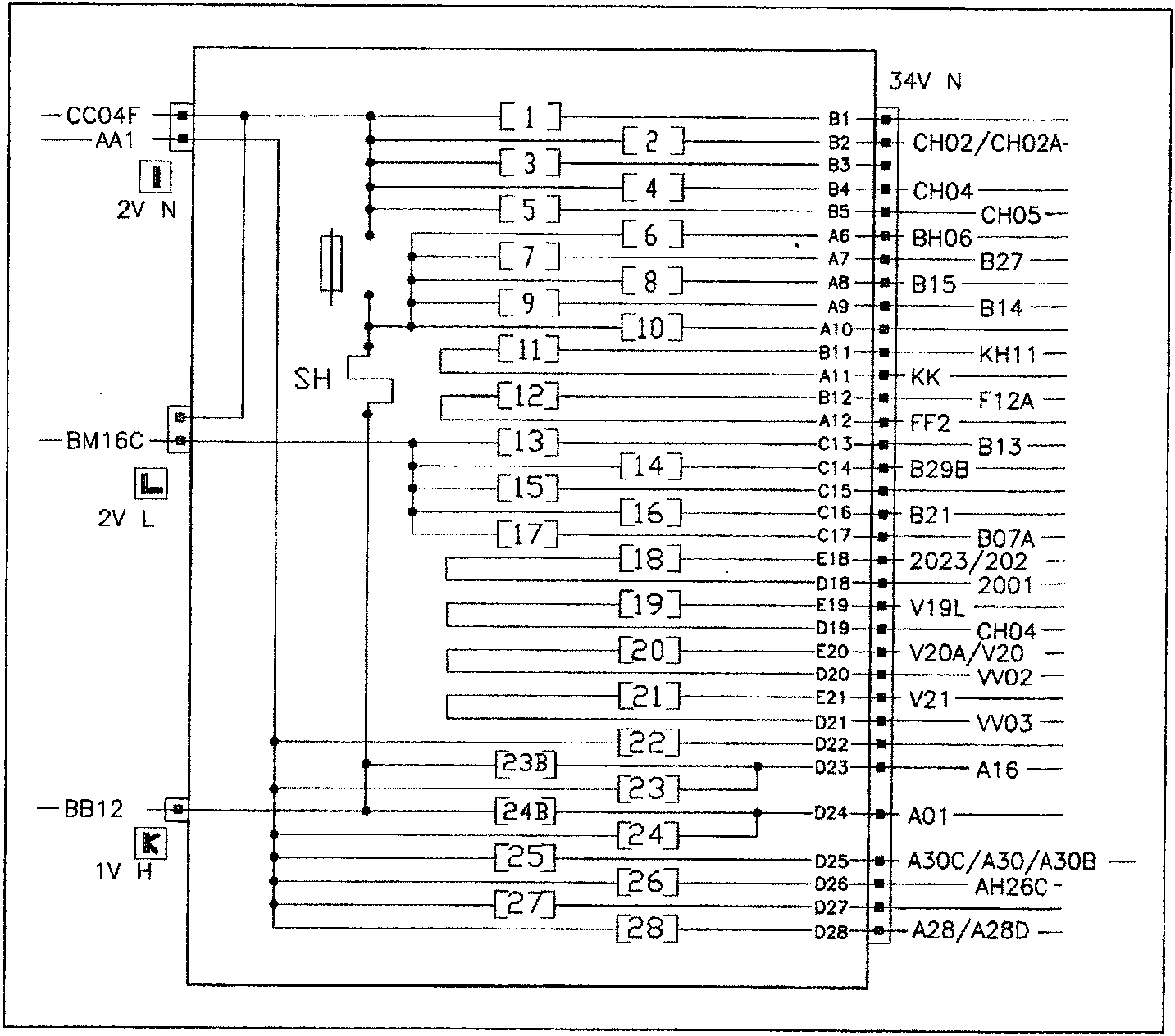

ELECTRICAL SCHEMATIC DIAGRAM OF THE 28-FUSE BOX IN THE CABIN (BH28)
![Electrical schematic diagram of the 28-fuse box in the cabin (BH28), showing fuse positions [1] through [28], connector labels B1-D28, and associated circuit identifiers such as CH02/CH02A, BH06, V19L, A30C/A30/A30B, and power inputs CC04F, AA1, BM16C, BB12.](/fiat/scudo-1996-2006/assets/page_1411_fig01.png)
