55 Electrical equipmentDiagnostic socket
DIAGNOSTIC SOCKET

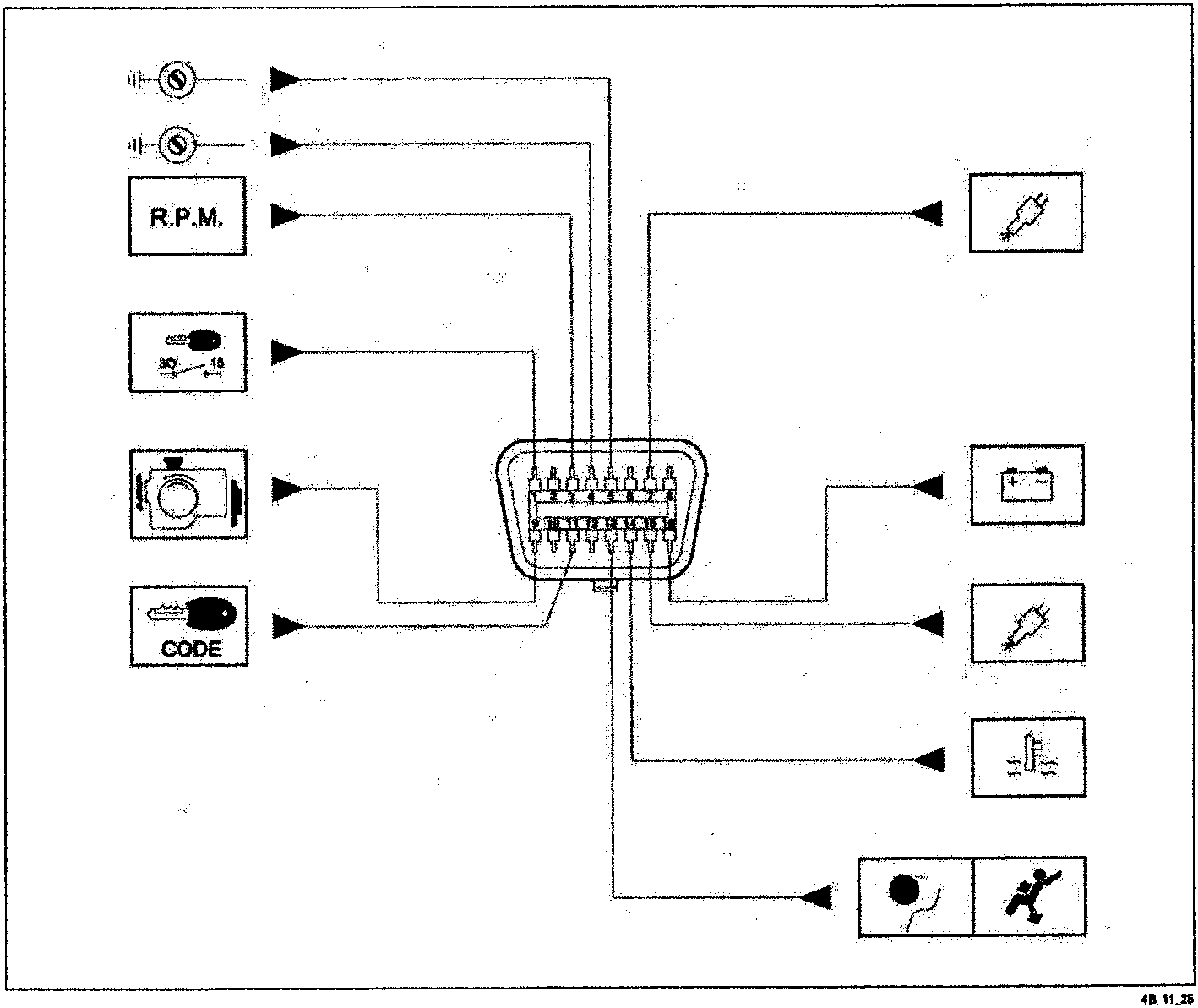

Basic wiring diagram
4B 11.26
Diagnostics socket pinout legend
- Power supply from ignition switch
- Available
- Engine speed signal
- Engine earth
- Signal earth
- Available
- K line for electronic injection system
- Available
- Rotating engine signal from alternator (+15)
- Available
- Fiat CODE device
- Available
- Air-Bag/pretensioner device line
- Engine coolant temperature
- L line for electronic injection system
- Power supply from battery (+30)
