Junction units (2002 update) › BF01

55 Electrical equipmentBF01

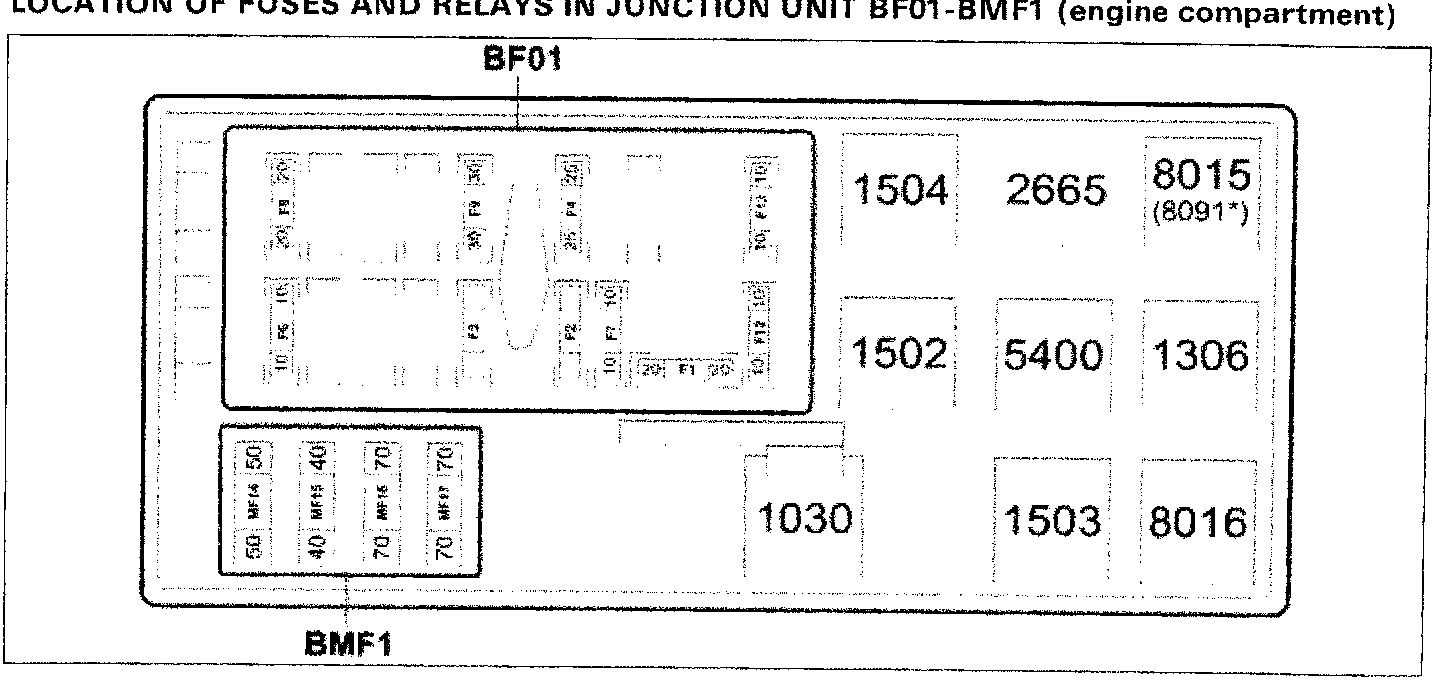

BF01

Fuse	Value	CIRCUITS PROTECTED
20A	Fuel pump motor
10A	Right dipped headlamp
10A	Left dippe headlamp
25A	Headlamp washers
10A	FIAT CODE/Engine injection
10A	Heated Lambda sensor, diesel filter heater, EGR, diesel pump turbo pressure adjustment
20A	Diagnostic socket/Tow hook
30A	Engine cooling
20A	Additional engine heater (1997 JTD)
10A	Left main beam headlamp
10A	Right main beam headlamp

BMF1

Fuse	Value	CIRCUITS PROTECTED
MF14	50A	Engine cooling
MF15	40A	Heater/Air conditioning
MF16	70A	Junction unit BF00 (dashboard), ignition switch
MF17	70A	Steering column switch unit/Ignition discharge relay

* Only valid for 1997 JTD versions
