55 Electrical equipmentJunction units · page 1 of 2
Junction units
POWER FUSE BOX BMF2
This component, located in the left front of the vehicle, allows a series of circuits to be protected, namely:
- anti-lock brakes (A.B.S.),
- injection system for the 1997 JTD and 1997 16v CF3 engine types,
- engine cooling circuit for the 1997 16v CF3 engine type,
- and the automatic transmission (1997 16v CF3).
| Fuse | Amp | Fuel feed system | Protection | Connector | Pin |
|---|---|---|---|---|---|
| MF1A | 20A | +30 battery | 1997JTD/1997 16v engine injection system | A (2-way blue) | 1 |
| MF2A | 30A | +30 battery | 1007 JTD/1997 16v engine injection system - Automatic transmission control unit | A (2-way blue) | 2 |
| MF3A | 30A | +30 battery | Engine cooling 1997 16v | C (1-way yellow) | 1 |
| MF4A | 60A | +30 battery | Anti-lock brakes (A.B.S.) | B (1-way green) | 1 |

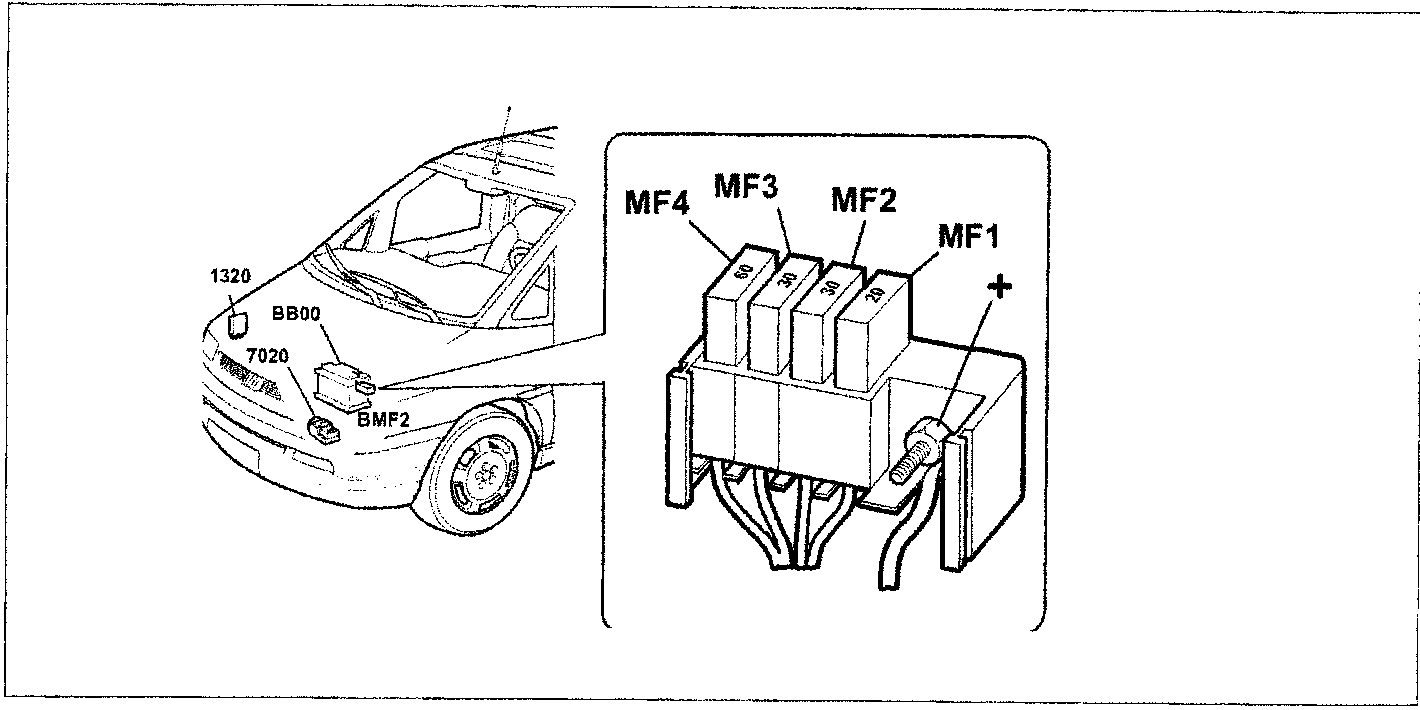

Location on vehicle of power fuse box BMF2
Component key
- BB00: Battery.
- 1320: Injection/ignition control unit (1997 JTD/ 1997 16V CF3).
- 7020: Anti-lock brakes electronic control unit (A.B.S.).
