55 Electrical equipmentDiagnostic socket principle wiring diagram

Diagnostic socket principle wiring diagram

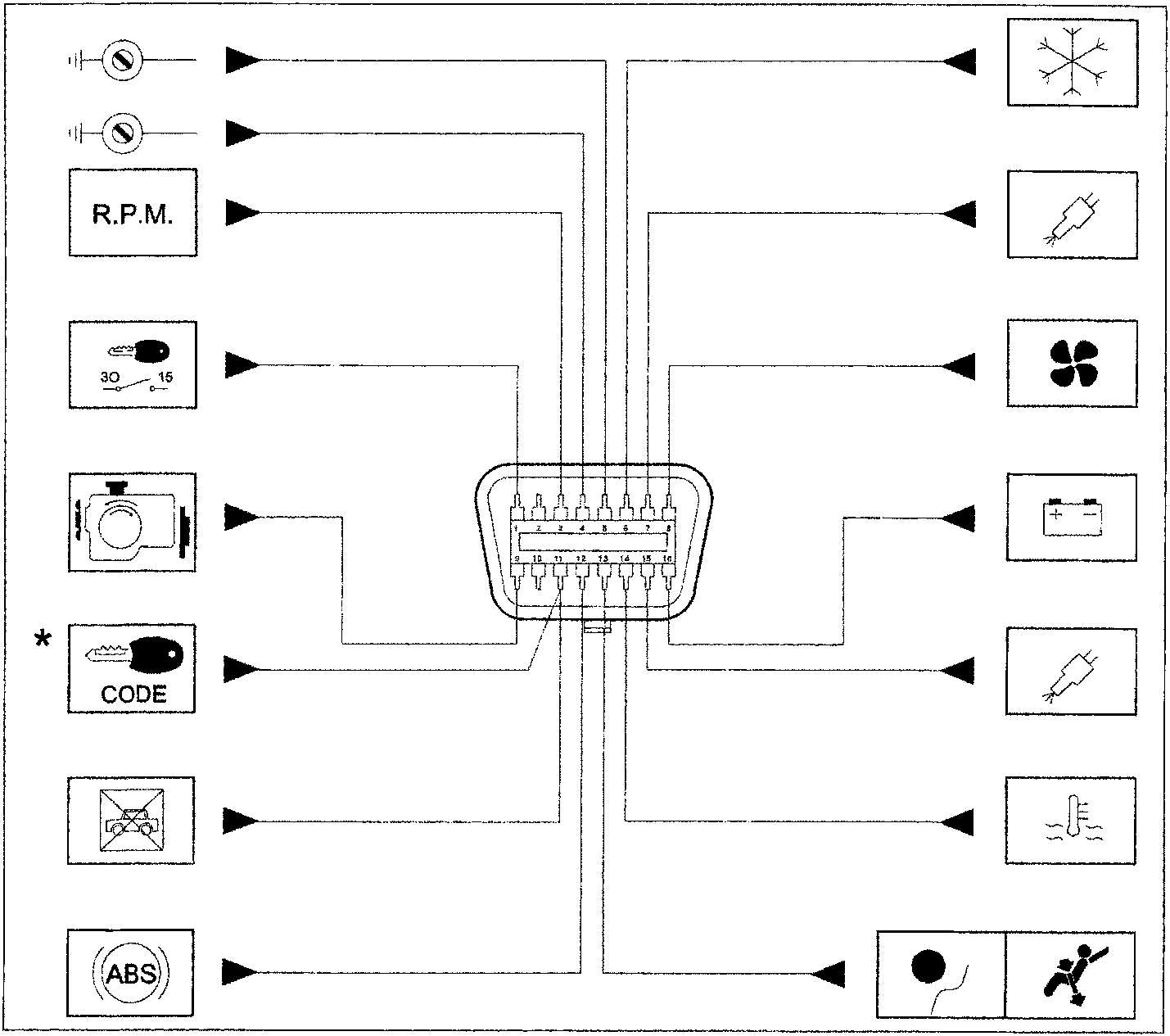

Principle wiring diagram of the diagnostic socket showing connections to various vehicle systems including R.P.M., CODE, ABS, battery, and sensors.

Diagnostic socket key

  1. Supply from ignition switch.
  2. Spare.
  3. Engine rpm signal.
  4. Engine earth.
  5. Signal earth.
  6. Spare.
  7. Electronic injection system line K.
  8. Engine cooling system signal.
  9. Engine rotation signal from alternator (+15).
  10. Spare.
  11. Passenger compartment protection line (C.P.H.).
  12. Anti-lock brakes line (A.B.S.) (*)
  13. Air-Bag/pretensioners line.
  14. Engine coolant temperature.
  15. Electronic injection system line L.
  16. Supply from battery (+30).

(*) Fiat-CODE (for versions without C.P.H.)
