Sliding side door › Dismantling - reassembling lower sliding guide
70 BodyworkDismantling - reassembling lower sliding guide

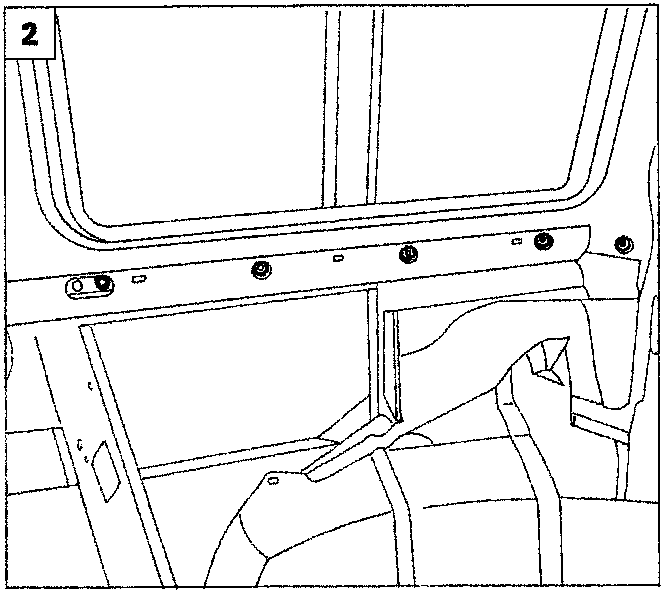

Diagram showing the centre supporting bracket for the side door with two circled callout points.

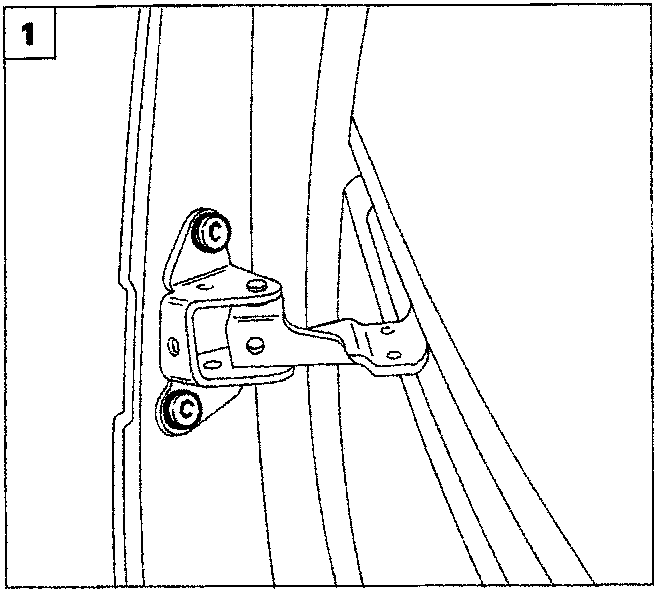

Diagram showing the sliding guide and its fixings along the vehicle body.

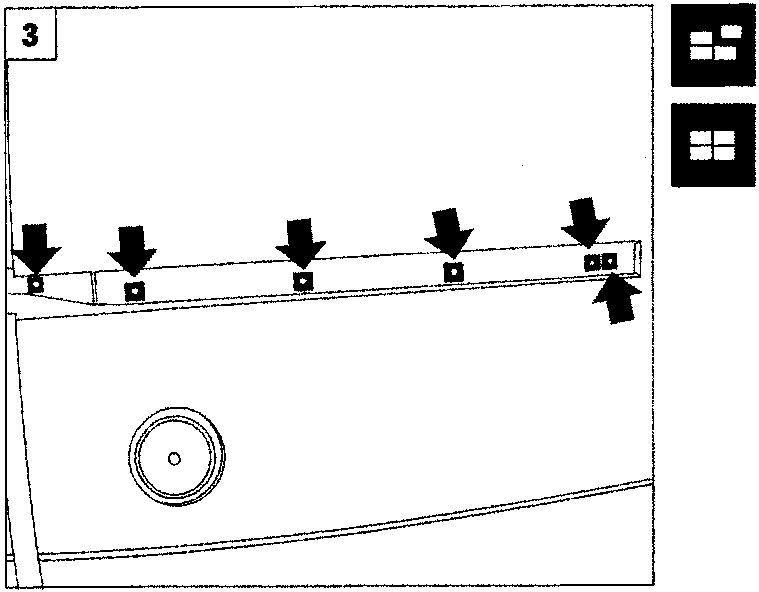

Diagram of the lower sliding guide with arrows indicating the direction of removal for the fixings.
  1. undo the bolts fixing the centre supporting bracket for the side door;
  2. remove the sliding guide acting on the fixings illustrated.

NOTE When refitting renew the sealant by the sliding guide fixings on the bodyshell.

Dismantling - reassembling lower sliding guide

  1. Position the vehicle on a lift and remove the stop buffer from the sliding guide;
  2. undo the bolts fixing the supporting bracket from the door, then extract the supporting bracket;

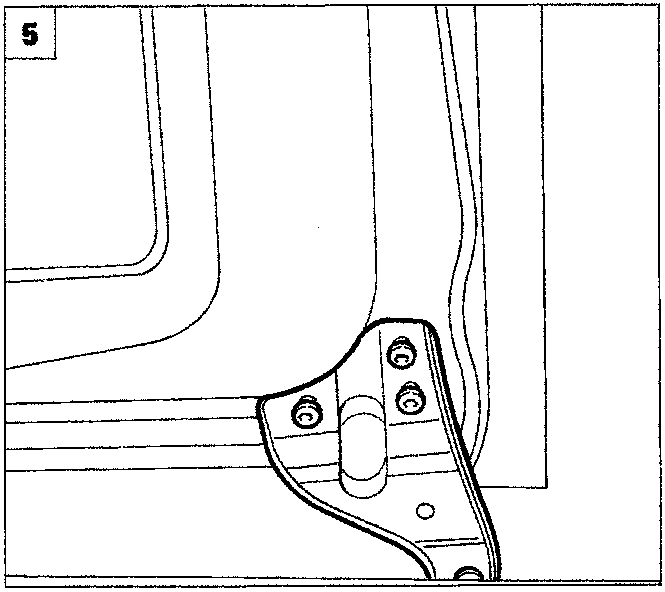

Diagram showing the stop buffer being removed from the lower sliding guide.

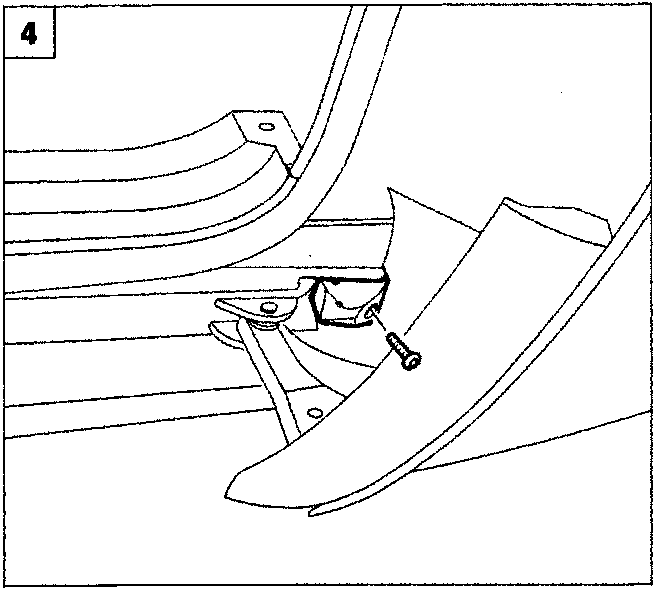

Diagram showing the supporting bracket being extracted from the door.
