Removing - refitting panel

REMOVING - REFITTING PANEL

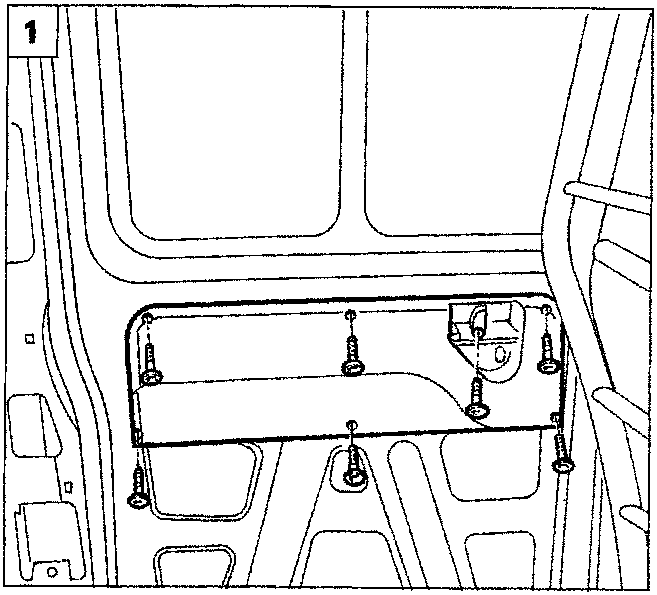

1. Undo the bolts fixing the panel to the door, then remove it.

REMOVING - REFITTING OUTER HANDLE

• Remove the door panel as described previously.

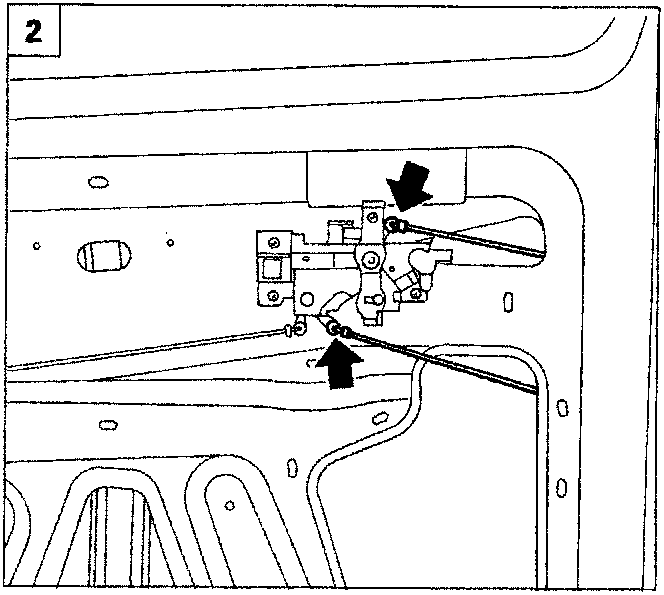

2. Release the rods from the lock operating device.

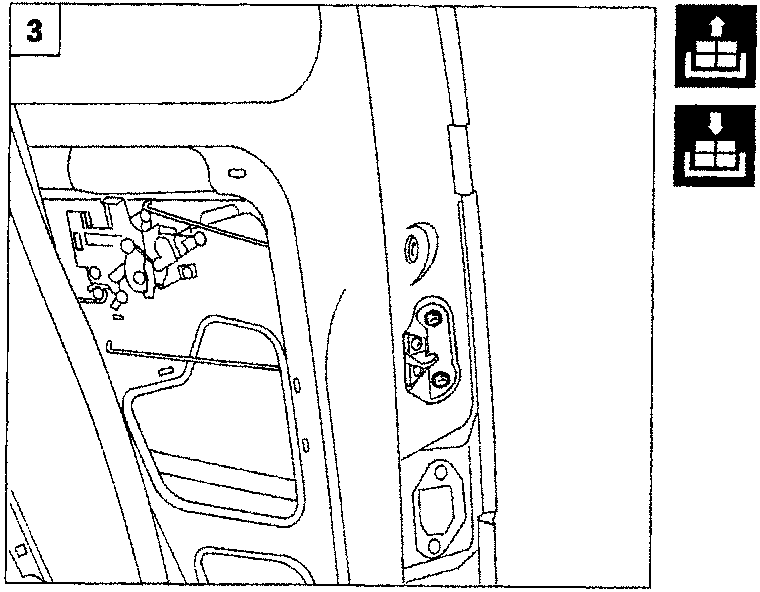

3. undo the fixing bolts, then remove the outer handle from the door.

NOTE When replacing the lock barrel, see the removal of the front door lock barrel illustrated in the Ulysse service manual in section 70 Bodywork.

REMOVING - REFITTING LOCK

• Remove the door panel as described previously.

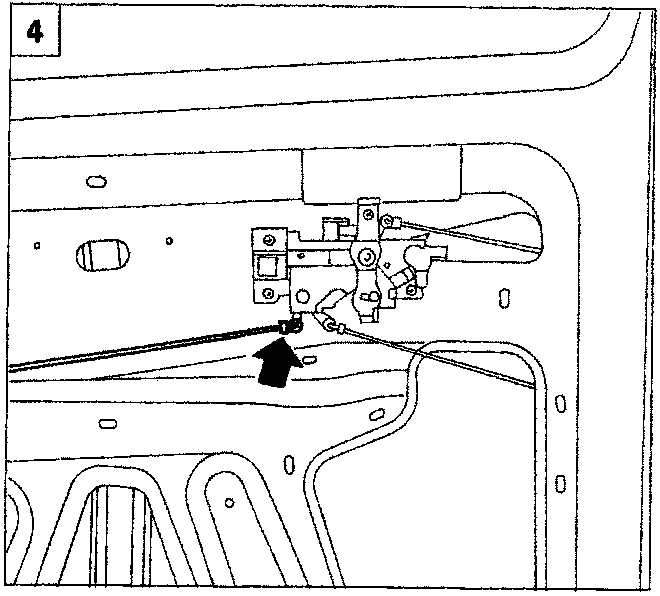

4. Disconnect the rod shown in the diagram;
