Removing - refitting door window

REMOVING - REFITTING DOOR WINDOW

• Remove the door panel as described previously.

NOTE Place the window opening handle in position and bring the window to the midway travel position.

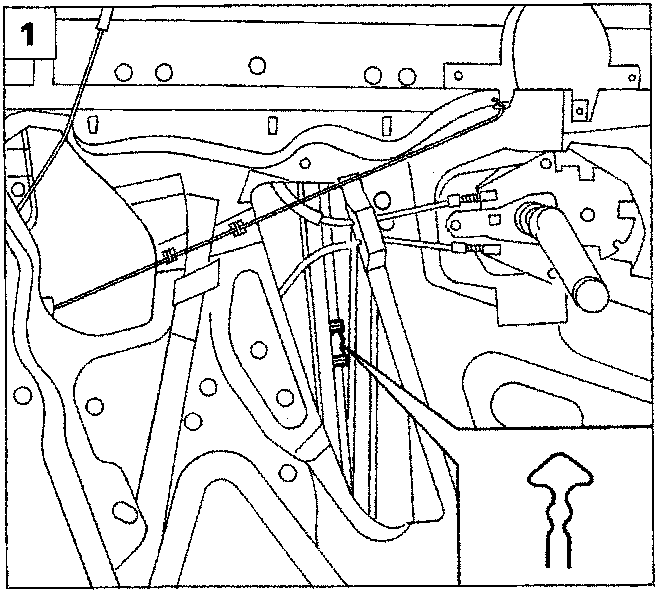

1. Release the clip fixing the window to the window opening device;

NOTE Place the window in the end of travel position at the bottom.

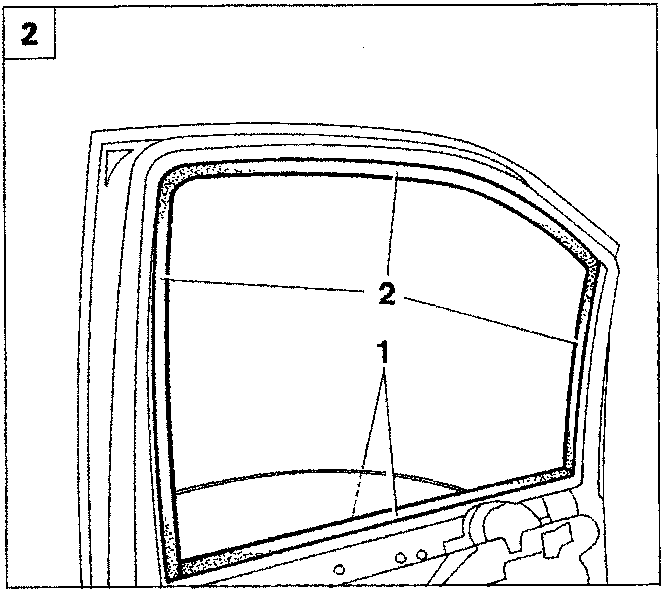

2. remove the door window housing trims, starting with the glass scraper trim (1) and then the perimeter trim (2);

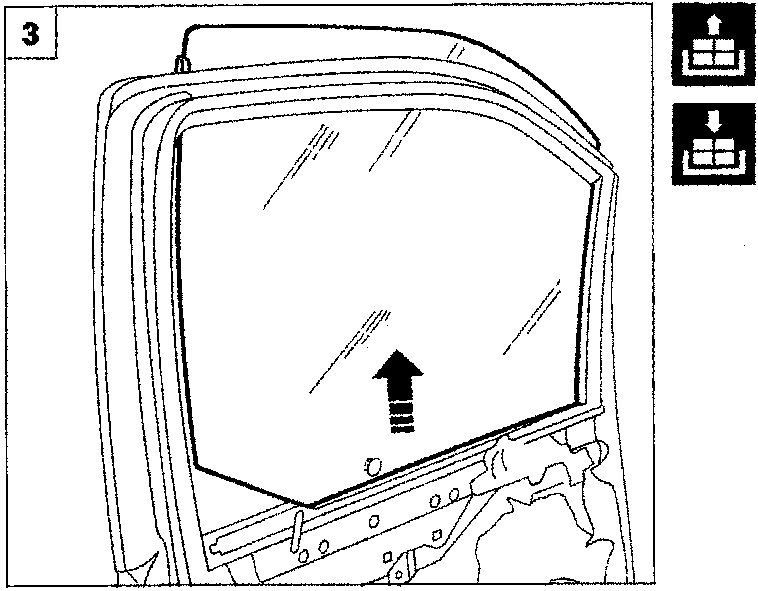

3. remove the window from the housing as illustrated in the diagram.

NOTE The clip previously removed at the start of the procedure should be positioned in the housing before carrying out the operations of removing the window.

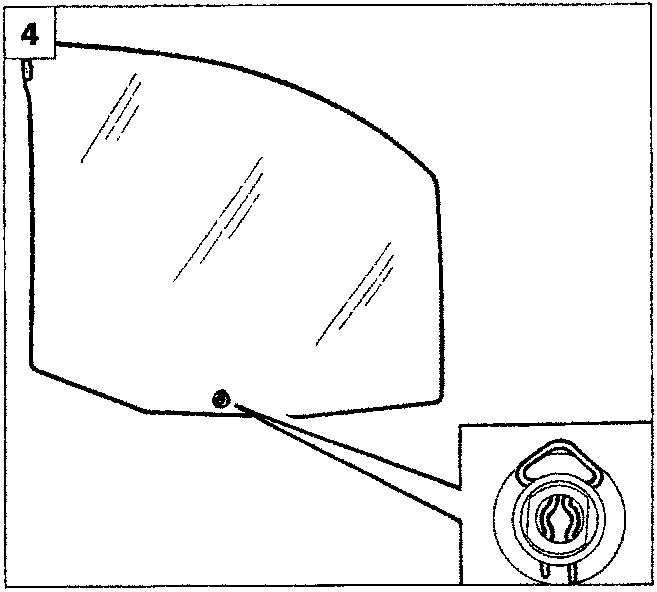

4. View of the window removed from the housing and the position of the clip
