Front door › Door opening control lever
70 BodyworkDoor opening control lever
Diagram showing the internal components of a car door, specifically the upper section with bolts and linkages (P4B003M01)
Diagram showing the internal mechanism of a car door, focusing on the window regulator guide and linkage (P4B003M02)

P4B003M01

P4B003M02

Diagram showing the interior door handle and lock mechanism area (P4B003M03)

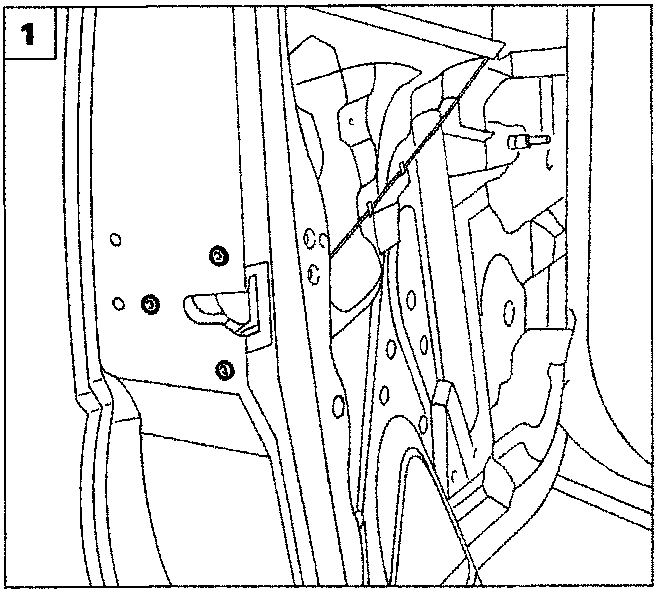

  1. undo the bolts fixing the lock to the door;

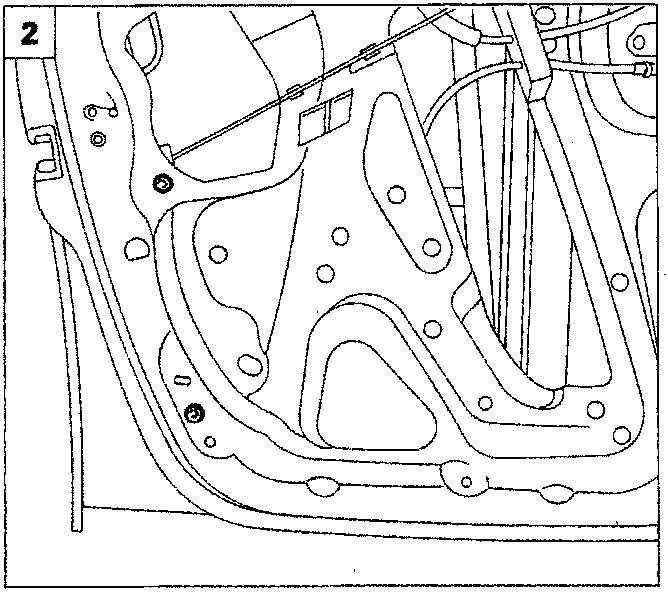

  2. undo the nuts fixing the guide for the window opening device;

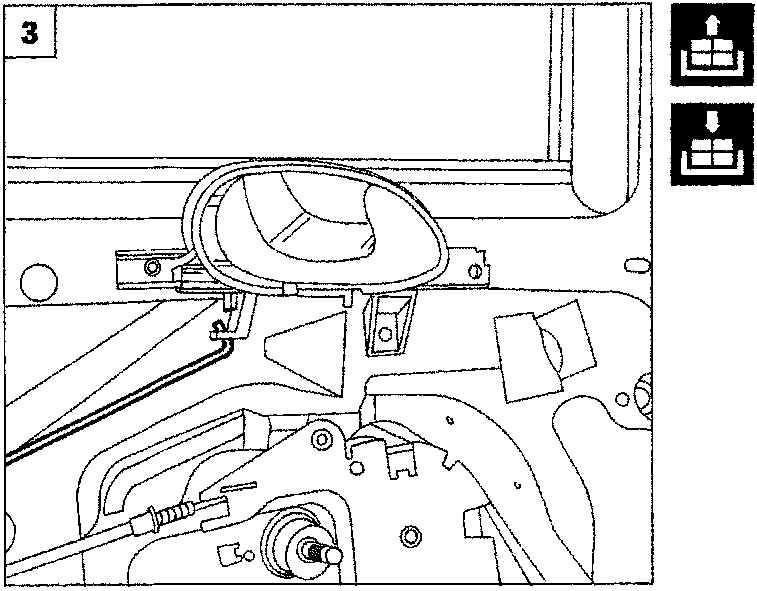

  3. release the rod for the door opening internal lever from the bands, disconnect it from the actual lever, then remove the door lock removing it through the centre slit in the frame.

DOOR OPENING CONTROL LEVER

Removing

Remove the door panel as shown previously.

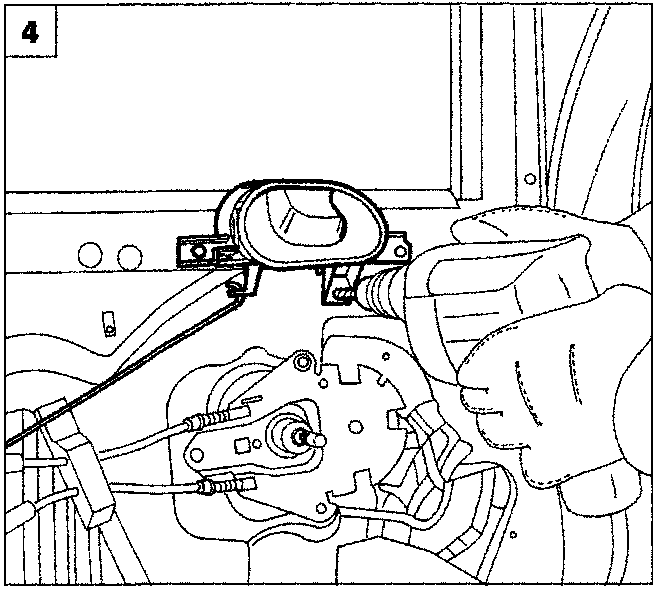

  1. Release the rod from the lock and remove the door opening lever removing the fixing rivets.
Diagram showing a hand using a tool to remove rivets from the door opening control lever (P4B003M04)

P4B003M03

P4B003M04
